Checking the hydraulic oil level
1. Park the vehicle on firm, level, and horizontal ground.
2. Position the boom straight ahead at the center of the vehicle (see
figure).
3. Lower the boom and the stabilizer blade to the ground.
4. Stop the engine
5. Operate the control lever repeatedly to release the pressure in the
hydraulic system.
6. Remove the starting key and carry it with you.
7. Sight glass A is located in the engine compartment.
8. Check the oil level on sight glass A.
➥ If the engine is warm, the oil level must be approximately at the
middle of sight glass A.
9. Add hydraulic oil if the oil level is below this mark.

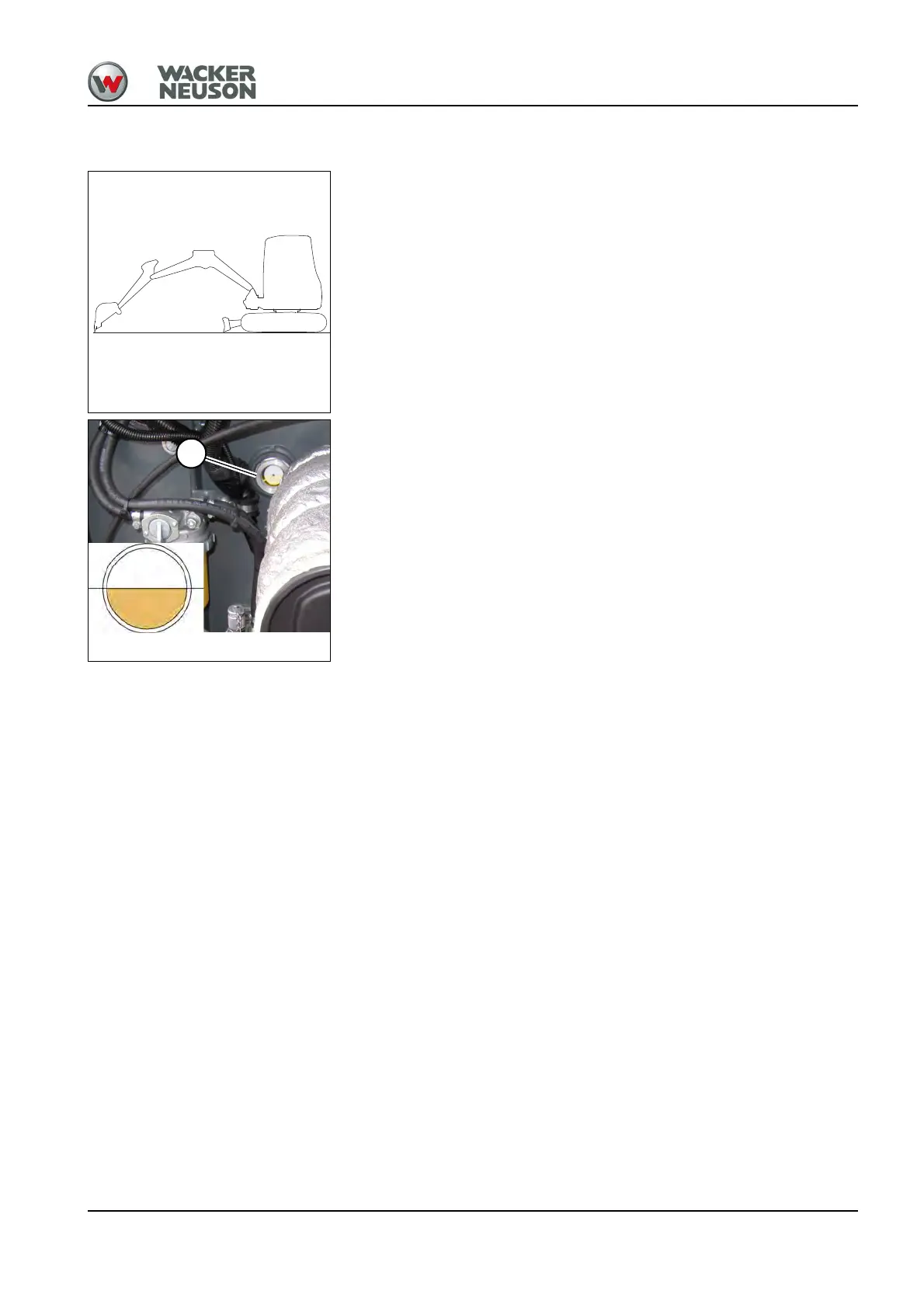

Fig. 254 (symbolic representation)
