Wacker Neuson EZ26 - Additional Control Circuits

BA EZ26 en/us* 1.0 * EZ26_01_510.fm 5-25
Operation 5

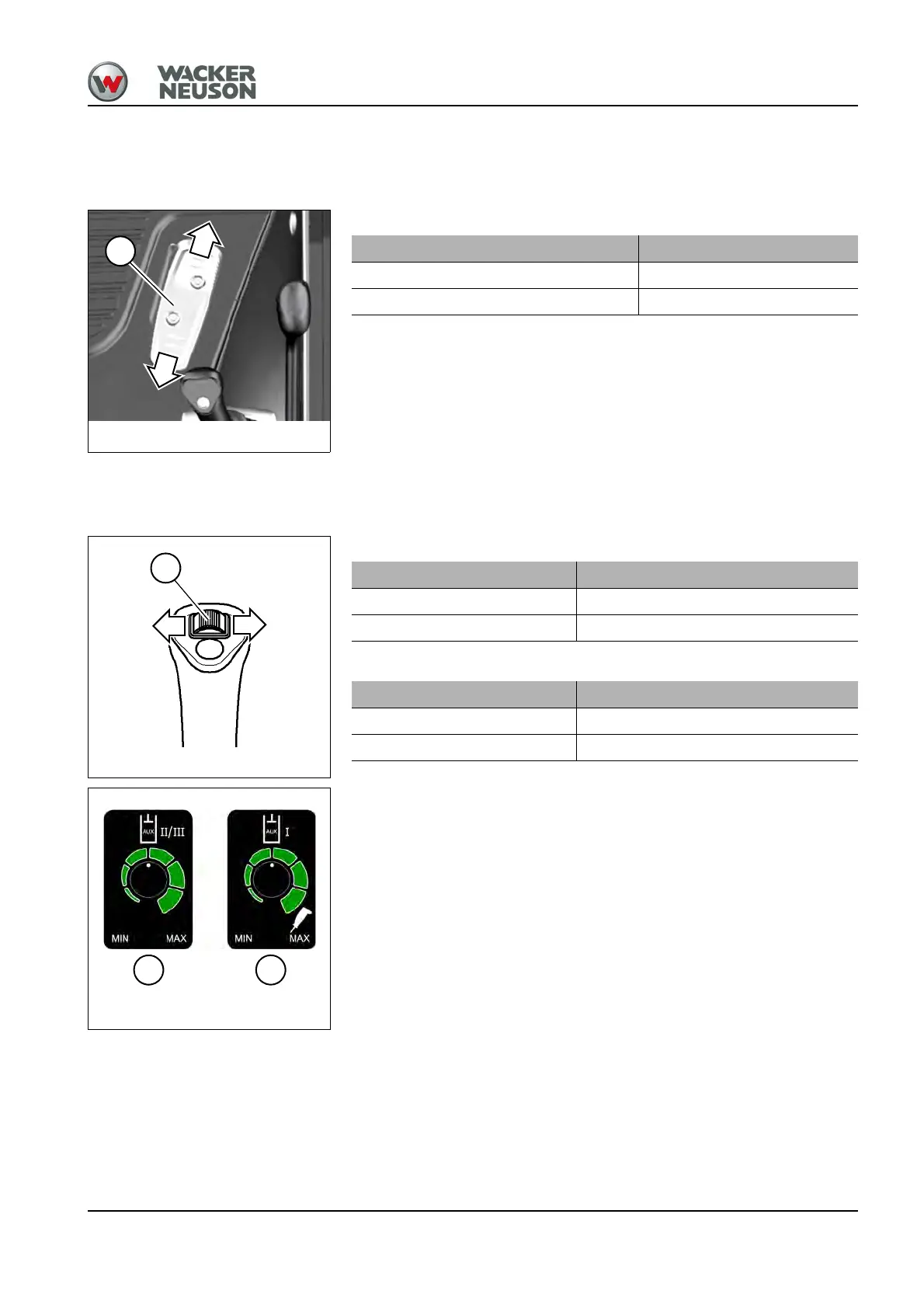

5.10 Additional control circuits
AUX I
The operation occurs with pedal A.
AUX I/II/III (proportional controls)
The proportional controls allow to continuously adjust the oil flow for the
attachment.
Set the desired oil flow with the rotary controls B (AUX II/AUX III)
or C (AUX I).
Fig. 151Fig. 151
A
Oil flow Position
To the line on the left Actuate the pedal A in the rear
To the line on the right Press the pedal A forward
Fig. 152:
A
Function Operation
AUX I Control lever on the right
AUX II/III Control lever on the left
Oil flow Position
To the line on the left Press rocker switch A to the left
To the line on the right Press rocker switch A to the right
Fig. 153:
B C
