RT / RTx Lifting and Transporting
3.3 Tying Down and Transporting the Machine
Requirements
■ Engine shut down
■ Chocks in place
■ Steel ropes or chains
Procedure
Perform the procedure below to tie down the machine.
1. Make sure that the transport vehicle is capable of handling the weight and size
of the machine. See Technical Data for dimensions and operating weight.

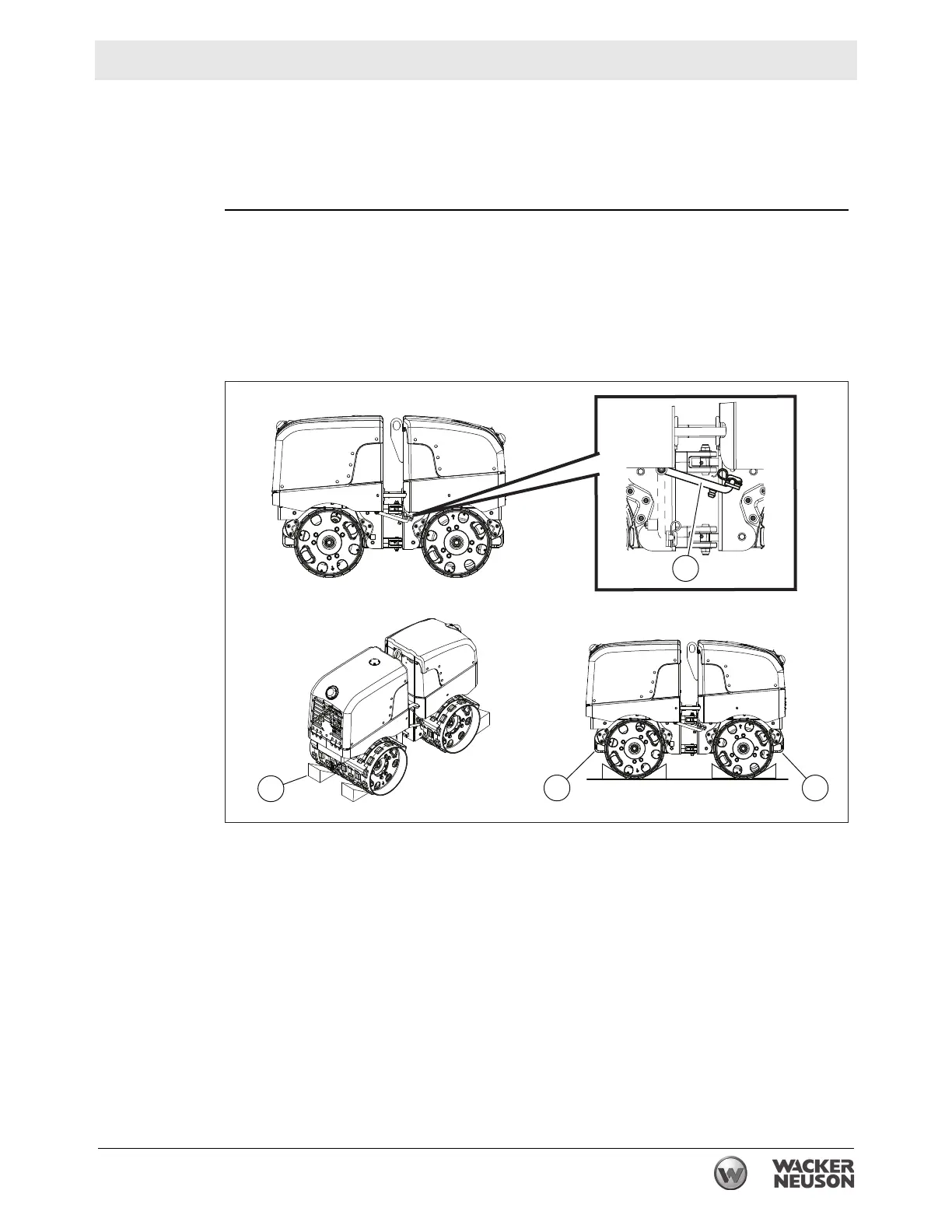

2. Lock the front and rear halves of the machine using the articulated joint locking
bar (a).
3. Place chocks (b) in front of and behind each drum.
4. Attach steel ropes or chains to the front and rear tie downs (c).
NOTICE: Only use the tie downs to secure the machine. Do not use any other part
of the roller to tie down the machine, as severe damage to the machine may occur.
5. Attach the other end of the steel ropes or chains to the transport vehicle.
