RT / RTx Operation
4.7 Accessing the Engine or Hydraulic Component Compartments
To access the engine or hydraulic component compartments:

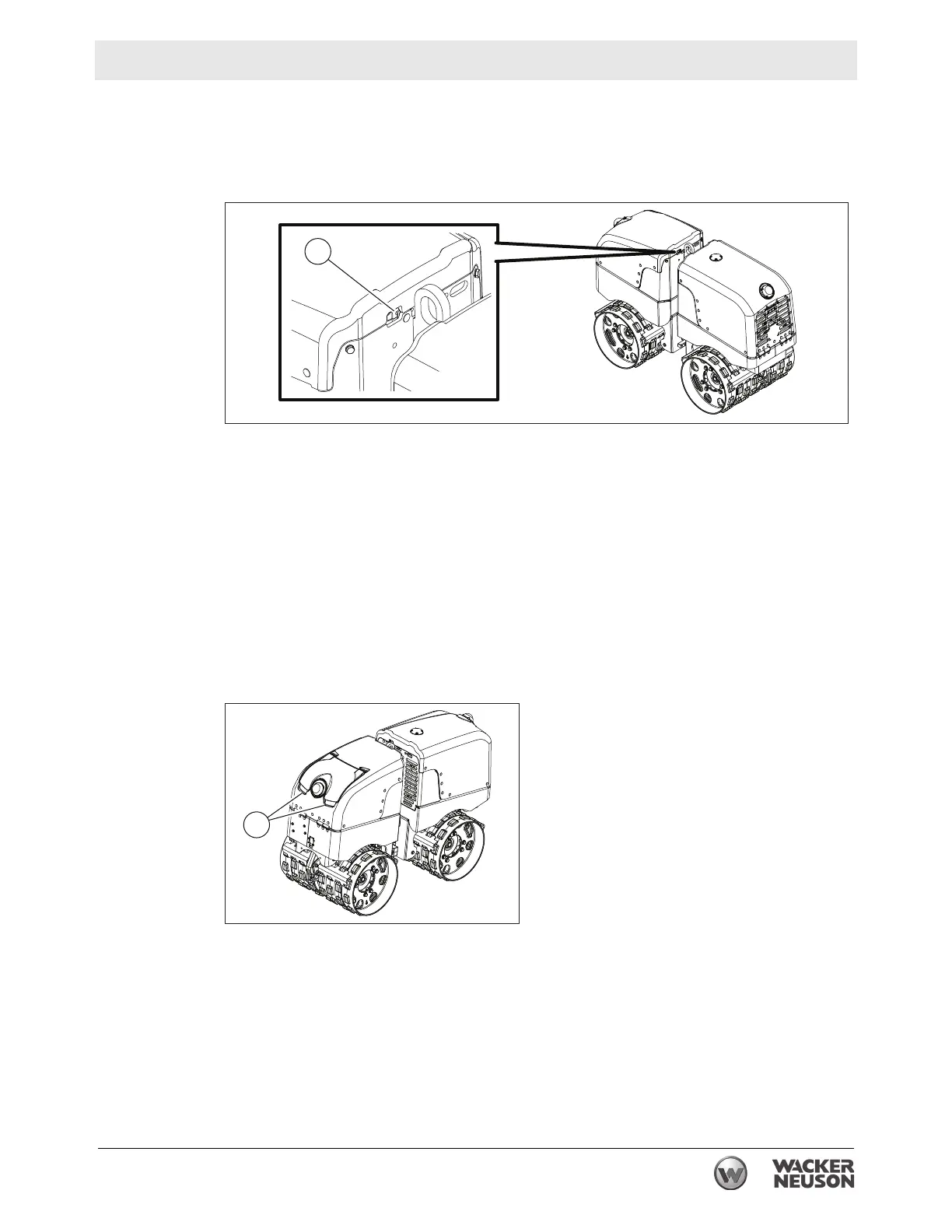

1. Reach into the slot in the cover and press the latch release (a) until the latch
opens.
2. Raise hinged cover and place in the open position.
To close:
3. Position cover over the compartment, near the closed position.
4. Being careful not to pinch fingers or hands, release cover and allow weight of
cover to engage latch.
4.8 Accessing the Control Compartment
Procedure
Perform the procedure below to access the control compartment.
1. To open, pull up on both ends of the control compartment door (a).
2. To close, push the control compartment door down into the closed position until
the door is secured.
wc_gr012176
a
