Connecting cable to EPG-SPRINT/EPG-SPRINT X/EPG-SPRINT XE:
Attention!
4. Before connecting the programming cable to the EPG-SPRINT/EPG-SPRINT X/
EPG-SPRINTXE, switch o the control unit using its main switch.

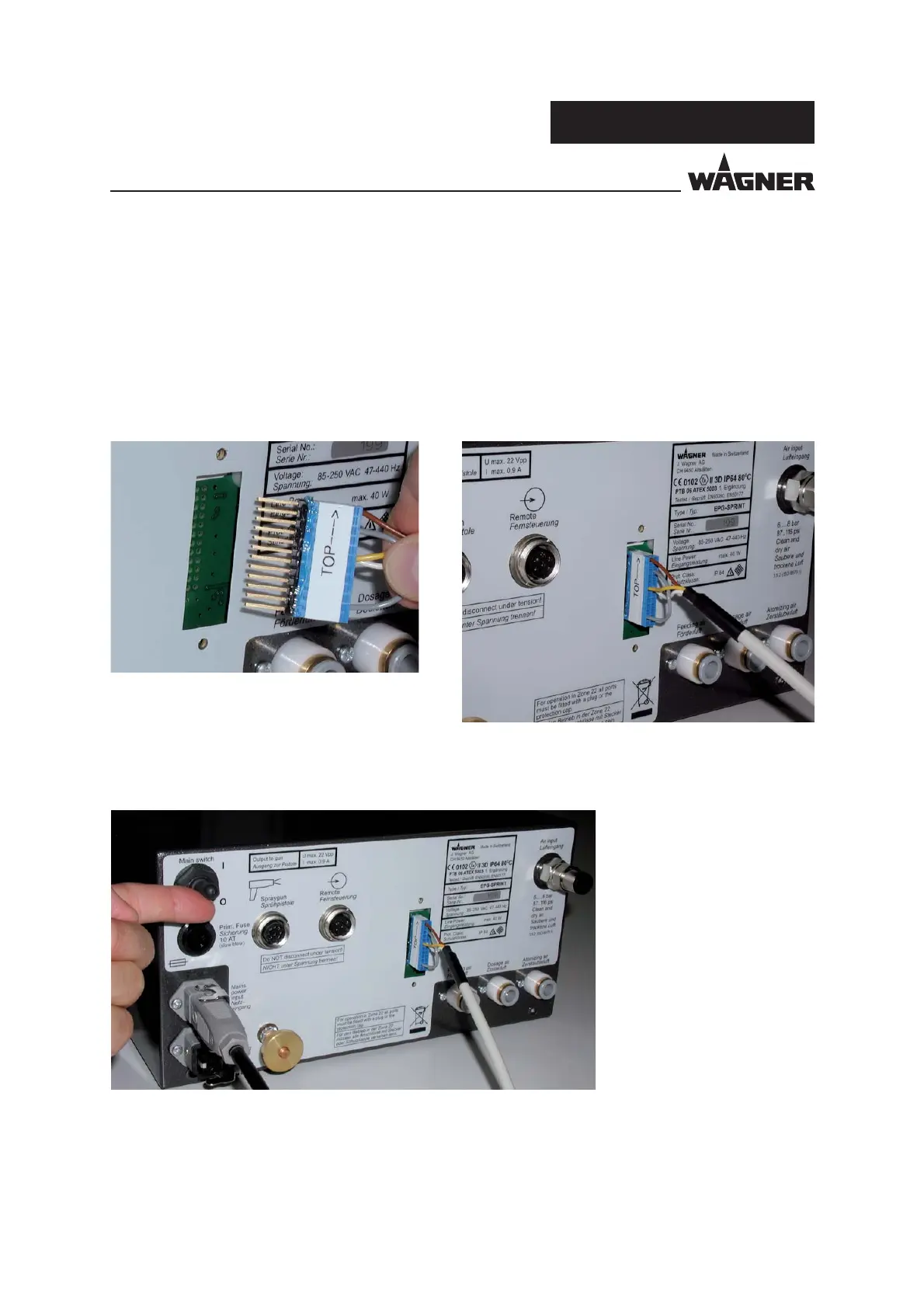

5. Connect the 24-pin connection piece to the control unit as shown below.
Do not connect connection piece in any other way.
6. Switch control unit back on using main switch.
The software update mode starts in the EPG control unit, the display on the front of the
control unit shows a random display that does not a ect the update process.
