System components:
Pilot fuel feed pump (MDF)1P13Adaptor02
Leak fuel tank (Clean Fuel)1T04Cooler (MDF)1E04
Day tank (MDF)1T06Fine filter (MDF)1F05
Leak fuel tank (Dirty fuel)1T07Suction strainer (MDF)1F07
Pressure control valve (MDF)1V02Pilot fuel fine filter (MDF)1F10
Quick closing valve (fuel oil tank)1V10Flow meter (MDF)1I03
Flexible pipe connection1HX0
Pipe connections:
Leak fuel drain, dirty fuel104Fuel inlet101
Pilot fuel inlet112Fuel outlet102
Pilot fuel outlet117Leak fuel drain, clean fuel103

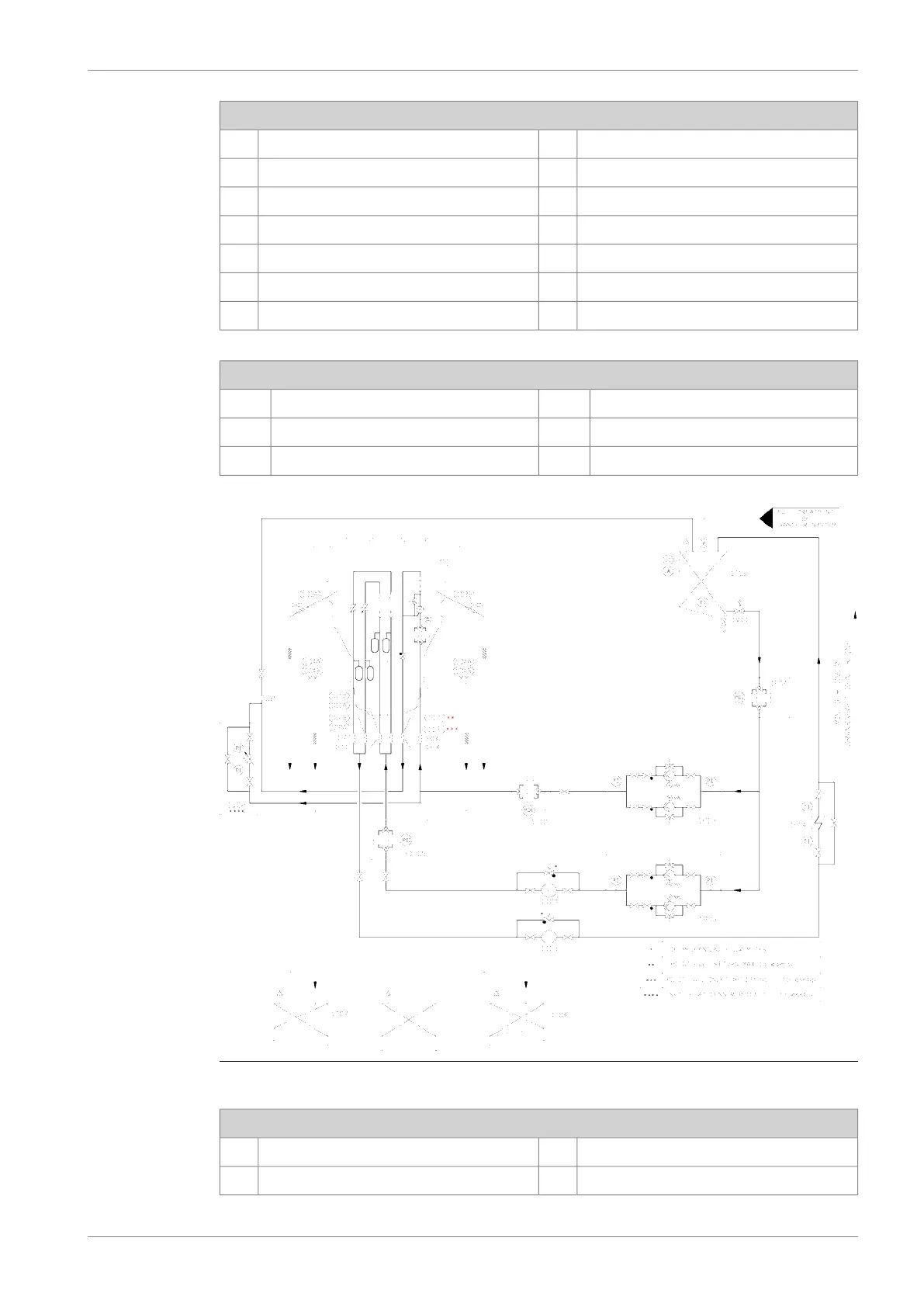

Fig 6-15 Example of fuel feed system, MDF (DAAF366911 C)
System components:
Circulation pump (MDF)1P03Diesel engine Wärtsilä V46DF01
Pilot fuel feed pump (MDF)1P13Adapter02
DBAD209883 6-33
6. Fuel SystemWärtsilä 46DF Product Guide
