Wascomat TD30 - Dimension Sketch

487 14 59 11 - TD30 TD50 TD75 US
Installation manual
17

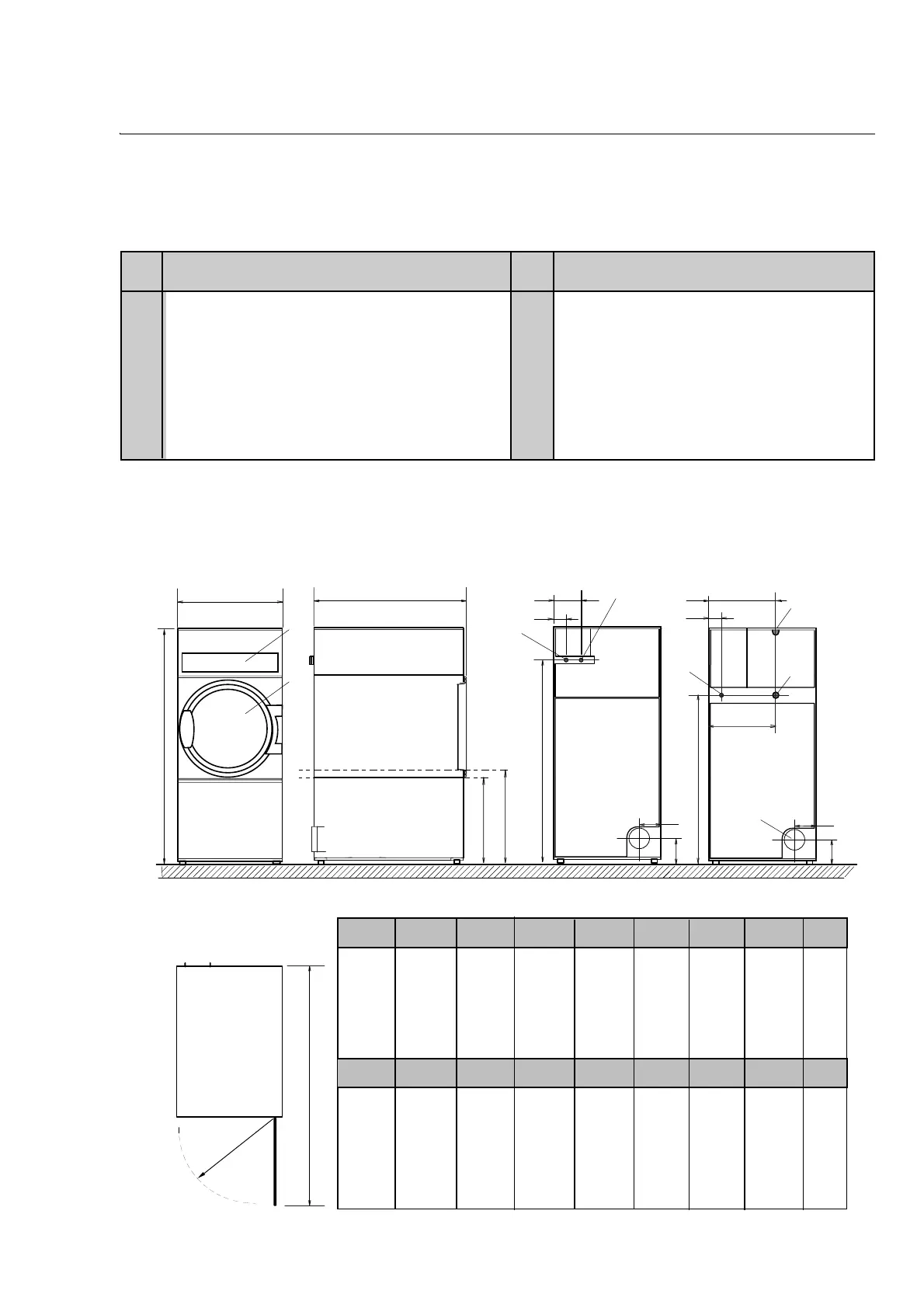

Dimension sketch
Gas and
Electric heating
Steam heating
G
L
H
F
H
A
C
B
D
E
J
M
30 28" 44" 74" 30 3/4" 28 1/2" 63 1/3" 18 1/2" 5 1/4"
50 37 3/4" 46 1/2" 78 1/2" 28 1/3" 25 1/2" 68" 23 3/8" 6"
75 37 3/4" 54" 78 1/2" 28 1/3" 25 1/2" 68" 23 3/8" 6"
30 6 3/4" 27 3/4" 71 1/4" 54 3/4" 9 7/8" 19 5/8" 2 3/4" 7 1/2"
50 8 3/4" 37 3/8" 83 1/2" 59 3/4" 10 5/8" 23 1/2" 5 5/8" 6 3/4"
75 8 3/4" 37 3/8" 90 1/2" 59 3/4" 10 5/8" 23 1/2" 5 5/8" 6 3/4"
O
P
N
5
6
4
3
3
I
I
K
1
2
7
B
A
CDEF
G
H
IJ
KL M N
OP
Type
1 Door opening 22
3
/4
” 32”
2 Operating panel
3 Electric connection
4 Gas connection
5 Steam in
6 Steam out
7 Pipe connection, evacuation
Type30 Type50/75
