Installation manual
487 14 59 11 - TD30 TD50 TD75 US
28
Reversing the door
The dryer is usually delivered with a right hinged
door but the door can be changed to left hinged
position.
The instructions for reversing the door are used
for dryers with Basic-3 as well as dryers with
Selecta Control.

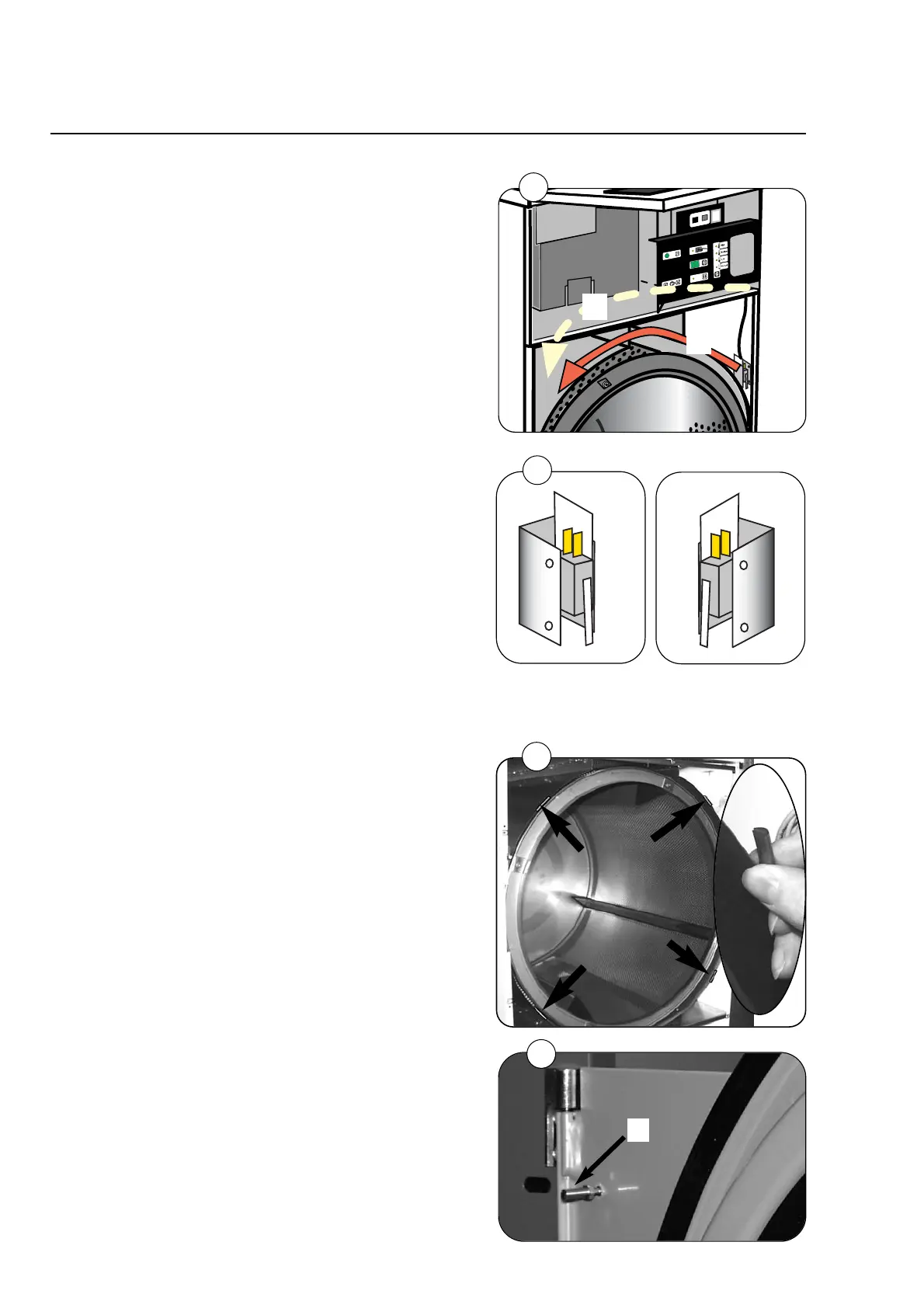

Fig. 1 shows a dryer with Basic-3.
Door reversal instructions
1. Disconnect the power supply to the machine.
2. Dismount the door.
3. Remove the screws that secure the center
front panel to the machine and remove the entire
panel.
4. Fig. 1 Disconnect the door switch wires and
move them to the opposite side of the dryer
remember to move the bushing as well (1a).
5. Fig. 2 Dismount the bracket with door switch
and turn it 180°. Unscrew the switch from the
bracket. Turn switch and insulation 180° and re-
mount them as before.
6. Mount the bracket with switch on the left side
and connect the wires, as before (1b).
7. Fig. 3 Note that the 4 guard strips on the
casing are installed before the front is, fig. 3.
8. Turn the front panel up side down and re-
mount it.
9. Turn the door up side down and re-mount it.
10. Fig. 4 Mount door pin A on screw at door
hinge. The new pin location must correspond with
the new position of the door switch.
To be continued on the following page.
1
3
1a
1b
Right hinged
door switch.
Left hinged door
switch.
2
4
A
