Exhaust system
Nonreturn flap
In order to achieve the best result it is important
that the dryer has the right volume of air to work
with.
From factory the nonreturn flap is set to be wide
open.
Adjusting the dryer
1. Dismount the back plate.
2. Adjust the amount of air by opening/closing the
damper A, fig. 1.
Service organization/dealer
If you have questions relating to the design of the
exhaust system, please contact your local dealer or
service organization.
1
A
Acceptable

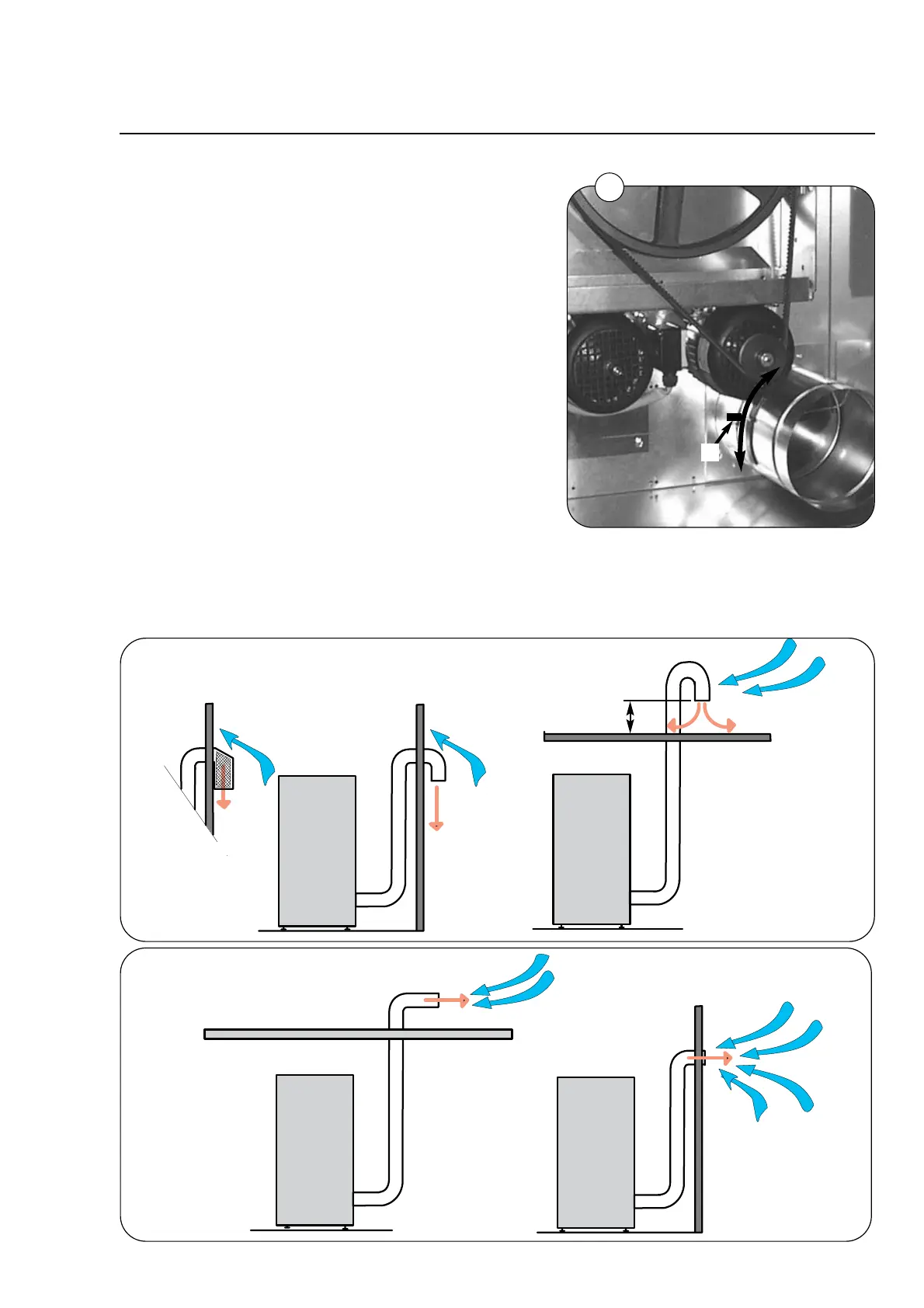

Exhaust illustrations
Unacceptable
windwind
wind
wind
wind
Minimum
1 ft
OR
