Steam installation
Before start
The steam pipe must be cut off and must not be
under pressure.
Steam
Water steam (Operating steam pressure)
absolute pressure 43.5 - 145 PSI (3 - 10 bar) /
266 - 356°F (130 - 180°C).

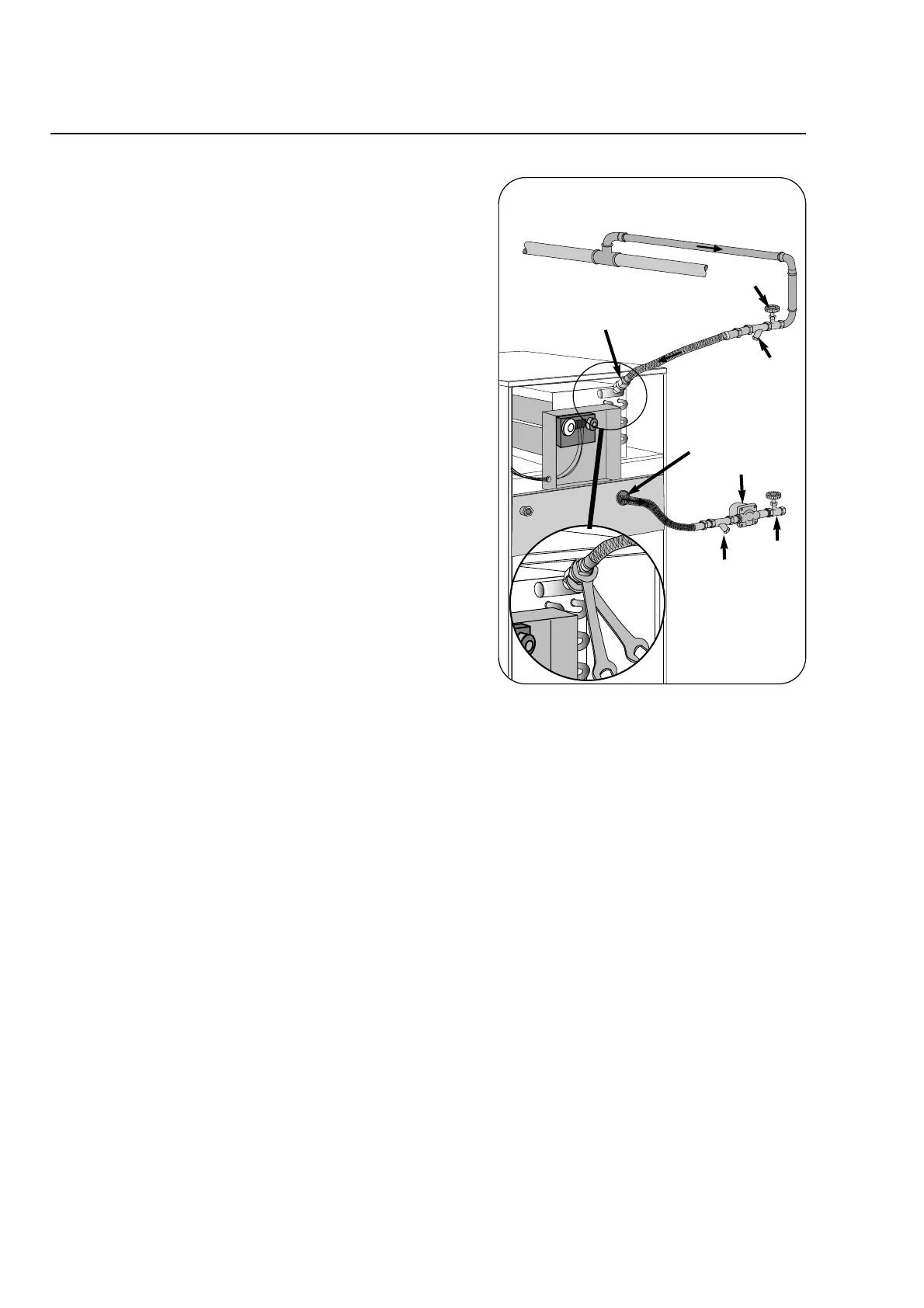

Steam forward
1. The branch pipes branch must be located at the top
of the main steam pipe to prevent condensation in
the steam.
2. The branch pipe must have a descending gradient
and must end at a height above the inlet connecting
branch (A).
3. Mount a plug valve (C) and a dirt collector (D) in the
branch pipe.
Condensation return
1. It is important that the branch pipe for condensed
water on return to the main condensation pipe has
a descending gradient and is lower than the outlet
connecting branch (B).
2. Mount a dirt collector (D) in the return pipe.
3. Mount a mechanical water discharger behind the
dirt collector (E).
4. Then mount a plug valve (C).
5. Mount pressure hoses between branch pipes and
dryer.
Leak test
1. Leak test the system.
2. Clean the dirt collectors (D).
Function check
The function check is described in the back of this
manual.
Pipe insulation
All pipes must be insulated in order to reduce risk
of burning. Insulation also reduces loss of heat to
the surroundings.
