Installation manual
487 14 59 11 - TD30 TD50 TD75 US
50
2
To be carried out by qualified
personnel
Function check
Check that the drum is empty and the loading
door is closed.
Start the machine
Check if the micro switches are working properly:
• Dryer with Basic-3 / Selecta Control
The dryer must stop if the loading door is opened
• Dryer with Selecta Control only
The dryer must stop if the filter door is opened.
Correct direction of rotation

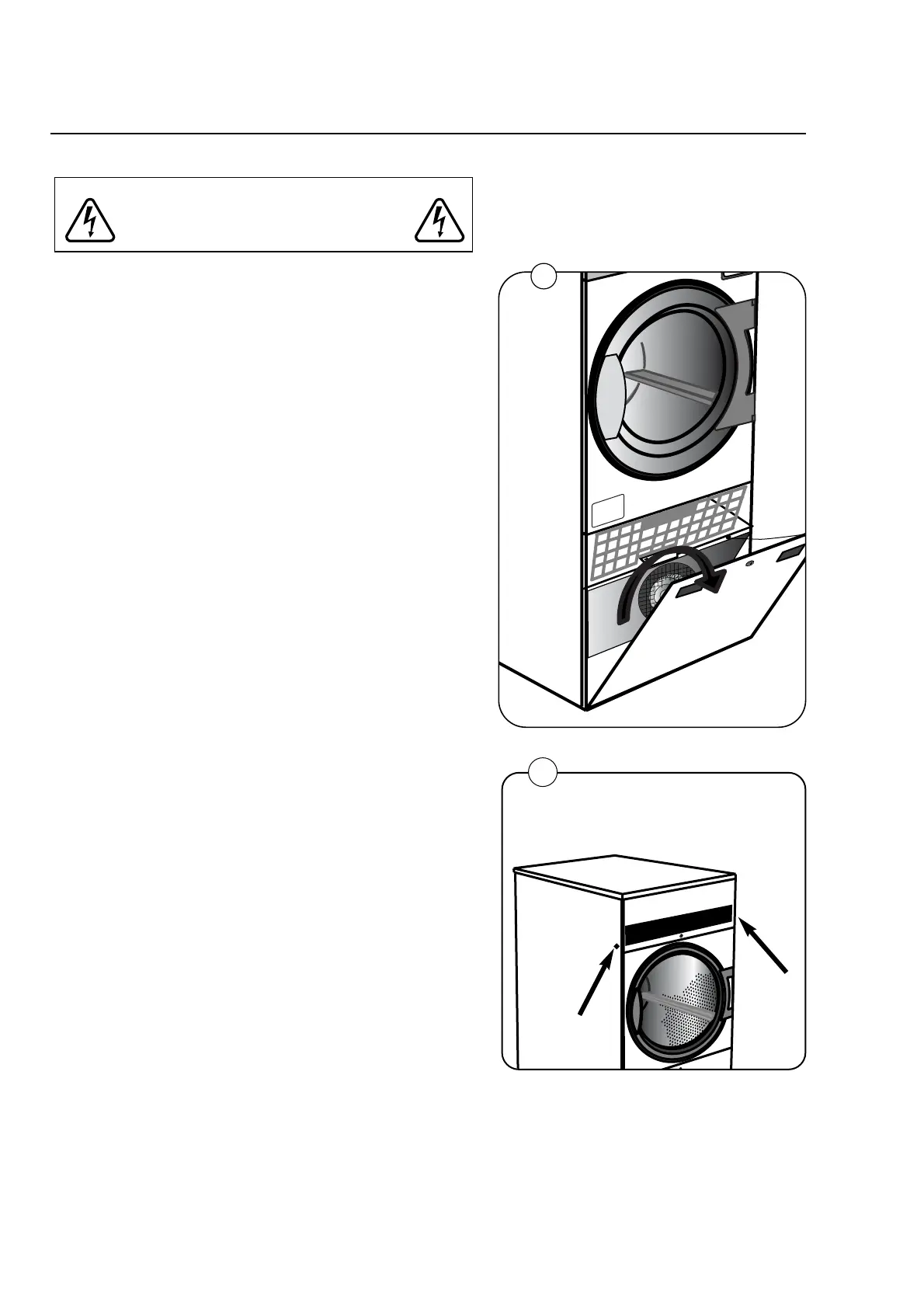

Fig. 1 Correct direction of rotation on fan wheel:
clockwise.
For dryers with a 3-phase motor the direction of
rotation must be checked.
If the direction of rotation is not correct, swop two
phases on the connection terminal.
Final test
Let the dryer work for 5 minutes on a program
that requires heat.
Then check whether the heating is working by
opening the front door and feel the heat.
If the above tests-points are in order, the dryer is
ready for use.
Safety screws
Fig. 2 Remember to fit the screws on the sides of
the front panel.
Service organization / dealer
If deficiencies or errors are detected, please
contact your local service organization / dealer.
