Installation manual
31
487 14 59 11 - TD30 TD50 TD75 US
1
Exhaust system
Air principle

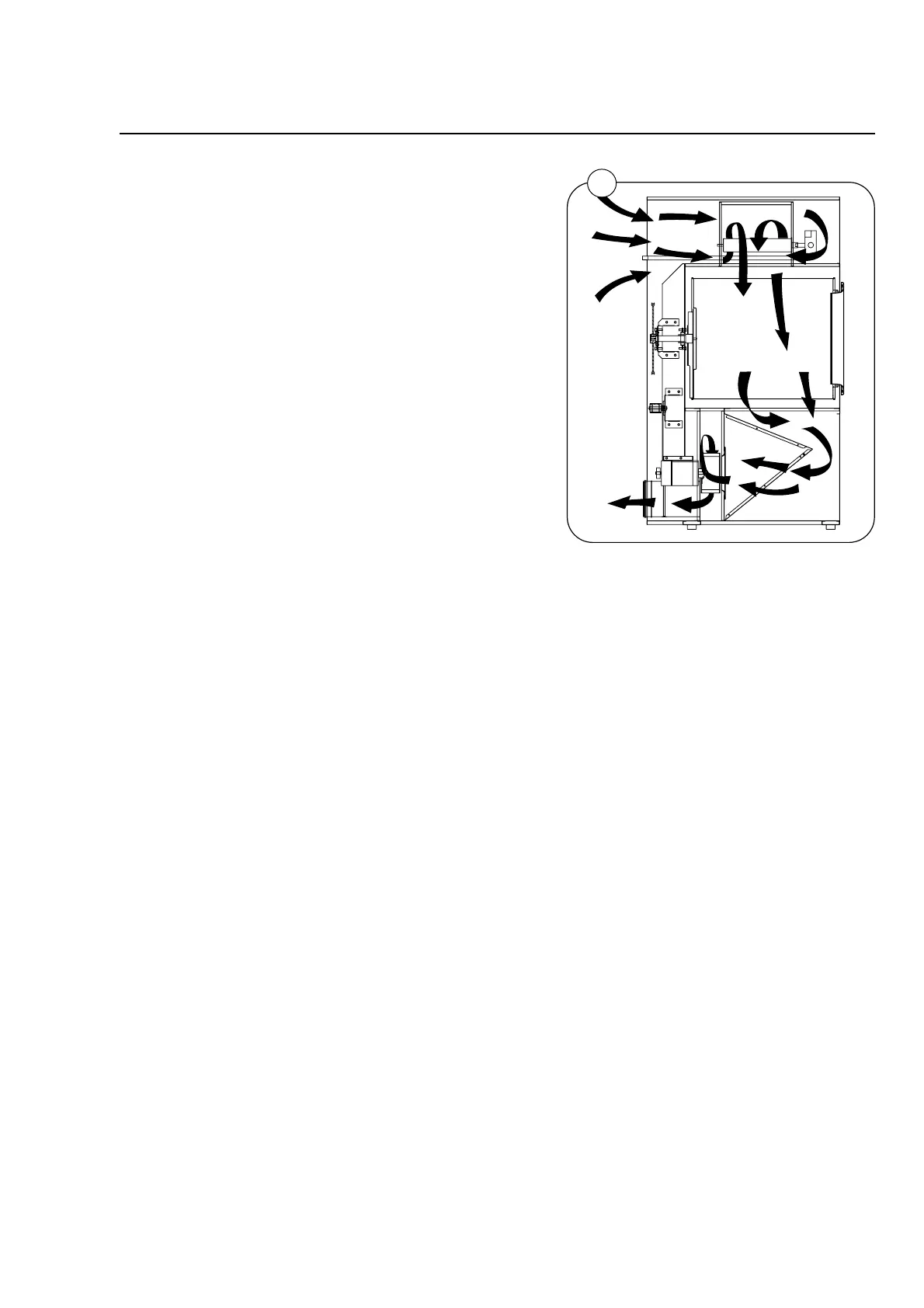

Fig. 1 The blower creates low pressure in the
dryer, drawing air into the drum via the heating
unit.
The heated air passes through the garments and
the drum vents.
The air then flows out through a lint filter
positioned straight below the drum. After this, the
air is evacuated through the blower and exhaust
system.
It is very important that the dryer gets enough
fresh air, see next section.
