Setup
Unpacking
When unpacking the machine, handle it with
care. There are no transport brackets to
remove.

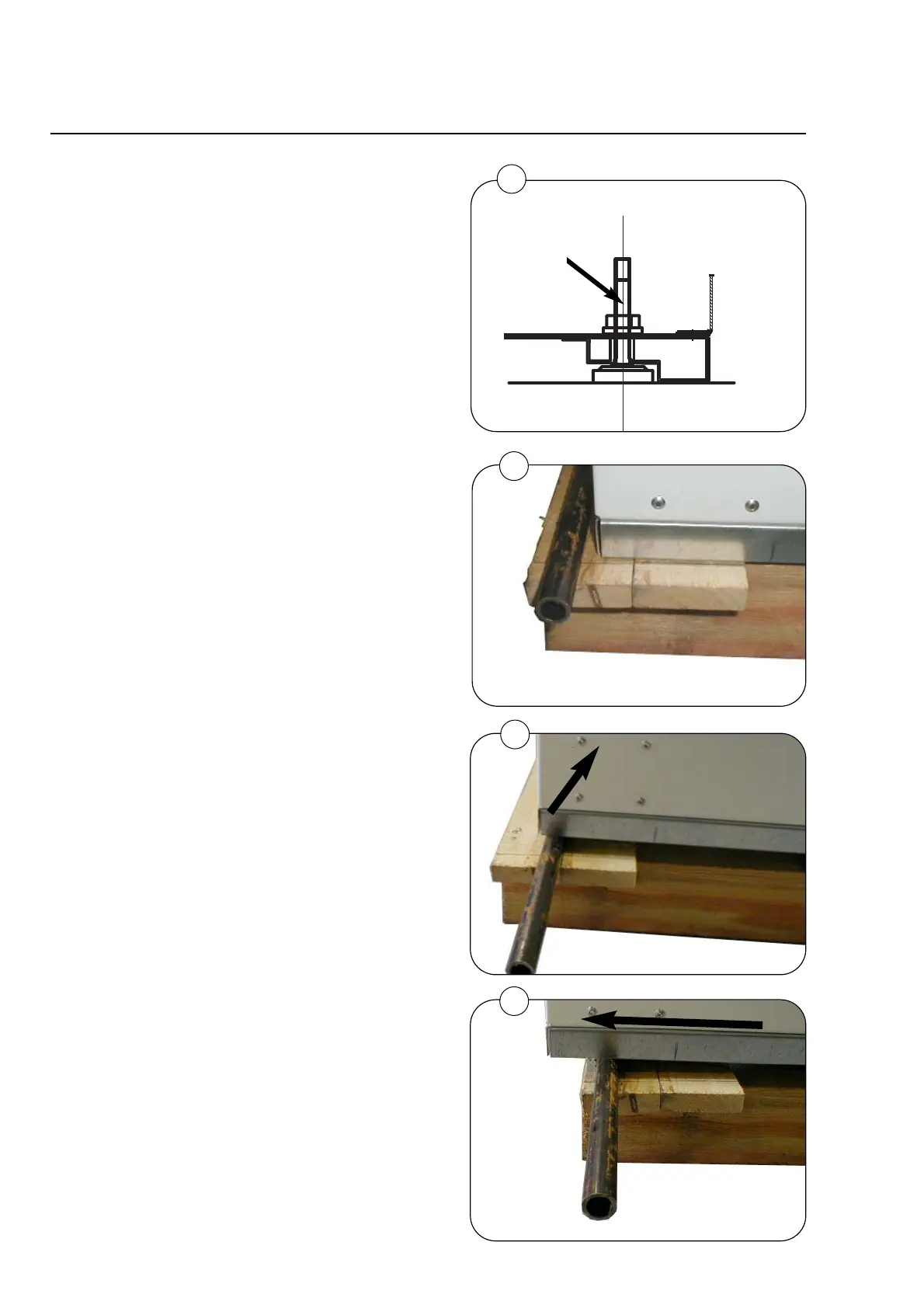

Fig. 1 From factory the dryer is equipped with
4 supporting feet A.
Remove the dryer from the pallet
At least two people are required to
remove the dryer from the pallet.
The tumble dryer is fastened to the pallet by
3 transportation screws.
1. Open filter door. Remove the 2 transporta-
tion screws by the front.
2. Remove the bottom back plate. Remove
transportation screw by the back plate.
Mount back plate.
3. Place a 1 1/2” steel pipe at the back of the
dryer as shown in fig. 2.
4. Fig. 3 Stand behind the dryer and tilt it
forward.
When the dryer rises from the pallet push the
pipe under the dryer.
5. Fig. 4 Push the dryer from the front.
6. Remove the steel pipe by tilting the dryer
forward while removing the pipe.
If necessary, the dryer can be rolled into
position using pipes.
2
3
4
1
A
