Wascomat TD30 - Special Installation

Installation manual
487 14 59 11 - TD30 TD50 TD75 US
30
1000
706
45 45
Type 3290 / 30
904
1067 = Type 3530 / 50
45 45
Type 3530 / 50
Type 3650 / 75
A
A
A
A
M10
M10
M10
A-A
26
26
1253 = Type 3650 / 75
Set up - Special installation
Fastening to the base
If the dryer needs fastening to the base a kit containing 4
fittings can be ordered. Kit no. 472 77 77 01.
The four fittings are fastened to the base by means of
4 x M10 expander bolts.

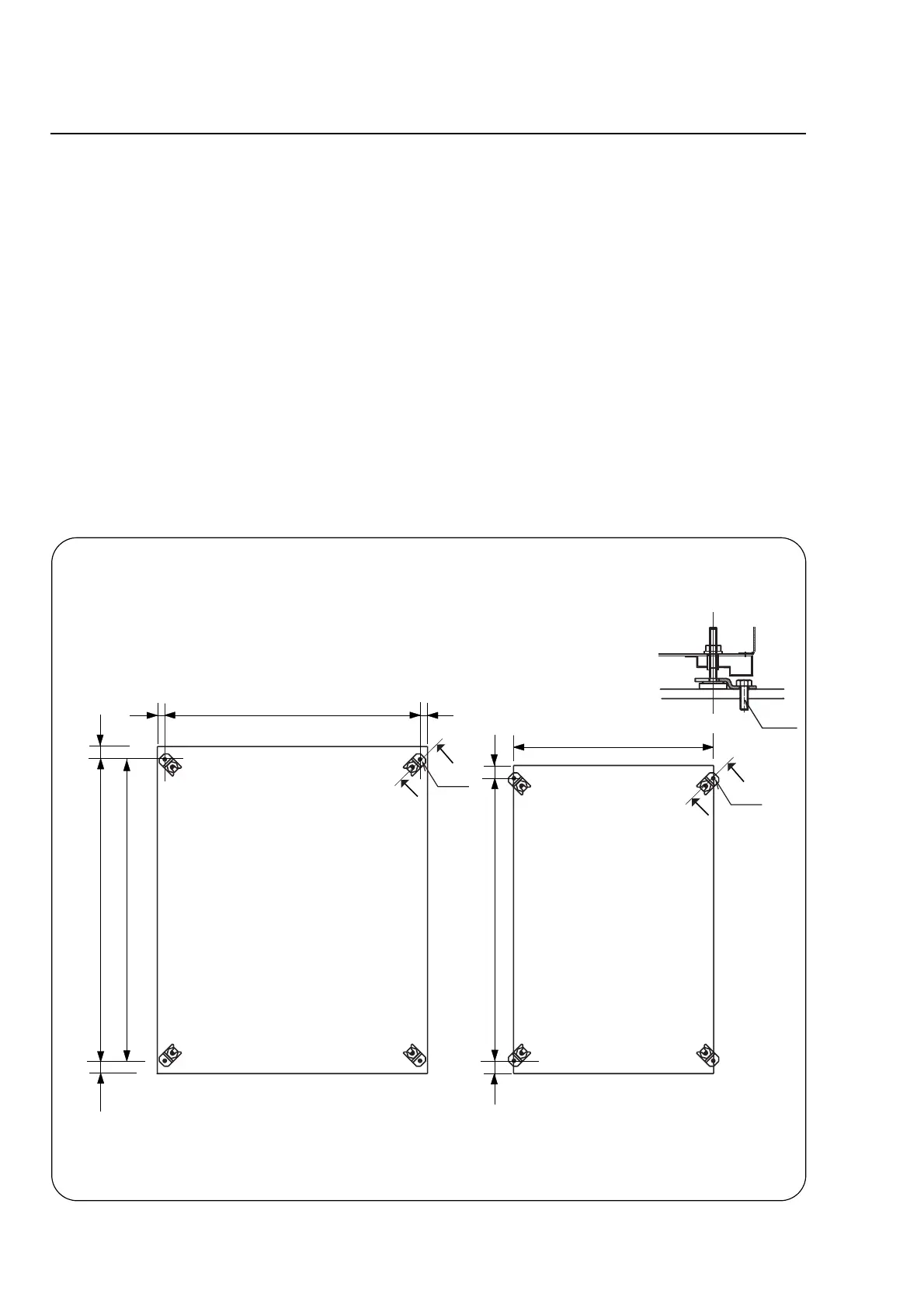

Drilling plan
