Wascomat TD30 - Gas Valve Type 75

Installation manual
41
487 14 59 11 - TD30 TD50 TD75 US
Gas installation - Type 75

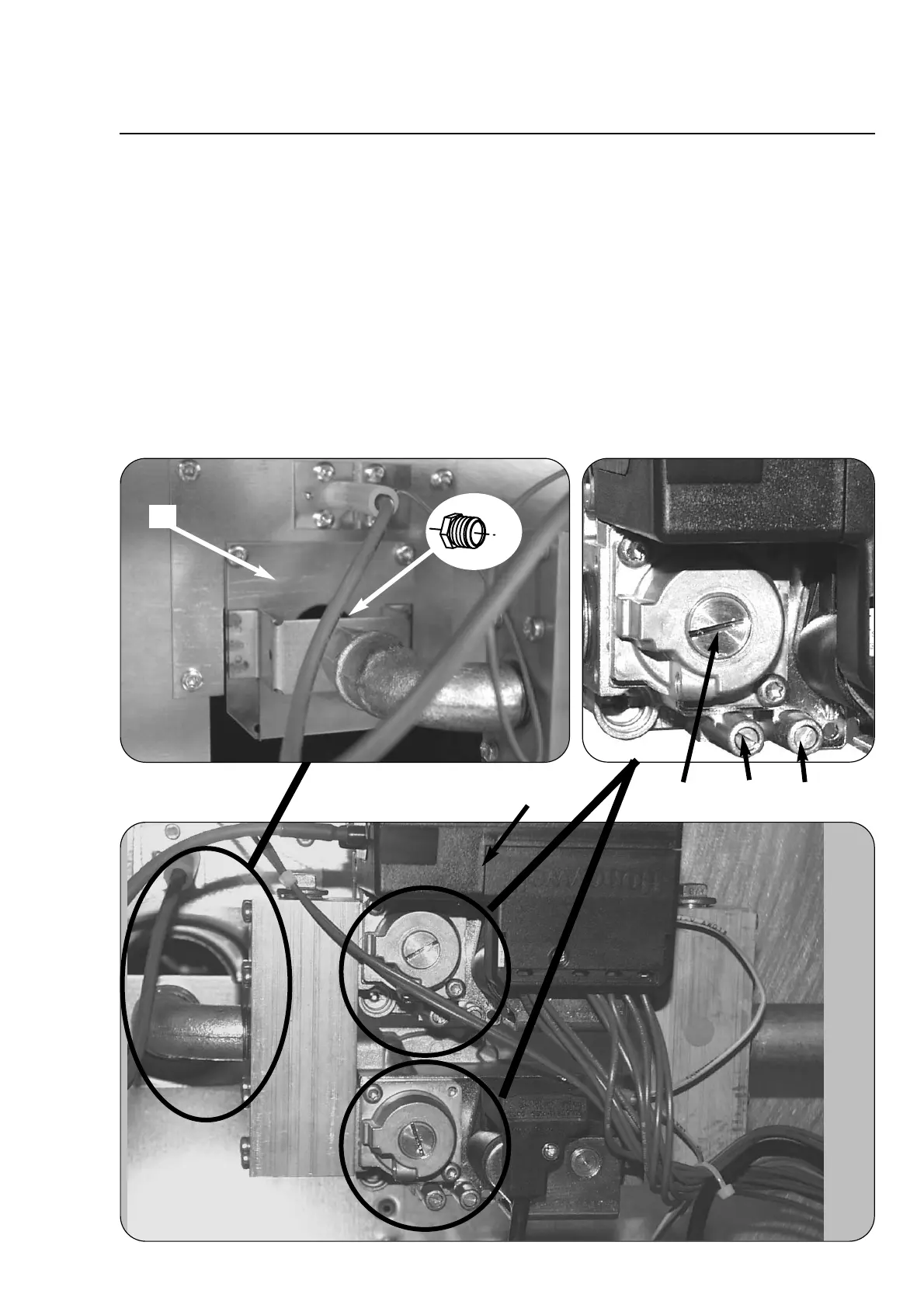

Gas valve
1. Nozzle
2. Measuring branch, nozzle pressure
3. Cover screw
4. Adjusting screw
5. Control box, gas valve
6. Measuring branch, supply pressure
7. Air reducing plate.
3 + 4
6
2
5
1
7
