Wascomat TD30 - Dimension Sketch - Adapter for Direct Fresh-Air Intake

Installation manual
51
487 14 59 11 - TD30 TD50 TD75 US

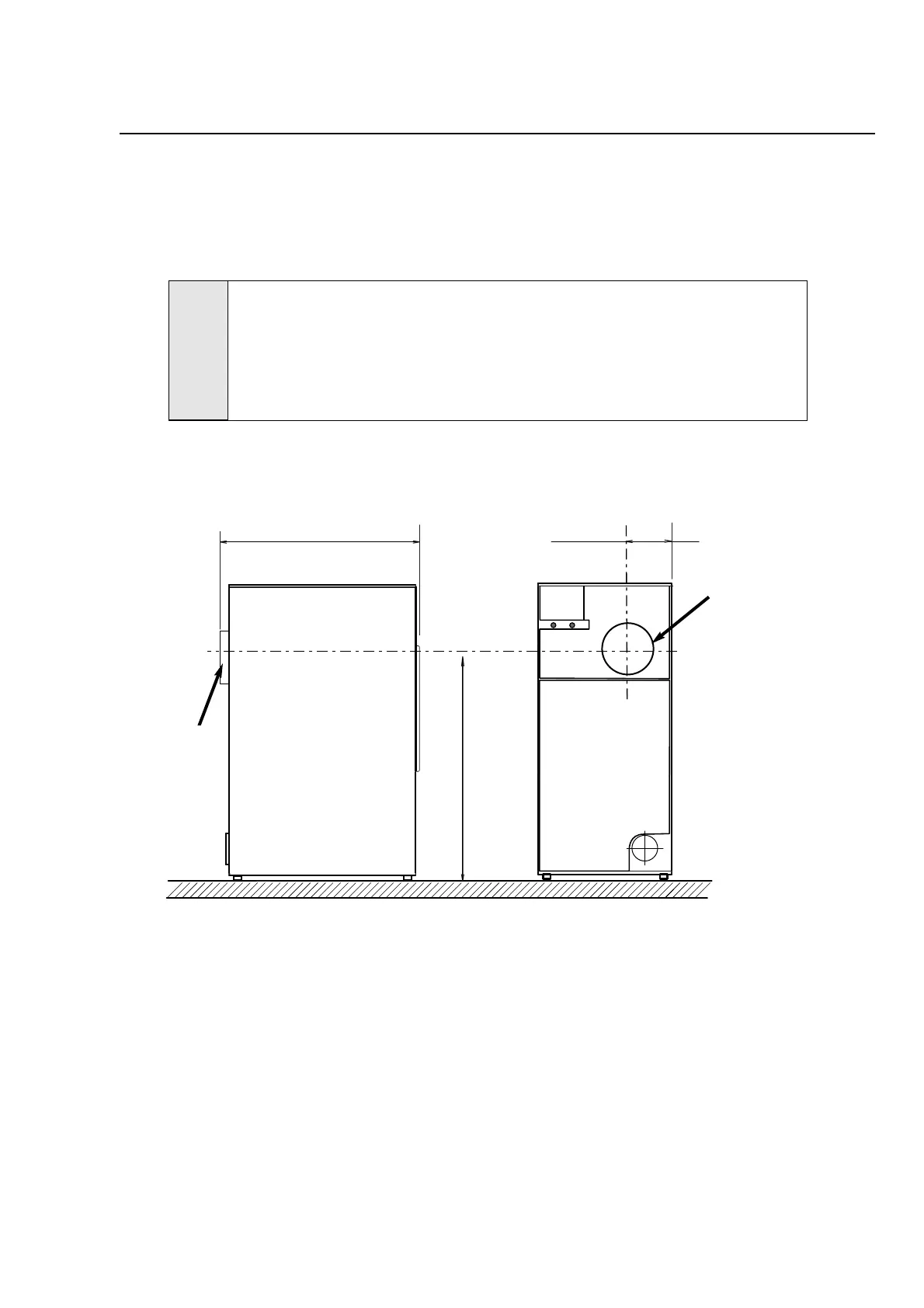

Dimension sketch - Adapter for direct fresh-air intake
Gas- and electric heated dryer.
1 Adapter: TD30 no. 988 80 20 41
TD50, TD75 no. 988 80 20 42
2 Diameter: TD30 Ø12.4” (Ø 315)
TD50, TD75 Ø15.75” (Ø 400)
1440
TD30 = 47"
TD50 = 49 3/8"
TD75 = 56 7/8"
TD30 = 9 7/16"
TD50 = 12 3/16"
TD75 = 12 3/16"
1
2
