Positioning

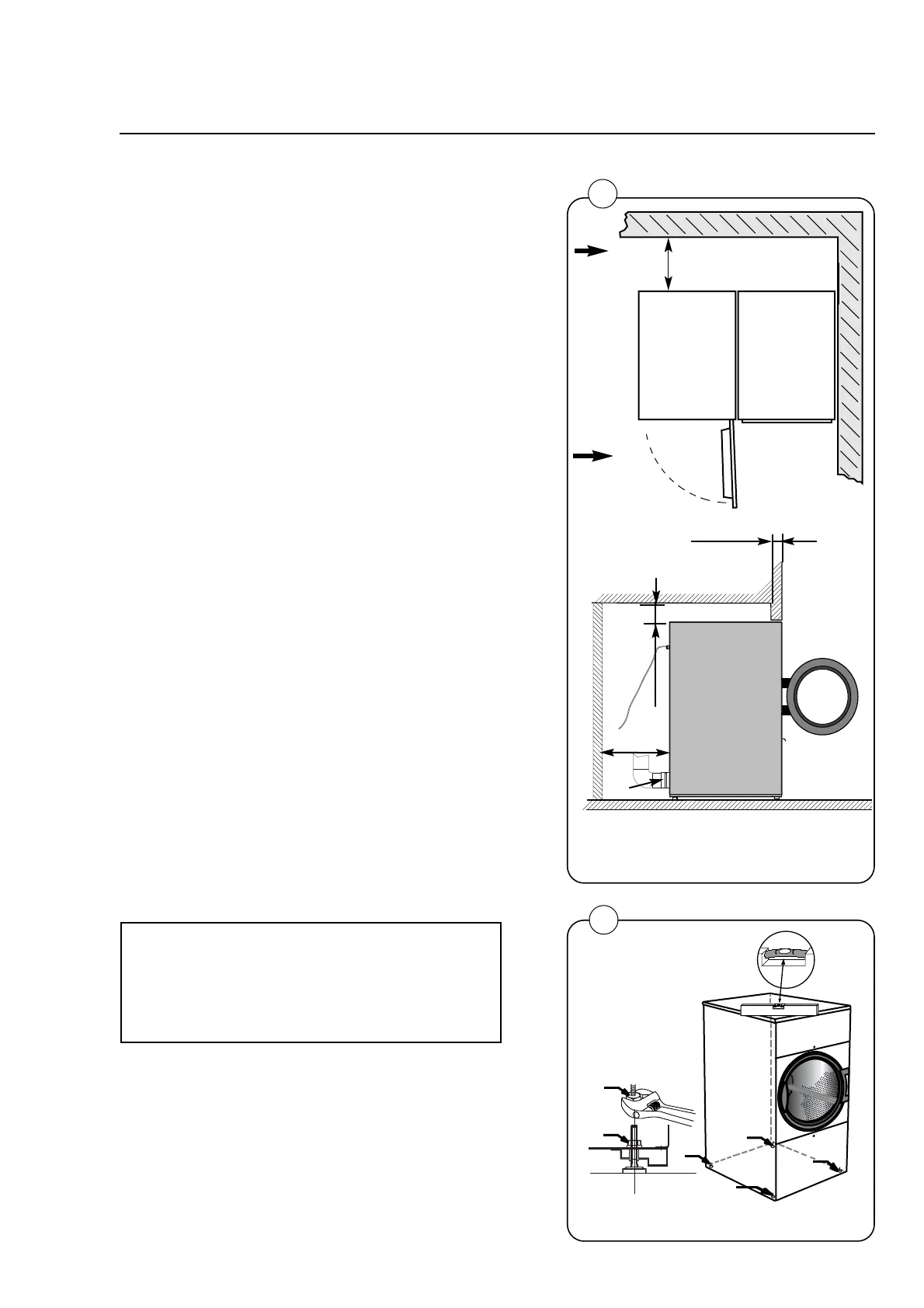

Fig. 1 Position the tumble dryer so that there is
plenty of room for working, both for the user and
for the service technician.
The distance from the wall or other equipment
behind the tumble dryer should be at least 20”
(500 mm).
Apart from the minimum distances shown in
fig. 1 there are no further requirements to the
distances around the dryer.
Note that, for servicing purposes, access to
the rear of the tumble dryer is required.
Exhaust duct
Mount the connecting duct a on the exhaust
duct on the back of the dryer.
The connecting duct is in the drum.
Adjusting the dryer
Adjust the machine to make it stand horizontally
and stably on all four feet.
The max. height adjustment of the feet is 5/8”
(15 mm).
The feet must be locked
Fig. 2 Bearing in mind the stability of the feet, it
is important to lock the tumble dryer’s feet with
nuts A.
After adjusting, reinstall the panels.
1
Minimum
20”
Minimum 20”
Minimum 6”
Section A-A
A
A
Top view
Maximum 2”
a
Warning
Don`t cover the top plate of the tumble dryer.
There are vent holes in the top plate
which must not be obstructed !
Gas dryers type 75 only.
