Motor
35

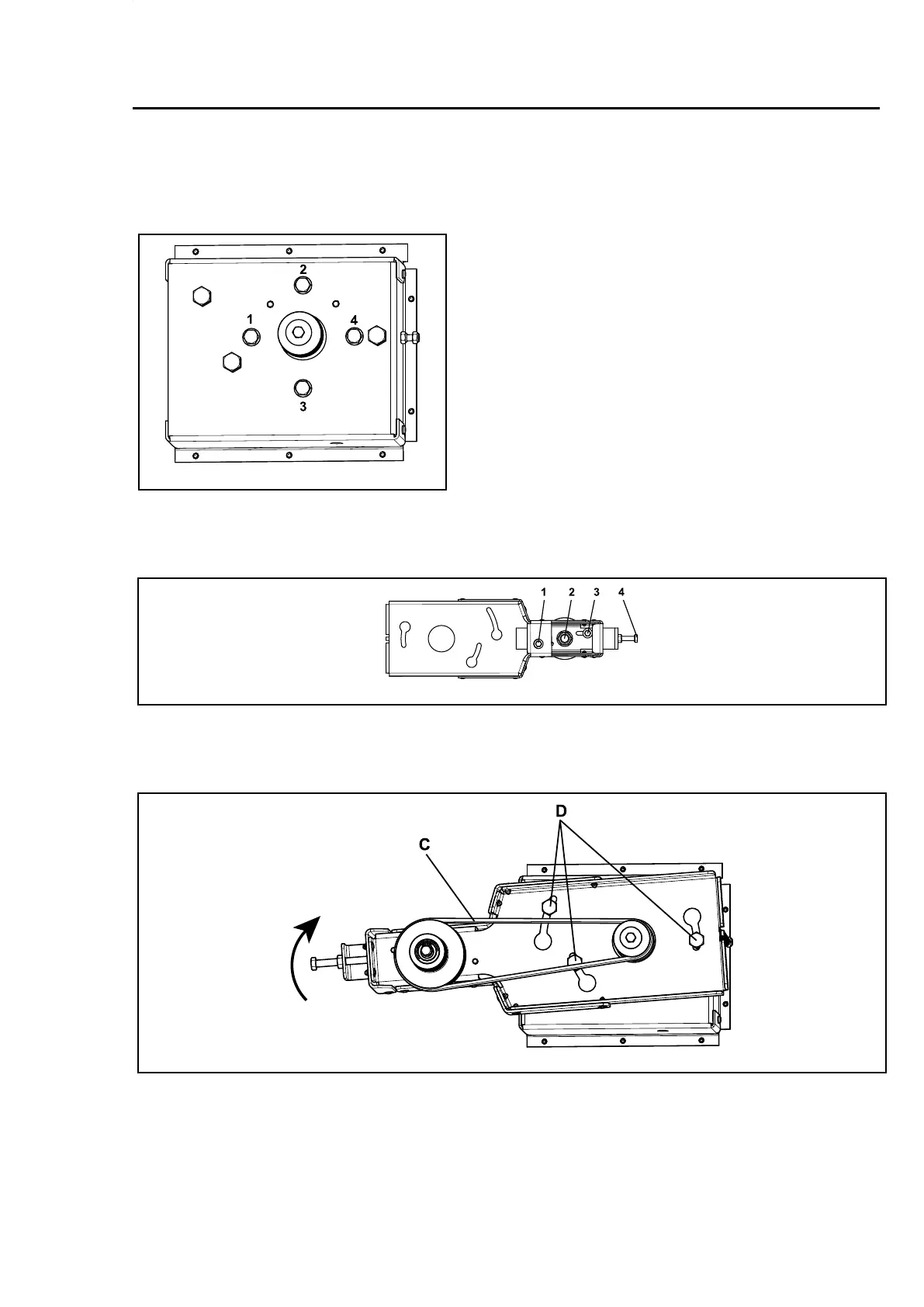

Demountthemotorbyunscrewingthefourscrews.
Mountthenewmotor.Tightenthescrewscrosswise(1,4,2and3)withtighteningtorque16.5
Nm±3.
1
2
3
4
g.7221A
26
Inordertofastenthebeltagain,rstloosenthefourscrewsabit.
1 2 3 4
g.490377800
27
Fastenthetensionarmonthemotorpanelintheholesandturnitclockwiseuntilitisinposition.
C
D
g.7224A
28
