Wascomat TD67 - Page 36

36
Motor

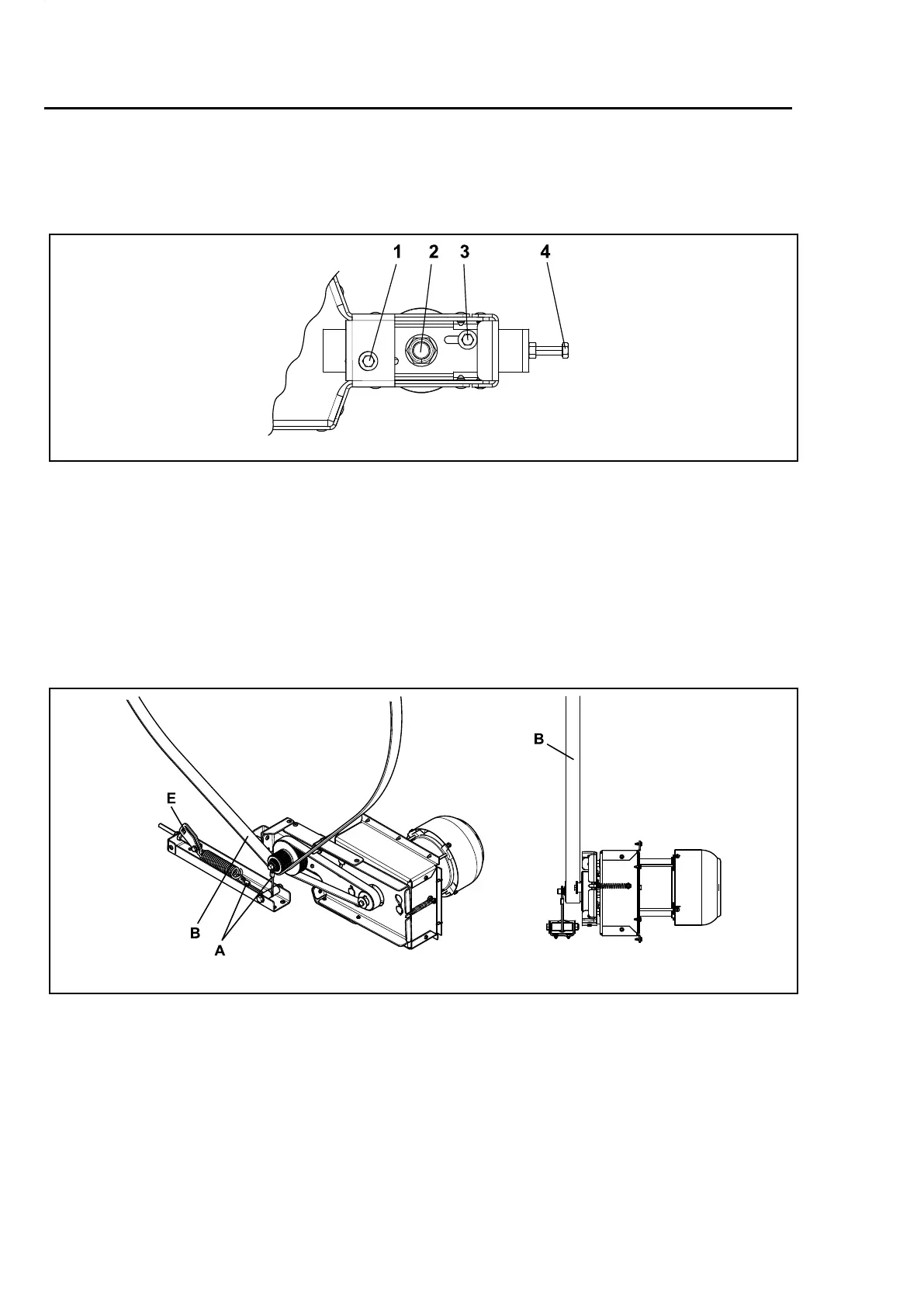

Putthebeltinposition(C)andtightenthescrews(1,2,3,4startingwith4).
Checkthebelttensionwithafrequencymeaterorsimilar.Thefrequencyshallbe80Hz±5.
Adjustifnecessary.
1 2 3 4
g.49077800A
29
Remountthemotormoduleinthemachine.
Fastenthebelt(B)andthewire(A).Makesurethebeltisinposition.
Tightenthebelttensionerwithatorquewrenchbypullingthetensionplate(E)clockwiseuntil
itisinposition.
Checkthebelttensionwithafrequencymeaterorsimilar.Thefrequencyshallbe75Hz±5.
Adjustifnecessary.
A
B
E
B
g.7220D
30
Connectthemotorcable.
Remountthecoverplateandtherearpanels.
Note!
ThemachinewillNOTworkwithoutthecoverplate.
