Drum
83

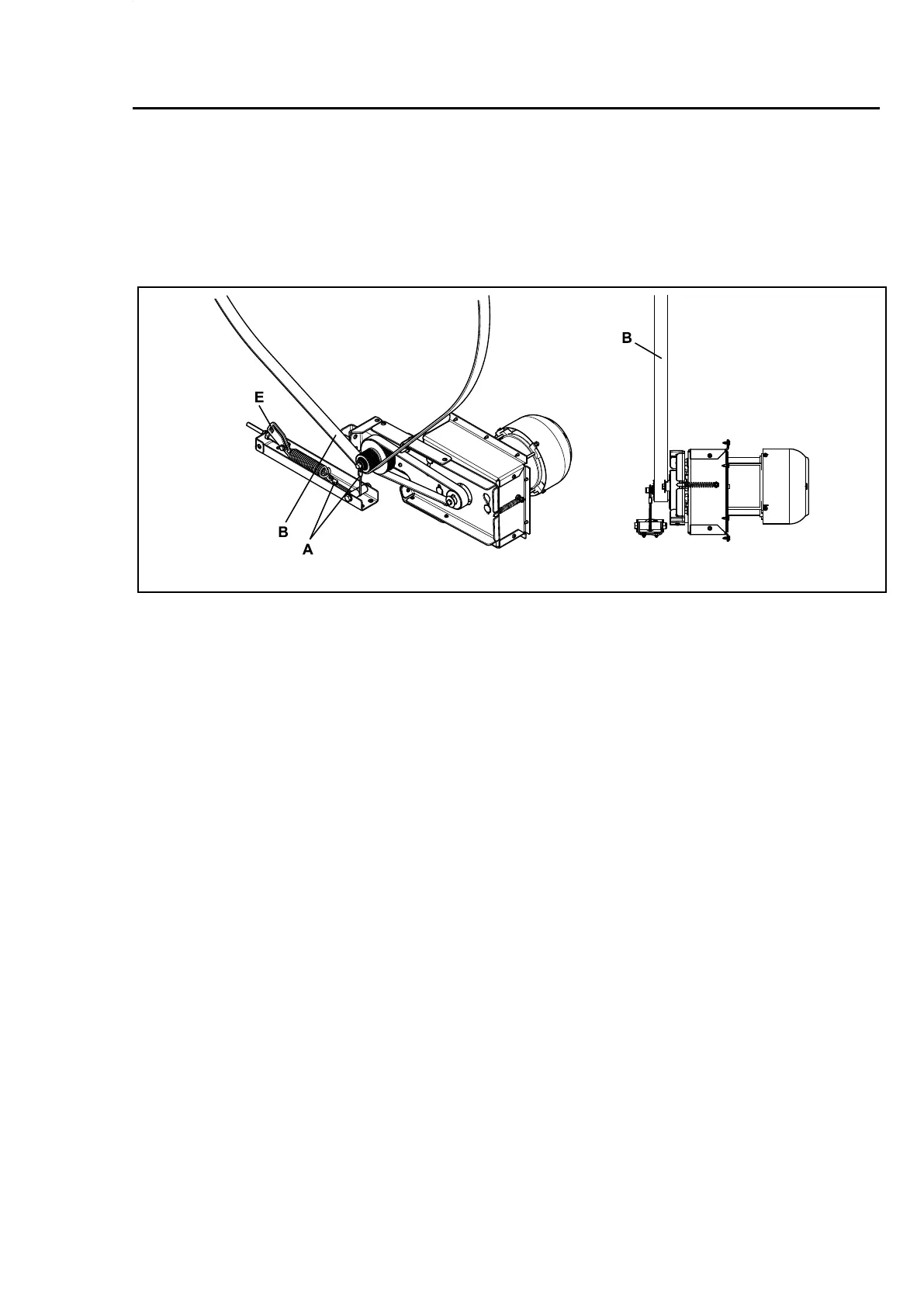

Fastenthebelt(B)andthewire(A).Rotatethedrumtomakesurethatthebeltisinposition.
Tightenthebelttensionerwithatorquewrenchbypullingthetensionplate(E)clockwiseuntil
itisinposition.
Checkthebelttensionwithafrequencymeaterorsimilar.Thefrequencyshallbe75Hz±5Hz.
Adjustifnecessary.
A
B
E
B
g.7220D
111
Remountthecoverplateandtherearpanels.
Note!
ThemachinewillNOTworkwithoutthecoverplate.
Remountthefrontpanelandthedoor.
