Waters 2998 - Page 35

Making signal connections 2-9
•Waters SAT/IN™ Module
• Waters, or other, manual injector
• Waters autopurification system
• Other manufacturers’ integrator or A/D interface device
Requirement: To meet the regulatory requirements of immunity from
external electrical disturbances that can affect the performance of this
instrument, do not use cables longer than 3 meters (9.8 feet) when you make
connections to the I/O connectors. In addition, ensure you connect the shield of
the cable to ground at one instrument only.
To connect the detector to other instruments, use the two analog-out/event-in
(I/O) connectors and their mating connectors on the rear panel.

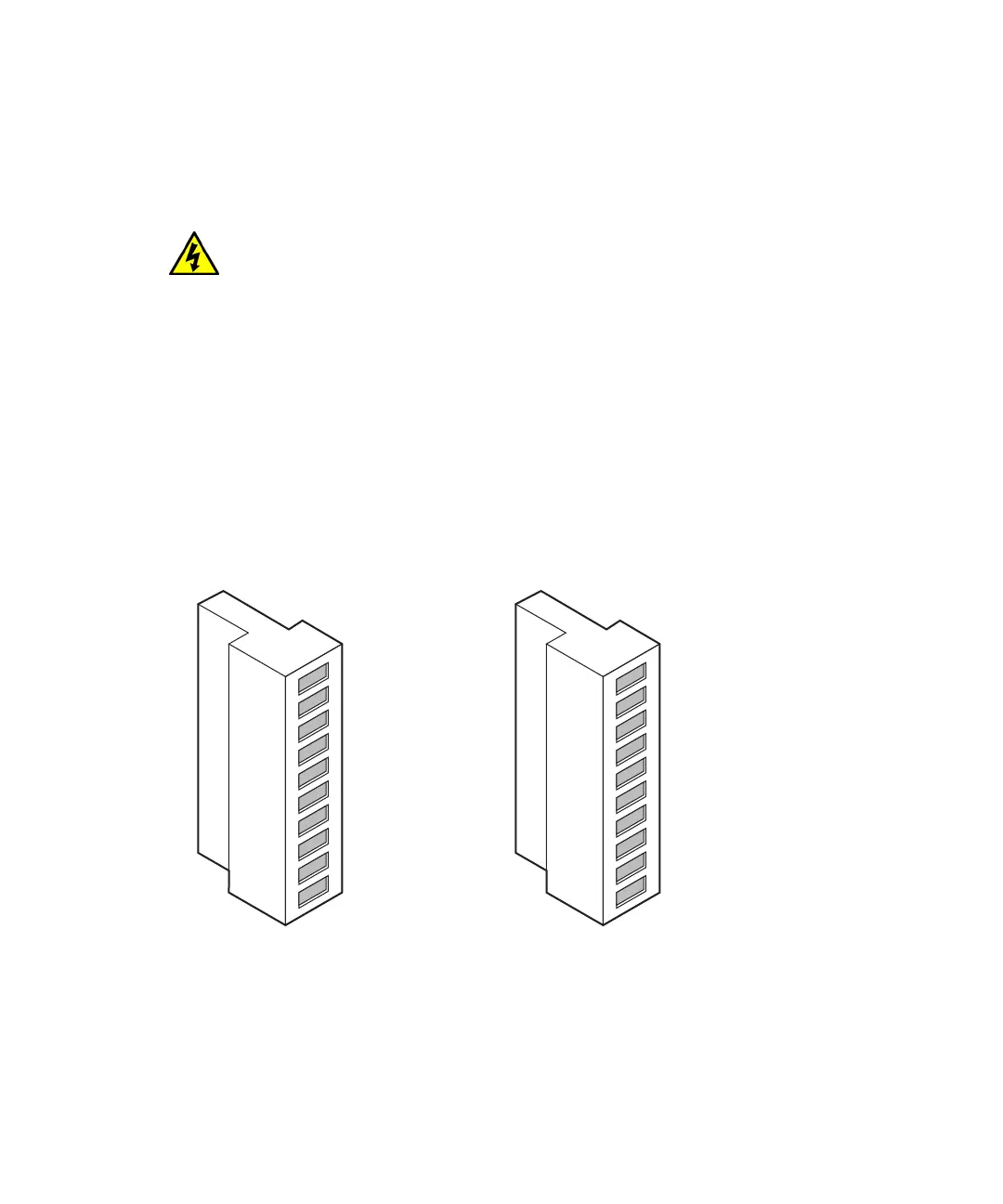

2998 rear panel analog-out/event-in connectors
Warning: To avoid electrical shock, power-off instruments being
connected before making any electrical connections.
1
2
3
4
5
6
7
8
9
10
+
−
+
−
+
−
+
−
Analog 1
Analog 1
Ground
Analog 2
Analog 2
Switch 1
Switch 1
Ground
Switch 2
Switch 2
1
2
3
4
5
6
7
8
9
10
+
−
+
−
+
−
+
−
Inject Start
Inject Start
Ground
Lamp Off
Lamp Off
Chart Mark
Chart Mark
Ground
Auto Zero
Auto Zero
Connector B (outputs) Connector A (inputs)
