2-14 Setting Up the Detector
Connecting to an Empower or MassLynx data system using an
eSAT/IN module
To send an integrator analog output signal (–0.1 to +2.1 V) from the detector
to an Empower or MassLynx system (through a two-channel SAT/IN Module),
make the connections shown in the following table and figure.

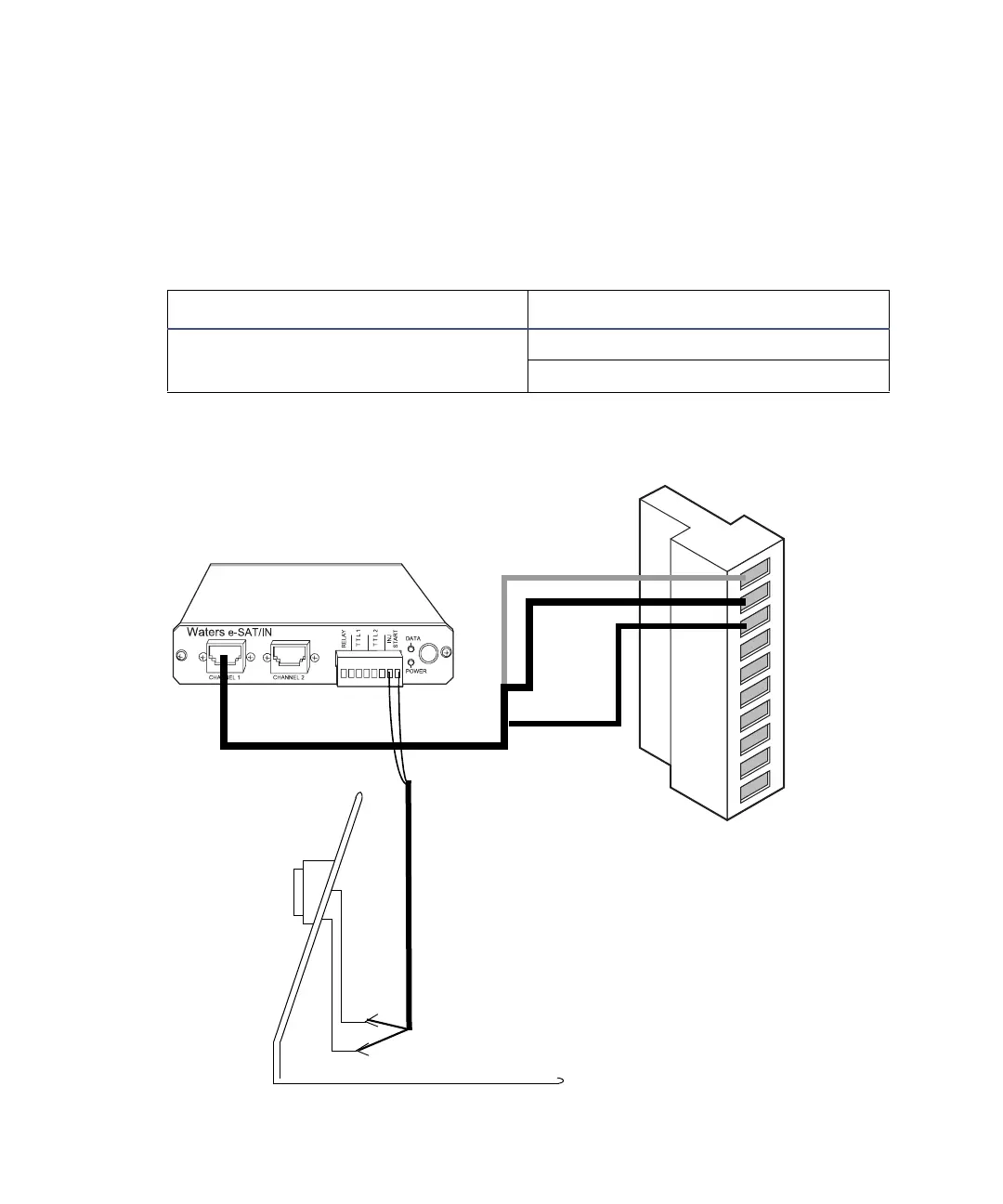

Analog output connections to the eSAT/IN module
Detector connections to the eSAT/IN module
SAT/IN module connector 2998 PDA detector (connector B)
CHANNEL 1 Pin 1 signal out + (white)
Pin 2 signal out – (black)
Red
Black
Shield
1
2
3
4
5
6
7
8
9
10
+
−
+
−
+
−
+
−
Analog 1
Analog 1
Ground
Analog 2
Analog 2
Switch 1
Switch 1
Ground
Switch 2
Switch 2
eSAT/IN module
2998 PDA detector connector B
Injector
