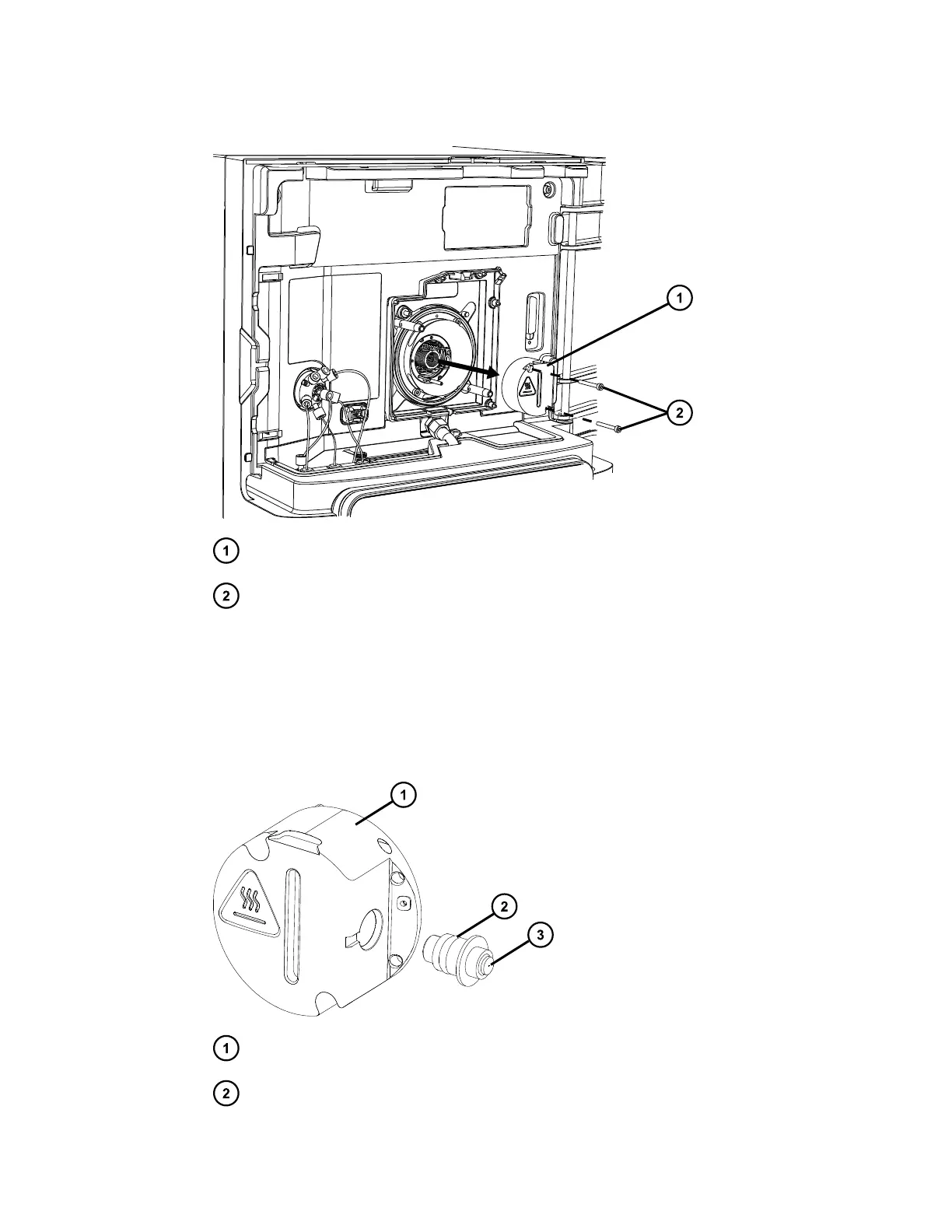

Figure 3–6: Removing the ion block
Ion block
Securing screws
Note: If the ion block does not release, insert the short end of the hex wrench into the slot
on the ion block and, using the long end, lever the wrench from side to side to break the
seal between the ion block and the source housing. Do not insert any other implement to
break the seal between the ion block and the source housing.
5. Remove the restrictor from the ion block.
Figure 3–7: Restrictor removed from ion block
Ion block
Restrictor O-ring
August 20, 2021, 715005003 Ver. 04 (Previously released as Revision C)
Page 37
