3.16 Emptying the source exhaust trap bottle
Inspect the source exhaust trap bottle in the instrument’s exhaust line daily, and empty it before it
is more than 10% full.

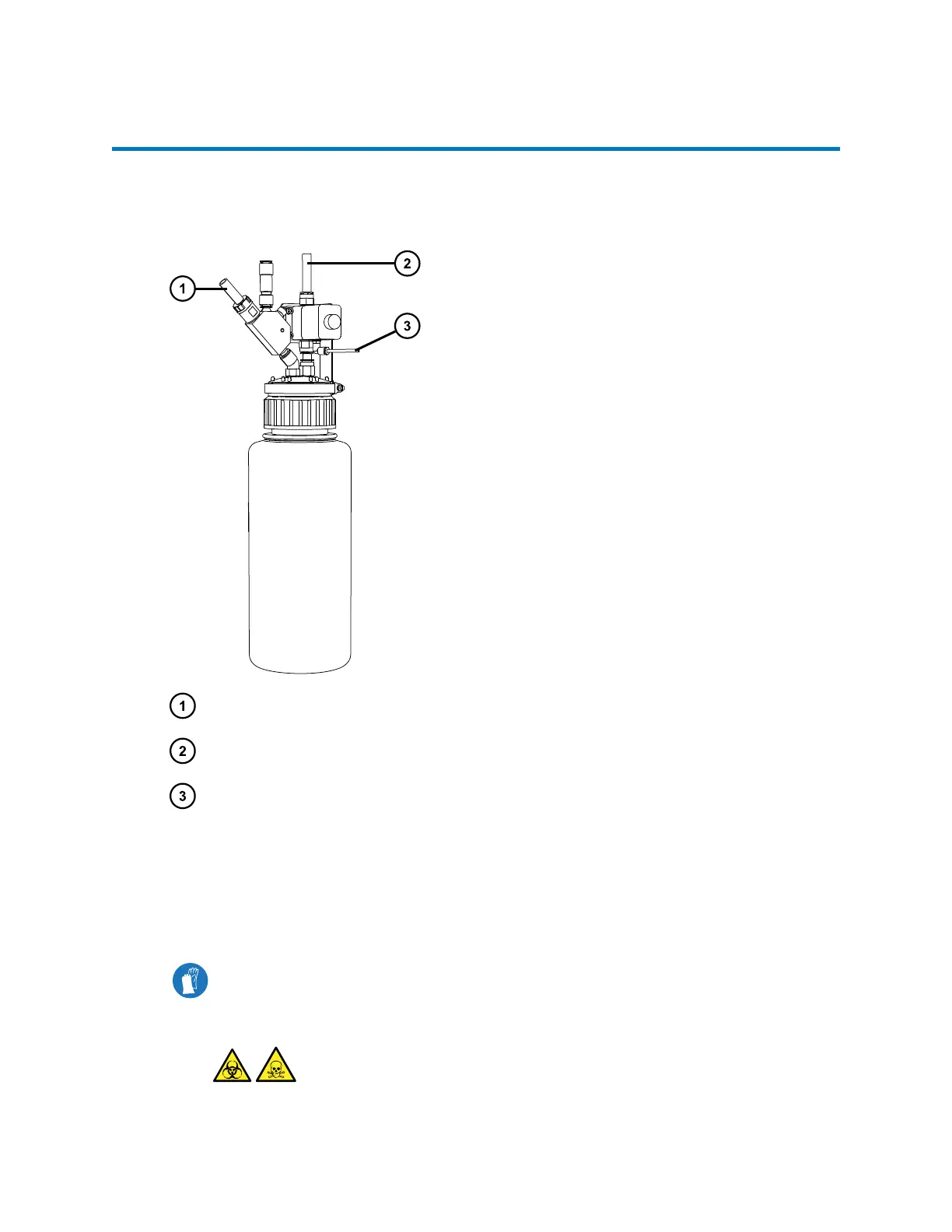

Figure 3–27: Source exhaust trap bottle
From pinch valve assembly (3/8-inch I.D. convoluted tubing)
To laboratory exhaust port (12-mm O.D.)
4-mm nitrogen line from the pinch valve assembly to the pilot valve.
Required tools and materials
• Chemical-resistant, powder-free gloves
To empty the source exhaust trap bottle:
Requirement: Wear clean, chemical-resistant, powder-free gloves when performing
this procedure.
1. In the software, stop the LC flow.
August 20, 2021, 715005003 Ver. 04 (Previously released as Revision C)
Page 60
