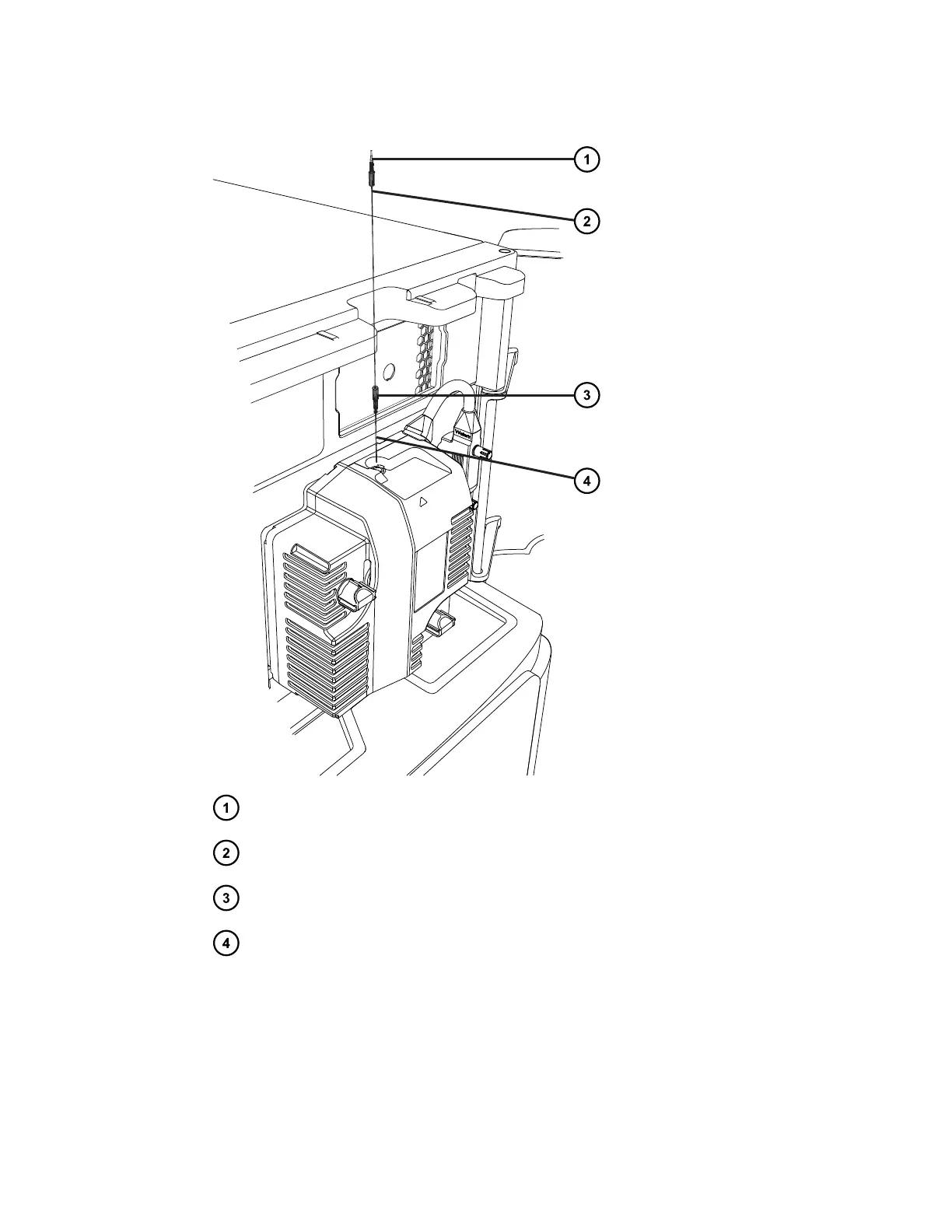

Figure B–1: Inserting the probe
PEEK fitting
Probe capillary assembly
Probe fitting
Capillary
2. Fit the PEEK fitting end of the probe capillary assembly to the port S on the divert valve
and secure until finger-tight.
Important: To avoid dead volumes, ensure that the capillary bottoms out in the valve.
3. To avoid trapping and damaging the capillary in the instrument door, slide the capillary
beneath the retaining clips.
August 20, 2021, 715005003 Ver. 04 (Previously released as Revision C)
Page 79
