• NW25 O-ring (included in the installation kit)
• PVC exhaust tubing (included in the installation kit)
• PVC hose clamps (included in the installation kit)
• 25-mm ID vacuum hose (included in the installation kit)
Warning: To avoid personal contamination with biologically hazardous or toxic compounds,
wear clean, chemical-resistant, powder-free gloves when performing this procedure.
Notice: To ensure the correct operation of the backing pump, it must be installed
within one degree of horizontal.
Notice: The area where the backing pump is located must have an ambient
temperature of 15 to 40 ºC (59 to 104 ºF).
Note: To ensure proper ventilation, the pump must be installed with the following minimum
clearances:

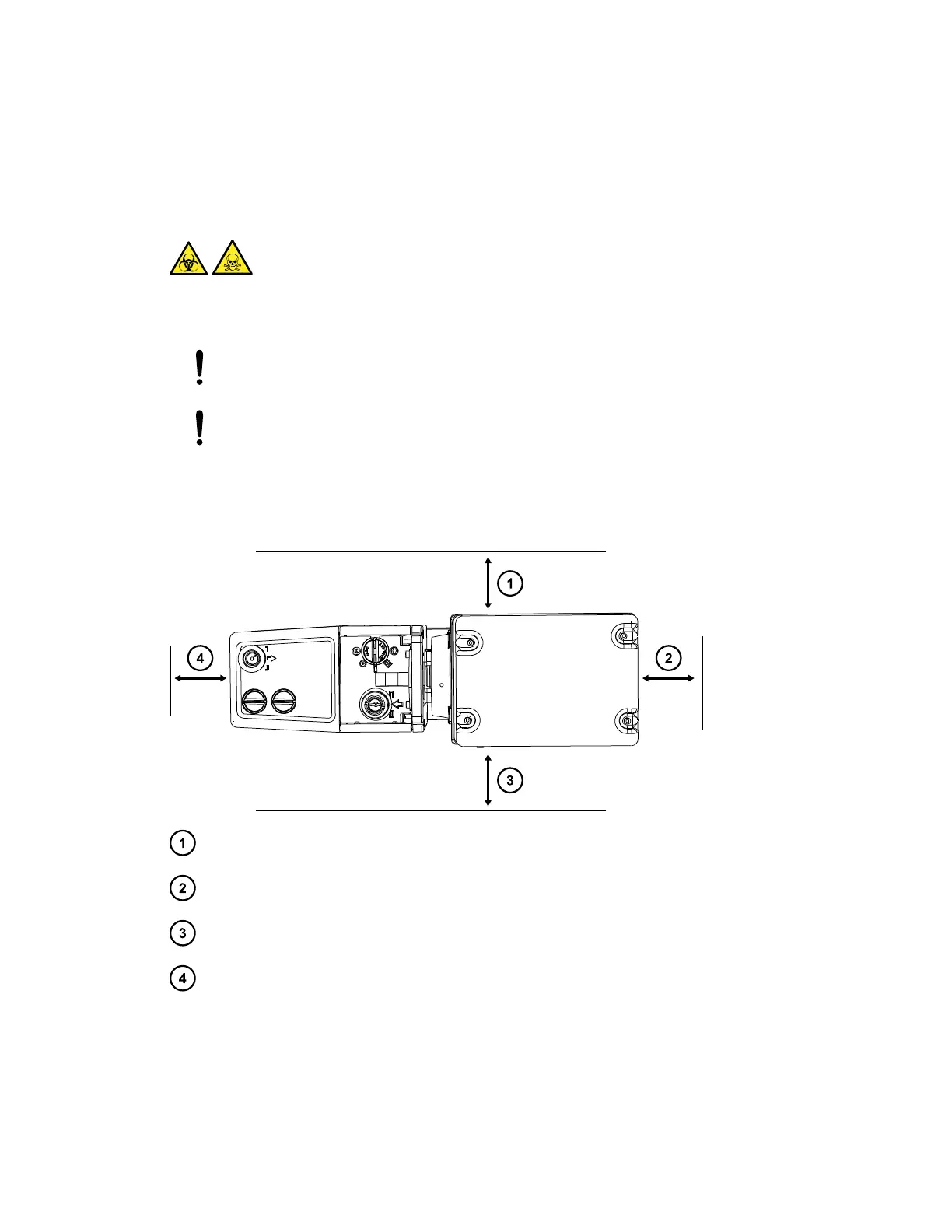

Figure D–3: Backing pump clearance
Left-side minimum clearance is 15.0 cm (5.9 inches)
Back-side minimum clearance is 15.0 cm (5.9 inches)
Right-side minimum clearance is 15.0 cm (5.9 inches)
Front-side minimum clearance is 35.0 cm (13.8 inches)
