• 6-mm stud
• Nitrogen regulator
• PTFE tube cutter
• Wrench
To connect the nitrogen gas supply:
Requirement: Wear clean, chemical-resistant, powder-free gloves when performing
this procedure.
Notice: To avoid gas leaks, use the tube cutter to cut the PTFE tubing squarely.
1. Use the tube cutter to cut a length of 6-mm PTFE tubing long enough to connect the rear
of the instrument to the nitrogen regulator.
2. Connect one end of the 6-mm PTFE tubing to the nitrogen inlet port on the rear of the
instrument.

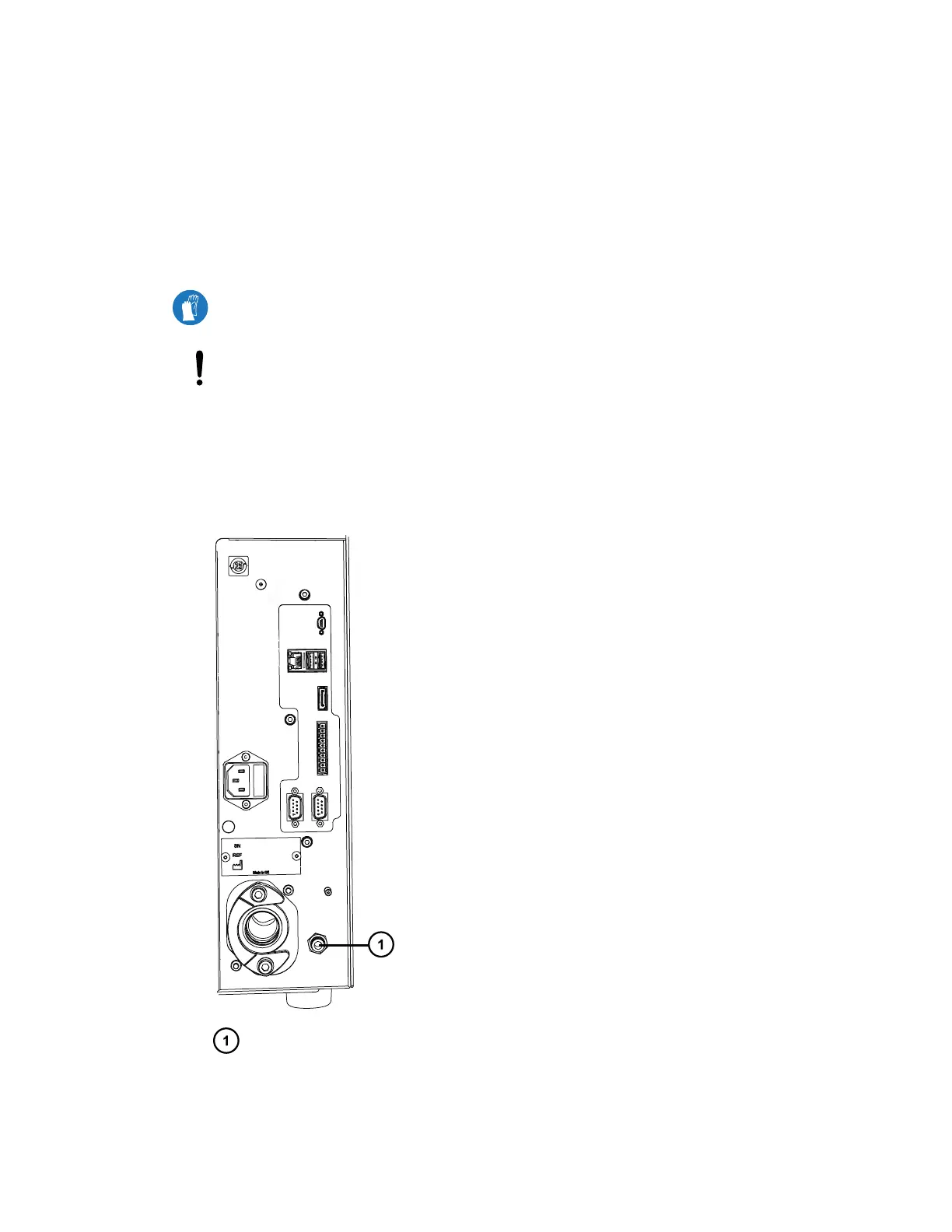

Figure D–5: Location of nitrogen inlet port
Nitrogen Inlet port
3. Attach the nitrogen regulator to the nitrogen supply.
4. Install the 6-mm stud into the regulator outlet.
