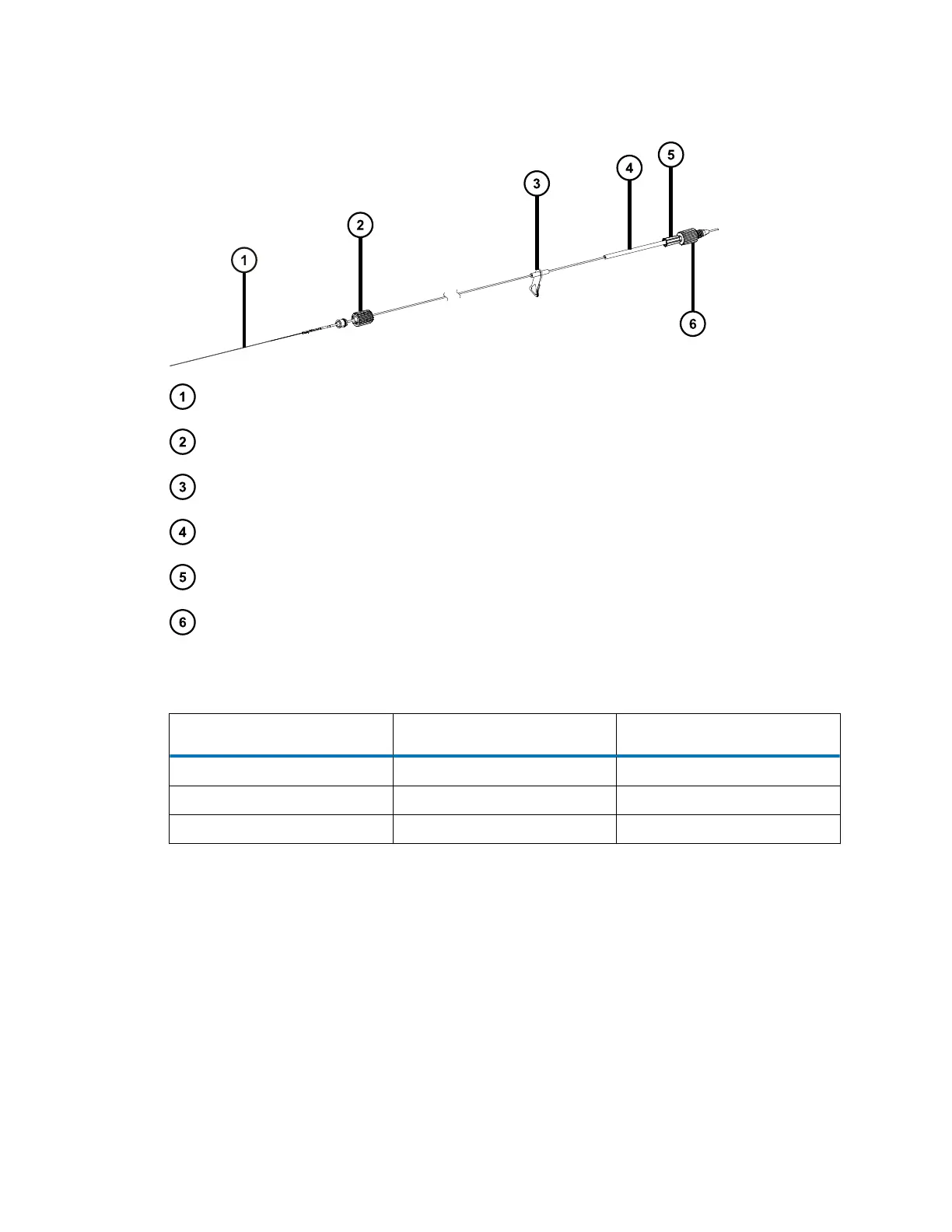

Figure 3–3: Probe assembly
Capillary
Probe adapter PEEK fitting
Warning label
Identification label (includes part number and size information)
Fitting spring retainer
Probe inlet fitting
For ESCi and APCI modes, you must also install a corona pin.
Table 3–1: Configuration for ESI/ESCi/APCI modes
Mode Probe adapter Install corona pin
ESI ESI No
ESCi ESI Yes
APCI APCI Yes
For more information on using each mode, see the Xevo TQ-S cronos system online Help.
The following sections explain how to complete the following tasks:
• Installing the probe adapter (Page 51)
• Installing the probe assembly (Page 54)
• Removing the probe adapter (Page 64)
• Installing and removing the corona pin (Page 65)
