• The high-voltage warning label does not appear on all probe assemblies.
• The fitting used for ACQUITY UPC² systems differs from the probe inlet fitting shown
here. See Connecting the probe assembly to a UPC² system (Page 62).
Required materials
• Chemical-resistant, powder-free gloves
To install the probe assembly:
Warning: To avoid personal contamination with biologically hazardous or toxic compounds,
wear clean, chemical-resistant, powder-free gloves when performing this procedure.
Warning: To avoid electric shock, do not insert any item into the probe cap aperture
when the probe cap is fitted to the instrument.
Notice: To avoid damaging the probe assembly, take care when inserting the capillary
into the probe adapter. Do not use force.
Warning: To avoid harmless, static-like electric shock, ensure that the mass
spectrometer is in Standby mode before you touch any of its external surfaces that are
marked with this high-voltage warning symbol.
1. To prepare for installing a probe assembly, press together the probe-adapter-cap release
buttons, in the direction shown by the arrows in the following figure, and lift the probe
adapter cap off the probe adapter.

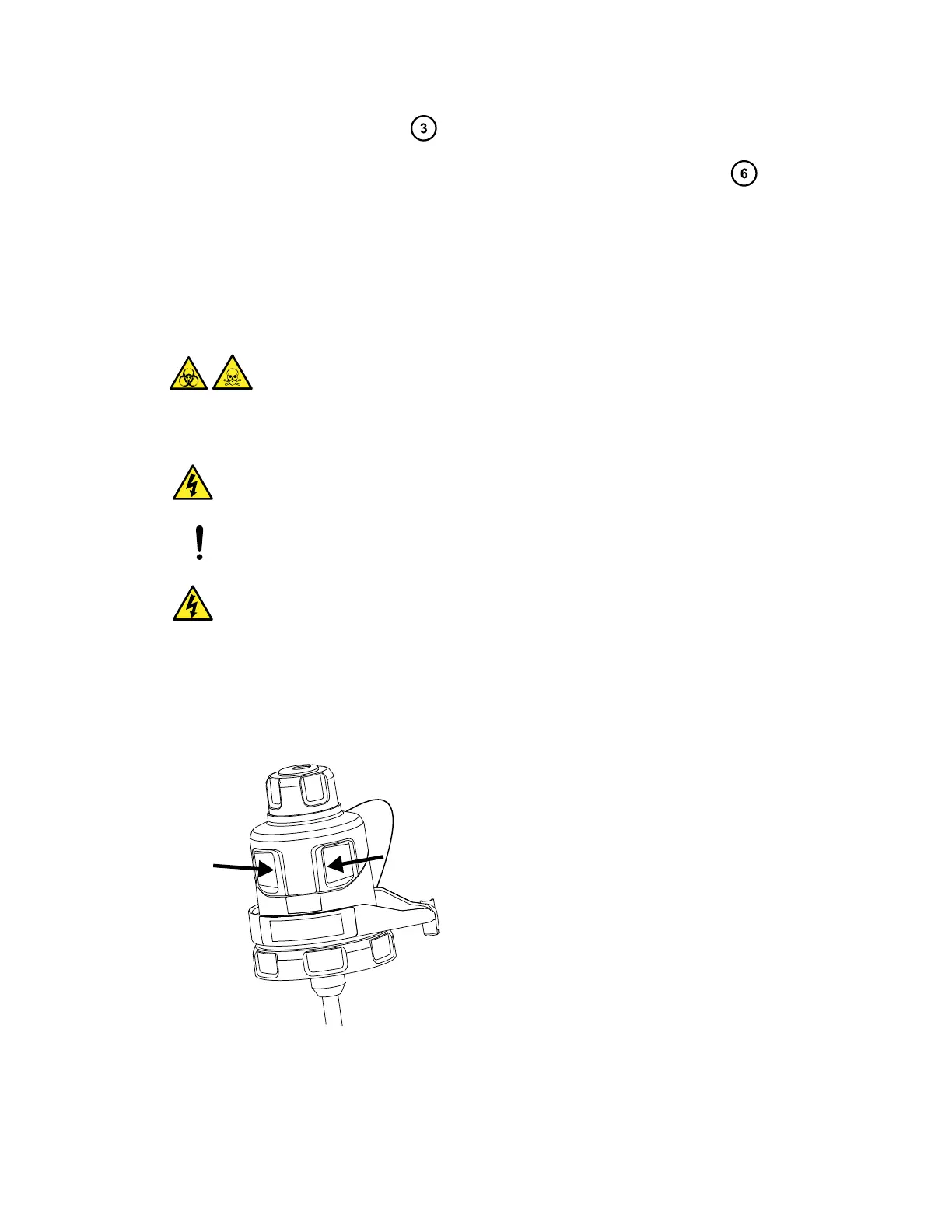

Figure 3–11: Probe adapter cap release
2. Carefully insert the probe assembly capillary into the probe adapter.
Tip: To aid insertion, turn the capillary gently as you insert it, feeding the entire capillary
into the probe adapter.
