Waters Xevo TQ-S micro User Manual

Replacing the ESI probe tip and gasket
January 11, 2016, 715004599 Rev. B 151
To remove the existing capillary:
1. Remove the probe from the source enclosure (see page 59).

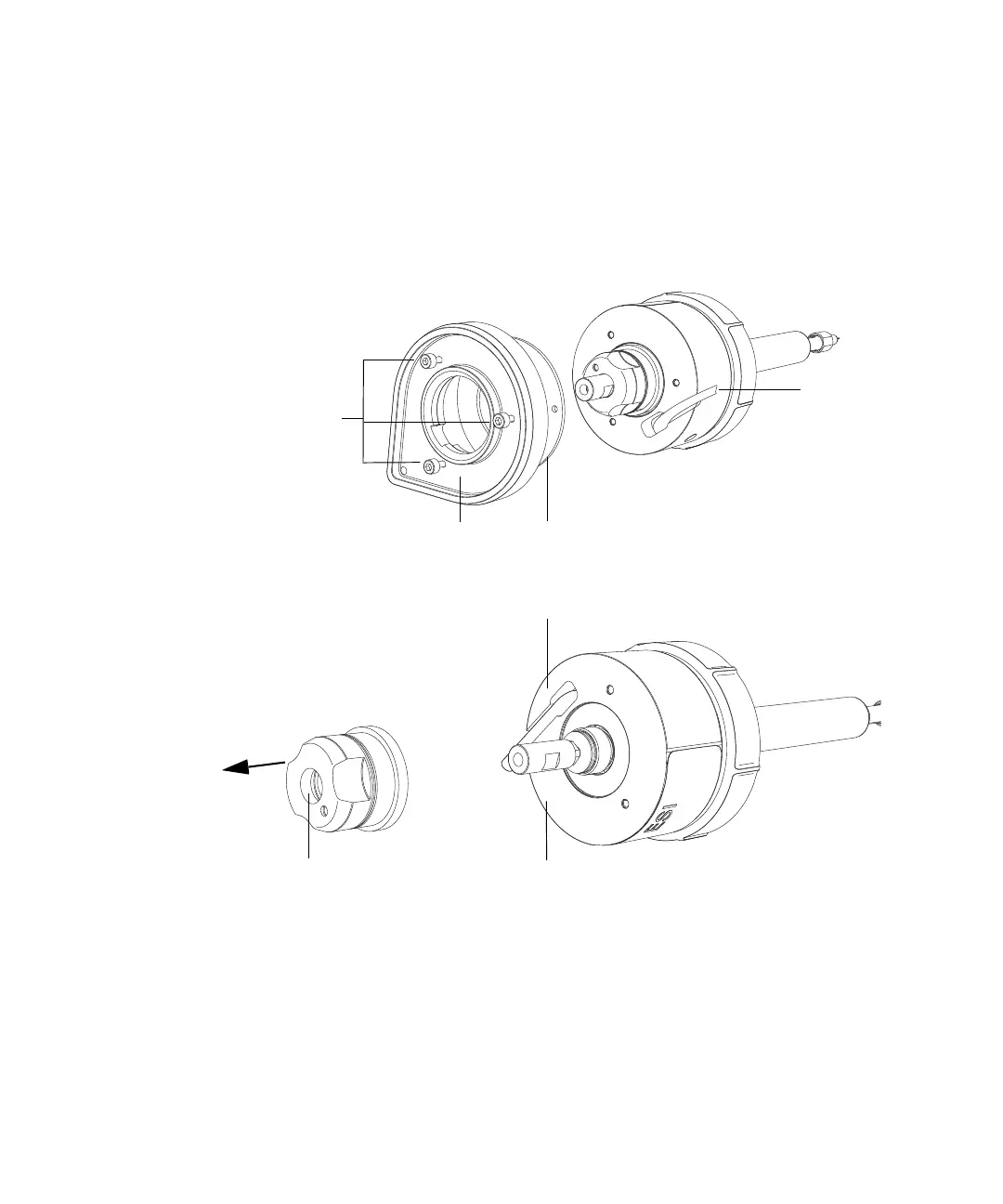

2. Use the 2.5-mm Allen wrench to loosen the three captive screws securing the
probe’s end cover in place, and then remove the end cover and rubber gasket.
Tip:
The end cover is secured by captive screws that you need not remove from the end
cover of the probe. Simply loosen them to remove the end cover.
3. Unscrew and remove the nebulizer adjuster knob.
Captive screws
End cover
Rubber gasket
Probe cable
Nebulizer adjustor knob
ESI probe
Probe cable
