3 Changing the Mode of Operation
72 January 11, 2016, 715004599 Rev. B
7. Fit the blanking plug to the pin’s mounting contact.
NanoFlow source
The NanoFlow source enclosure comprises the NanoFlow stage (for x-axis, y-axis, and
z-axis adjustment), the sprayer-enclosure, and a microscope camera.

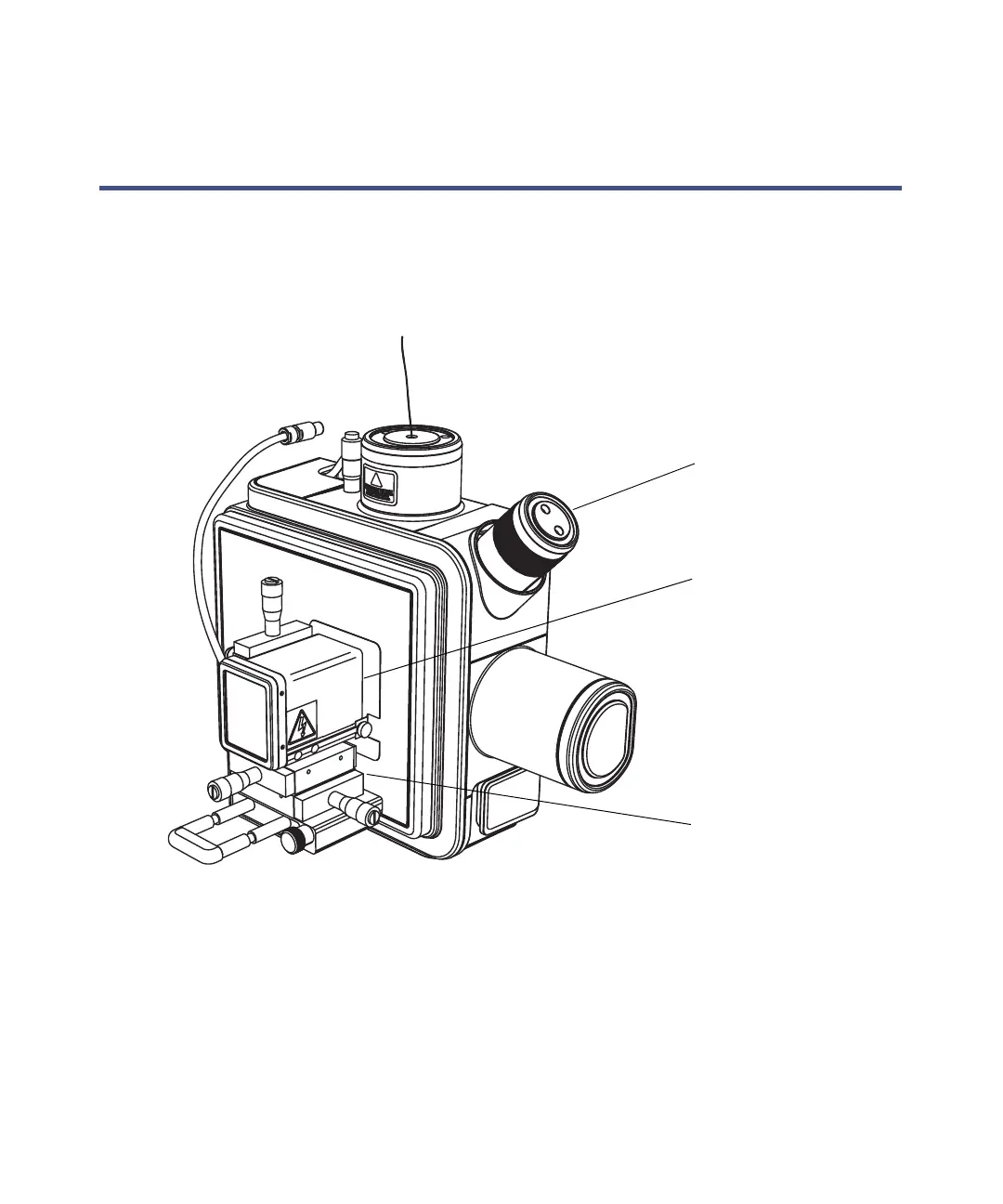

NanoFlow source, stage and microscope camera:
A sprayer is mounted on an X, Y, Z stage (three-axis manipulator) that slides on a pair of
guide rails that allow its withdrawal from the source enclosure for maintenance and
changes.
A light within the source provides illumination for the spray, which you can observe using
the microscope camera mounted on the corner of the source housing.
X, Y, Z stage
Microscope Camera
Sprayer enclosure
