23 Sensors
Sensors can be connected to the pump to display the value, warnings and errors on pressure and or
flow as selected.
Attached sensors allow the user to configure warning and alarm set points on the pump.
Each pump can support a maximum of one flow sensor and one pressure sensor at the same time.

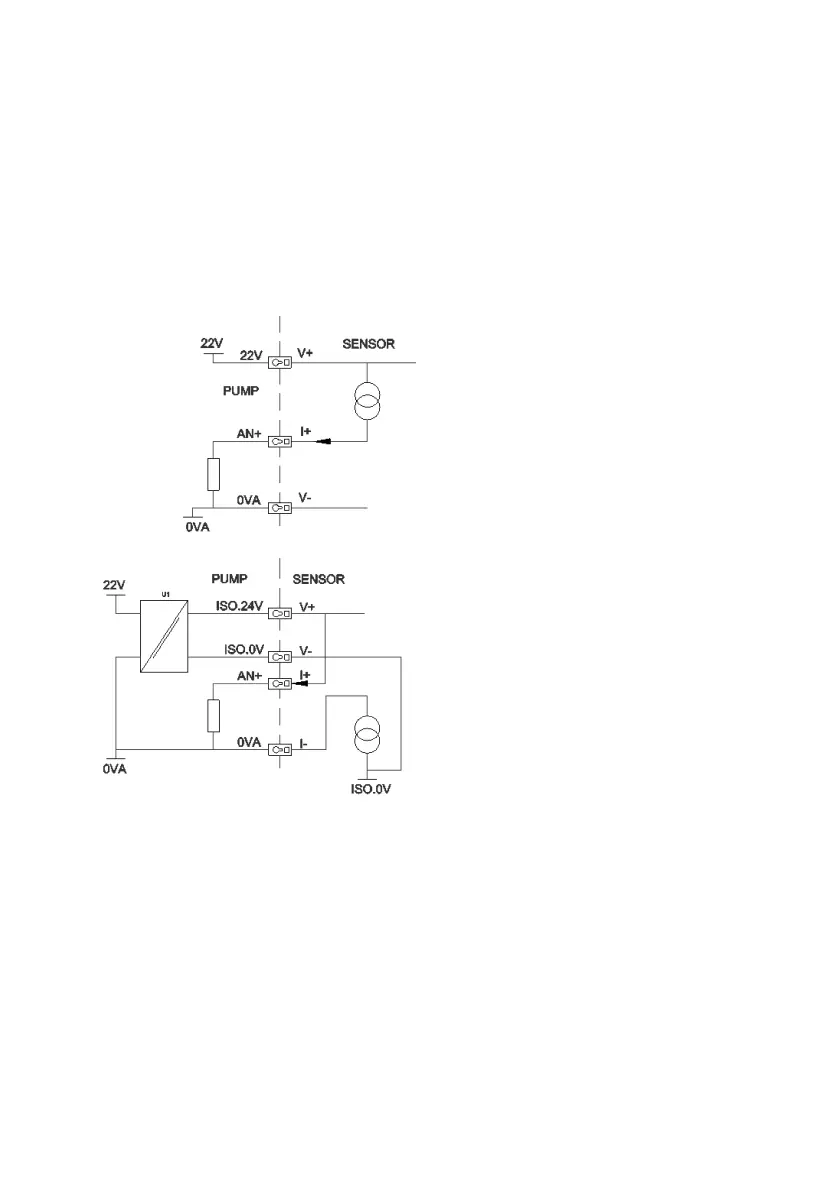

23.1 Sensor wiring
Make sure the sensor is correctly wired to the pump before proceeding with set up. ("Sensor Wiring -
IP31" on page52 or "Input/output connectors - IP66" on page60).
m-630un-en-08 113
