18.2 STOP

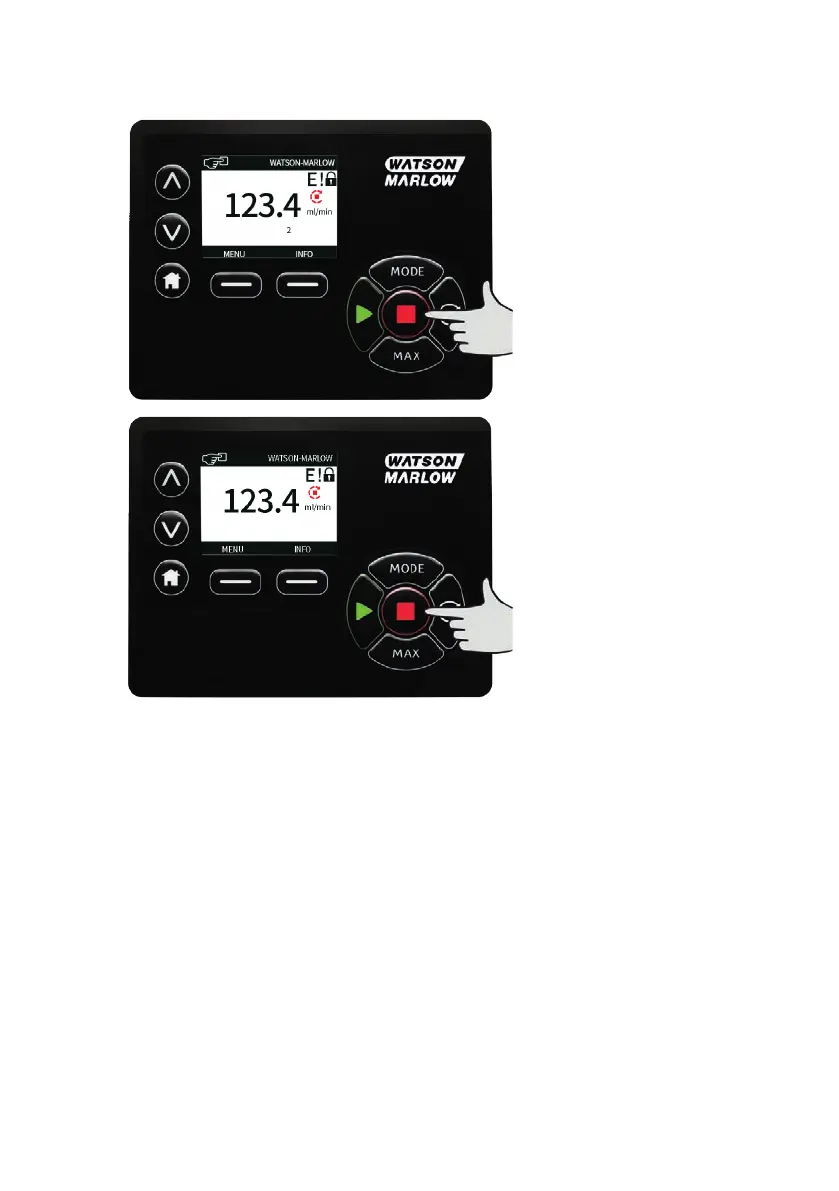

Stops the pump. The display background changes to white. If the pump is not running pressing this has

no effect.
