17 Mode menu

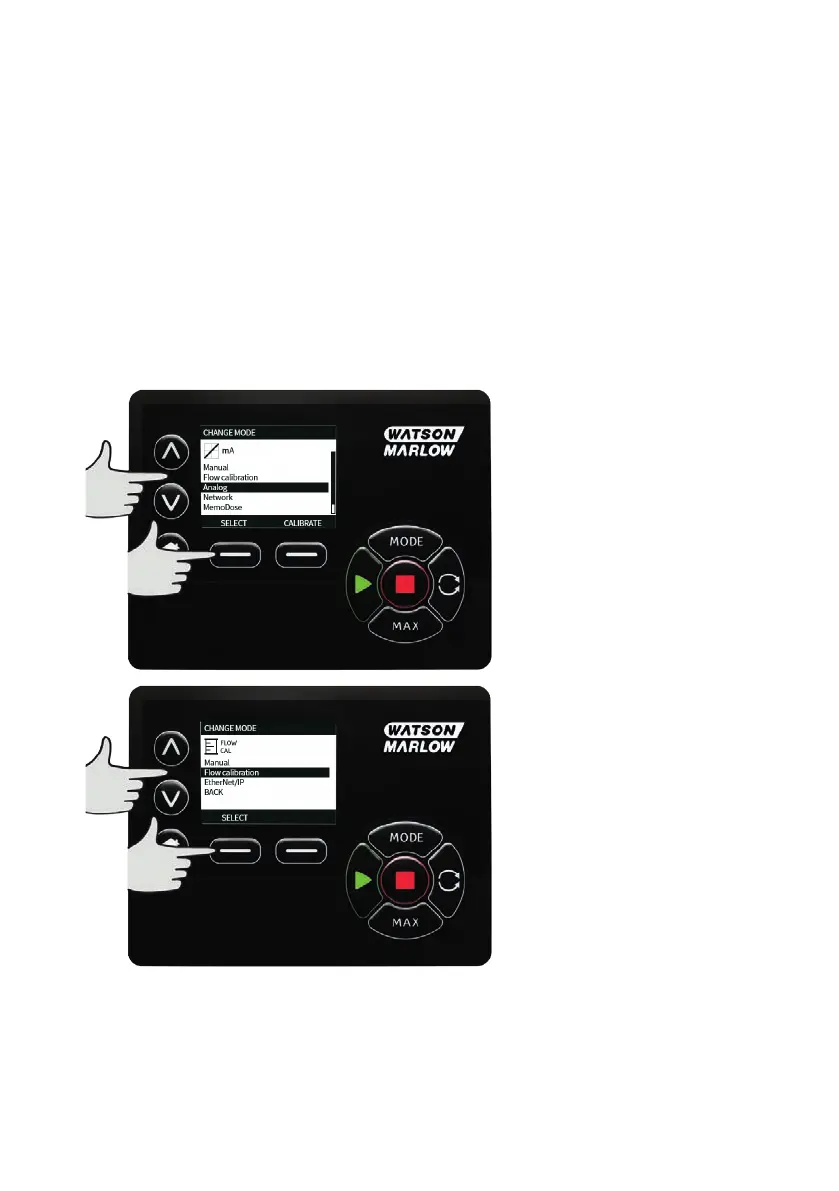

Press MODE to display the Change mode menu.

Use the ∧ and ∨ keys to scroll through the available modes.

• Manual(default)

• Flow calibration

• Analog

• Memodose

• EtherNet/IP™

• CANCEL

Use SELECT to choose mode. Use the right hand function key to alter mode settings.
