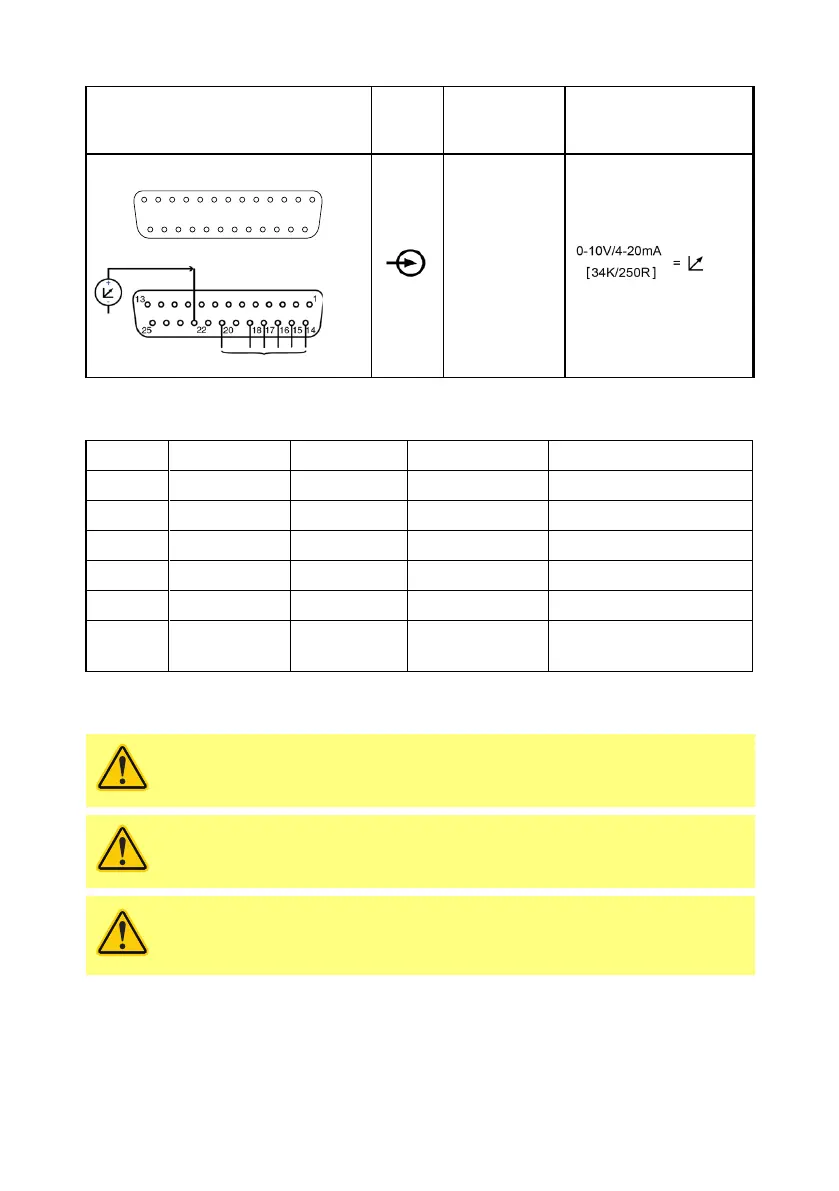

Function
Input
or
output
Configurable Signal response
ANALOG 2
No
13.4 Standard - 25 way D: power supply limits
Signal Connector Pin numbers Voltage Load
5V Ref Upper 18, 19 5V @ no load Total of all pins 10mA max
Lower 9, 19, 23
12V Ref Upper 21 12V @ no load Total of all pins 10mA max
Lower 25
10V Ref Lower 21 10V @ no load Minimum load 4K7 ohms
VAUX Upper 21 Nom 22V (18-35V
unregulated)
10mA Nom (100mA fused)
13.5 N - Modules Standard and SCADA
The recommended cable and cable glands must be used for the IP66 (NEMA
4X) version of the pump; otherwise ingress protection may be impaired.
Ensure that the module cover is correctly secured at all times by all screws
supplied. Failure to do so may compromise the IP66 (NEMA4X) protection.
Ensure that unused openings on the module are sealed using the blanking
plugs provided. Failure to do so may compromise the IP66 (NEMA 4X)
protection.
32 m-630un-en-08
