Watson-Marlow 630 U - Page 147

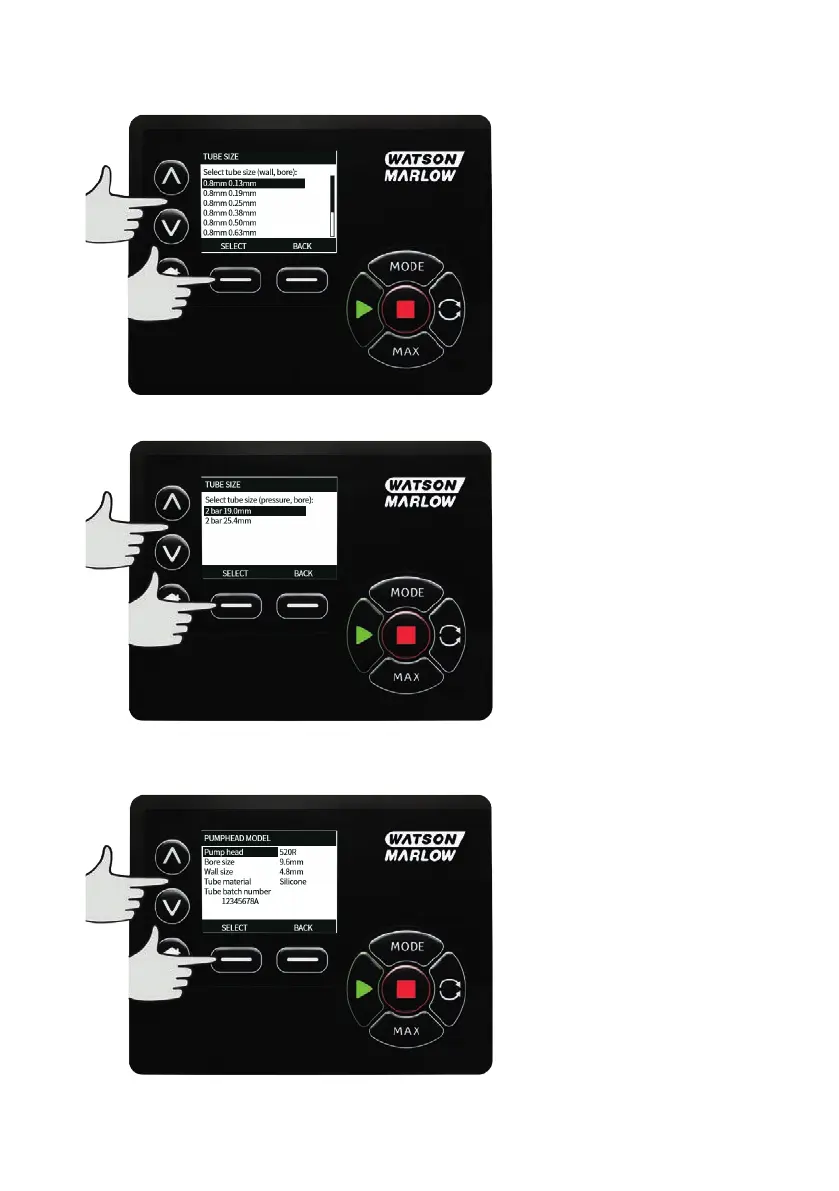

Use the ∧ /∨ keys to move the selection bar over the tube size to be used and press SELECT.
If a LoadSure element has been selected then the tube size is displayed as pressure and bore.
This screen also allows you to select the tube material used.
Use the ∧ /∨ keys to move the selection bar over Tube material and press SELECT.
m-630un-en-08 147
