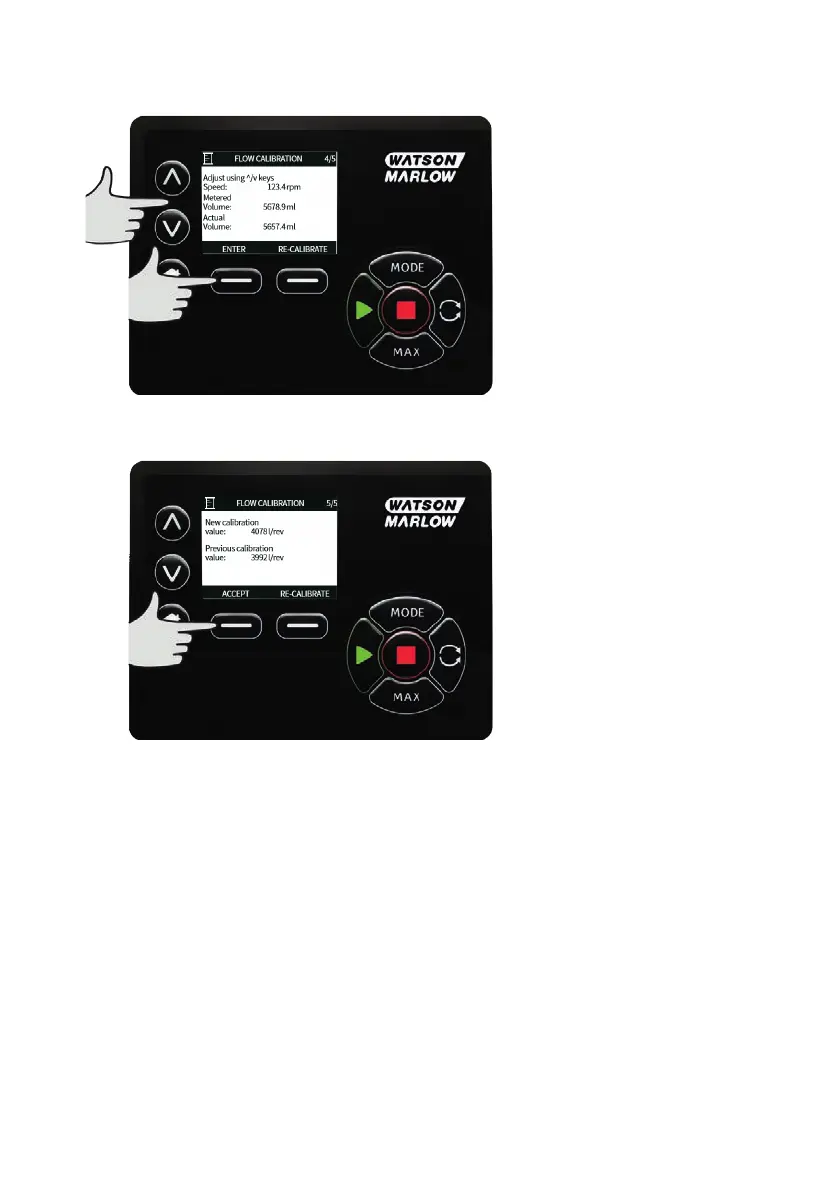

Use the ∧ /∨ keys to enter the actual volume of fluid pumped.

To accept the new calibration press ACCEPT or RE-CALIBRATE to repeat the procedure. Press HOME or

MODE to abort.

The pump is now calibrated.

m-630un-en-08 75
