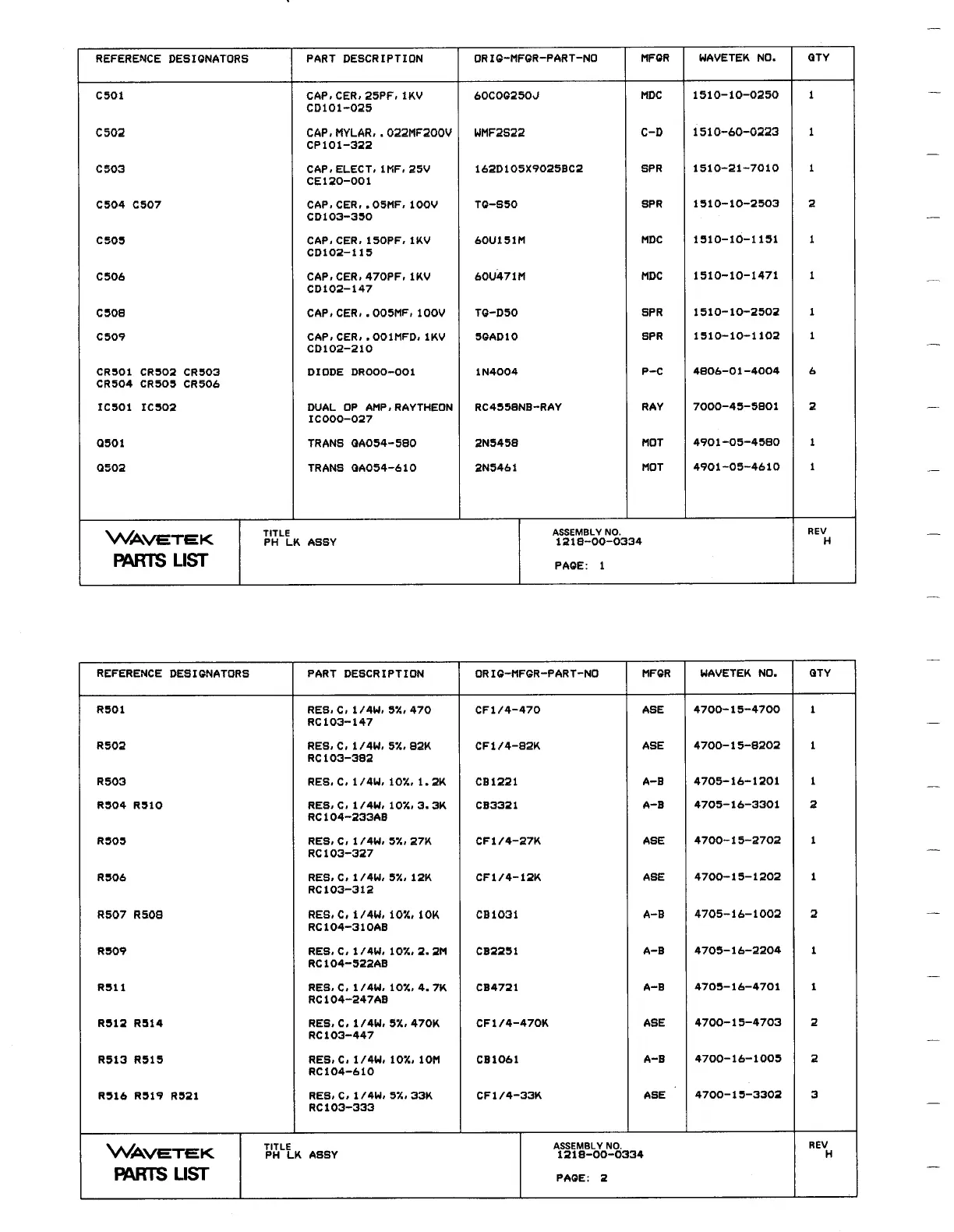

REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO
. OTY
C501 CAP,CER .25PF,IKV 6000G250J MDC 1510-10-0250
1
CDIOI-025
C502 CAP,MYLAR . .022MF200V WMF2S22 C-D
1510-60-0223 1
CPIOI-322
C503 CAP .ELECT.IMF,25V 162D105X9025BC2 SPR
1510-21-7010 1
CE120-001
C504 C507 CAP,CER, .05MF .100V TG-S50
SPR 1510-10-2503 2
CD103-350
C505 CAP,CER,150PF .IKV 60U151M
MDC 1510-10-1151 1
CD102-115
C506 CAP,CER,470PF,lKV 60U471M MDC
1510-10-1471 1
CD102-147
C508
CAP
.CER, .005MF,100V TG-D50 SPR 1510-10-2502 1
C509 CAP .CER . .OOIMFD .IKV
5GAD10 SPR 1510-10-1102 1
C0102-210
CR501 CR502 CR503 DIODE DR000-001 1N4004 P-C
4806-01-4004 6
CR504 CR505 CR506
IC501IC502 DUAL OP AMP .RAYTHEON RC4558NB-RAY RAY
7000-45-5801 2
ICOOO-027
0501 TRANS OA054-580 2N5458
MOT 4901-05-4580 1
0502 TRANS GA054-610
2N5461 MOT 4901-05-4610 1
TITLE ASSEMBLY NO .
REV
WAVETEK
PH LK ABBY 1218-00-0334
H
PARTS LIST
PAGE : 1
REFERENCE
DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO
MFGR WAVETEK NO . OTY
R501 RES,C,1/4W .5% .470 CF1/4-470 ASE 4700-15-4700
1
RC103-147
R502 RES .C,1/4W,5% .82K CF1/4-82K ASE 4700-15-8202 1
RC103-382
R503 RES .C .1/4W .10% .1 .2 K CB1221 A-B 4705-16-1201 1
R504R510 RES .C,1/4W .10%,3 .3K C83321 A-B
4705-16-3301 2
RC104-233AB
R505 RES .C,1/4W .5% .27K CF1/4-27K ASE
4700-15-2702 1
RC103-327
R506 RES . C, 1/4W . 5'/ . . 12K CFI/4-12K ASE 4700-15-1202 1
RC103-312
R507 R508 RES,C,1/4W .10X.IOK CB1031 A-B 4705-16-1002 2
RC104-310AB
R509 RES .C
.1/4W
.10X .2 .2 M CB2251
A-B 4705-16-2204 1
RC104-522AB
R511 RES, C . 1/4W . 10%,4 . 7K CB4721 A-B
4705-16-4701 1
RC104-247AB
R512R514 RES .C .1/4W .5X .470 K CF1/4-470K ASE
4700-15-4703 2
RC103-447
R513 R515 RES .C .1/4W,10% .IO M CB1061 A-B
4700-16-1005 2
RC104-610
R516R519 R521 RES .C .1/4W .5%.33 K CFI/4-33K ASE
4700-15-3302 3
RC103-333
TITLE
ASSEMBLYNO . REV
WAVE PH LK ABBY 1218-00-0334 H
PAM LIST
PAGE : 2
