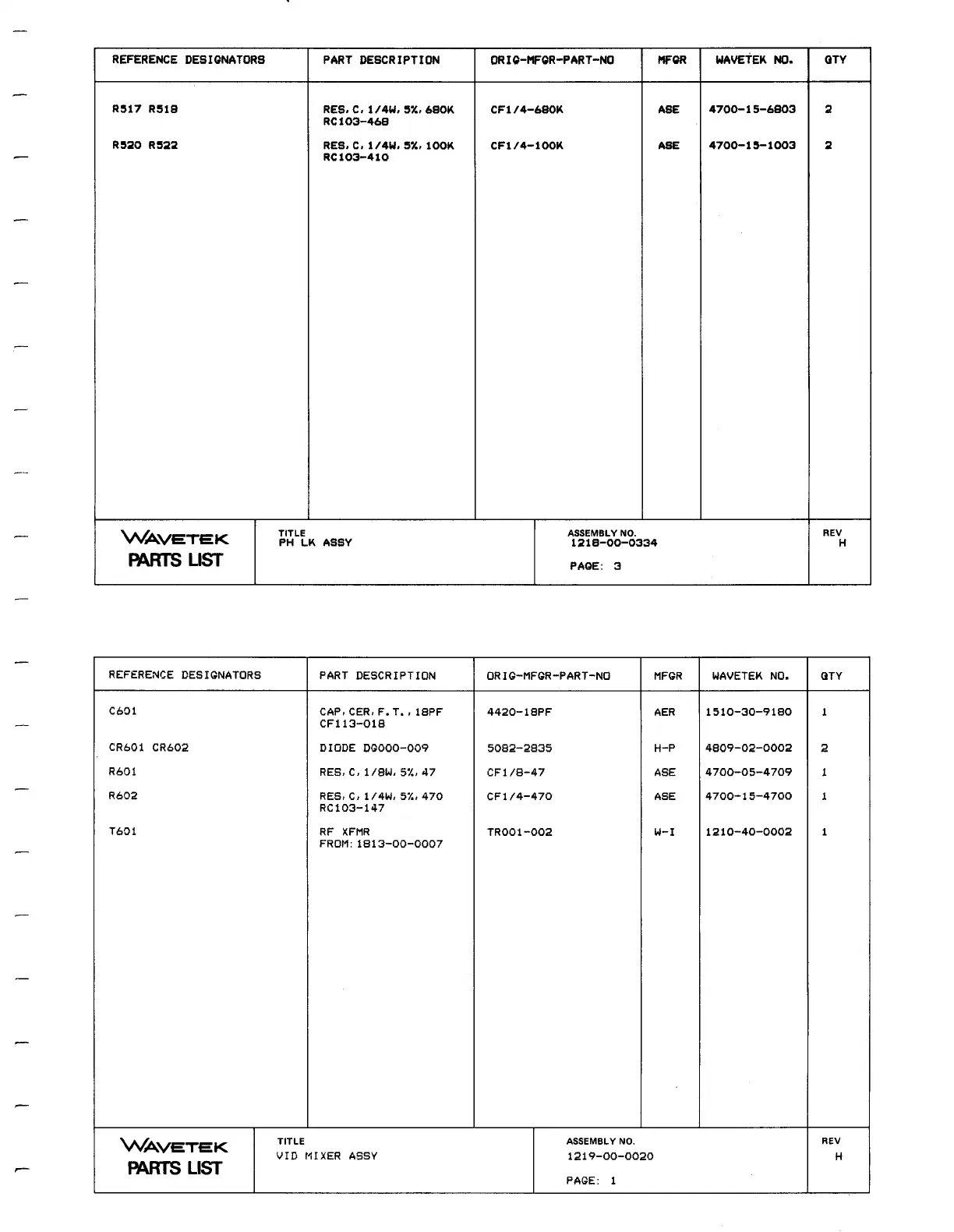

Wavetek 3000 - Page 134

REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . QTY
R517 R518 RES .C,1/4W,5%,680K CF1/4-680K ASE 4700-15-6803 2
RC103-468
R520 R522 RES,C .1/4W,5%,IOOK CF1/4-LOOK ASE 4700-15-1003 2
RC103-410
WAVETEK
TITLE ASSEMBLY N0 . REV
PH
LK
ASSY
1218-00-0334 H
PARTS LIST
PAGE : 3
REFERENCE
DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
C601 CAP,CER,F .T .,18PF 4420-18PF AER 1510-30-9180 1
CF113-018
CR601 CR602 DIODE D0000-009 5082-2835 H-P 4809-02-0002 2
R601 RES,C,1/8W,5%,47 CFI/8-47 ASE 4700-05-4709 1
R602 RES, C, 1 /4W, 5'/ ., 470 CF1 /4-470 ASE 4700-15-4700 1
RC103-147
T601 RF XFMR TROOI-002 W-I 1210-40-0002 1
FROM :1813-00-0007
WAVETEK
TITLE ASSEMBLY NO . REV
VID MIXER ASSY 1219-00-0020 H
PARTS LIST
PAGE : 1
