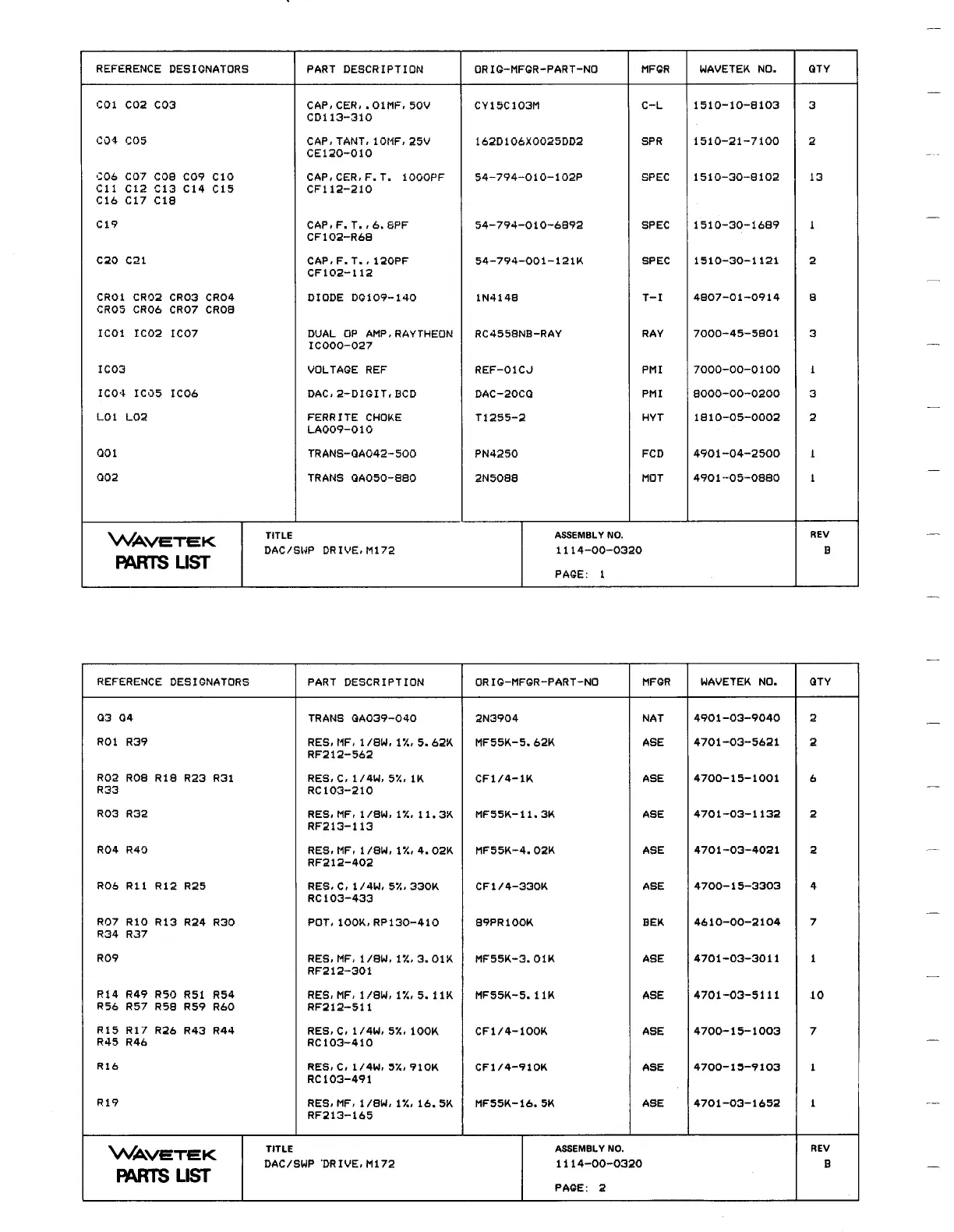

REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
C01 C02 C03 CAP,CER, .01MF,50V CY15C103M C-L 1510-10-6103 3
CD113-310
C04 C05 CAP,TANT,IOMF,25V 162D106XOO25DD2 SPR 1510-21-7100 2
CE120-010
' :06 CU7 008 C09 C10 CAP,CER,F .T . 1000PF 54-794-010-102P SPEC 1510-30-8102 13
C11 C12 C13 C14 C15 CF112-210
C16 C17 CIS
C19
CAP,F .T .,6 .BPF 54-794-010-6892 SPEC 1510-30-1689 1
CF102-R68
C20 C21 CAP,F .T .,120PF 54-794-001-121K SPEC 1510-30-1121 2
CF102-112
CROI CR02 CR03 CR04 DIODE DG109-140 lN4148 T-I 4807-01-0914 6
CRO5 CR06 CR07 CR08
ICOI IC02 IC07 DUAL OP AMP,RAYTHEON RC4558NB-RAY RAY 7000-45-5801 3
I0000-027
IC03
VOLTAGE REF REF-01CJ PMI 7000-00-0100 1
ICO4 IC05 IC06 DAC,2-DIGIT,BCD DAC-2000 PMI 8000-00-0200 3
L01 L02 FERRITE CHOKE T1255-2 HYT 1810-05-0002 2
LA009-010
001
TRANS-GA042-500 PN4250 FCD 4901-04-2500 1
002 TRANS GA050-880 2N5088 MOT 4901-05-0880 1
WAVETEK
TITLE
ASSEMBLY
NO .
REV
DAC/SWP DRIVE,M172 1114-00-0320 B
PARTS LIST
PAGE : 1
REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . 0TY
03 04 TRANS GA039-040 2N3904 NAT 4901-03-9040 2
R01 R39
RES, MF, 1 /8W, 1'/ ., 5 . 62K MF55K-5 . 62K ASE 4701-03-5621 2
RF212-562
R02 ROB RIB
R23 R31 RES,C,1/4W,5'%,IK CFi/4-iK ASE 4700-15-1001 6
R33
RC103-210
R03 R32
RES,MF,1/BW,I%,11 .3K MF55K-11 .3K ASE 4701-03-1132
2
RF213-113
R04
R40 RES,MF,1/BW,IG,4 .02K MF55K-4 .02K ASE 4701-03-4021 2
RF212-402
R06
R11 R12 R25 RES,C,1/4W,5R,330K CFI/4-330K ASE 4700-15-3303 4
RC103-433
R07 RIO R13 R24 R30 POT,IOOK,RP130-410 89PRIOOK BEK 4610-00-2104 7
R34 R37
R09
RES, MF, 1/BW, 1'/ ., 3 . OIK MF55K-3 . OIK ASE
4701-03-3011 1
RF212-301
P14 R49 RSO
R51 R54 RES,MF,1/8W,1'/ .,5 .IIK MF55K-5 .IIK ASE 4701-03-5111 10
R56 R57 R58 R59 R60 RF212-511
P15 R17 R26 R43 R44
RES,C,1/4W,5%,100K CFI/4-LOOK ASE 4700-15-1003 7
R45 R46 RC103-410
R16
RES,C,1/4W,5%,910K CF1/4-910K ASE 4700-15-9103 1
RC103-491
R19 RES, MF, 1 . /8W, 1'/ ., 16 . 5K MF55K-16 . 5K ASE 4701-03-1652 1
RF213-165
WAVETEK
TITLE ASSEMBLY NO . REV
DAC/SWP 'DRIVE,M172 1114-00-0320 B
PARTS LIST
PAGE : 2
