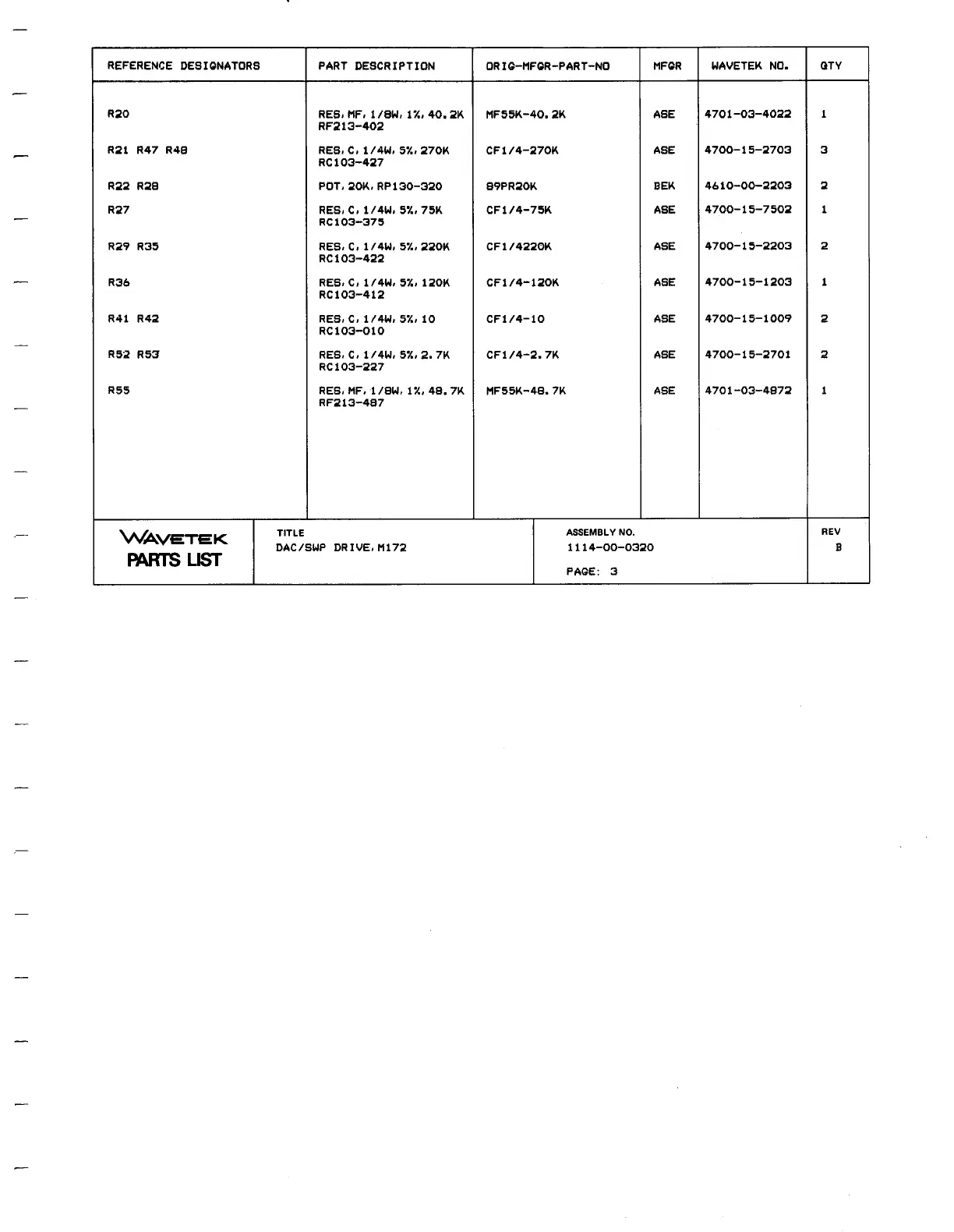

REFERENCE DESIGNATORS PART DESCRIPTION ORIG-MFGR-PART-NO MFGR WAVETEK NO . QTY
R20 RES.MF .1/BW .1%.40 .2 K MF55K-40 .2K ASE 4701-03-4022 1
RF213-402
R21 R47R48 RES,C,1/4W,5I .270K CF1/4-270K ASE 4700-15-2703 3
RC103-427
R22 R28 POT .20K .RP130-320 89PR20K BEK 4610-00-22032
R27 RES .C,1/4W,5L 75K CF1/4-75K ASE 4700-15-7502 1
RC103-375
R29R35 RES .C,1/4W,5% .220K CF1/4220K
ASE 4700-15-22032
RC103-422
R36 RES .C .1/4W .5R .120 K CF1/4-120K ASE 4700-15-1203
1
RC103-412
R41R42 RES . C, 1/4W, 5'/ . .10 CF1/4-10 ASE 4700-15-10092
RC103-010
R52R53 RES .C .1/4W,5'/ . .2 .7 K CFI/4-2 .7K ASE 4700-15-2701 2
RC103-227
R55 RES,MF .1/BW,IX .48.7K MF55K-48 .7K ASE 4701-03-4872 1
RF213-487
WAV
E
TEK
TITLE ASSEMBLY NO .
REV
DAC/SWP DRIVE .M172 1114-00-0320 B
PARTS LIST
PAGE : 3
