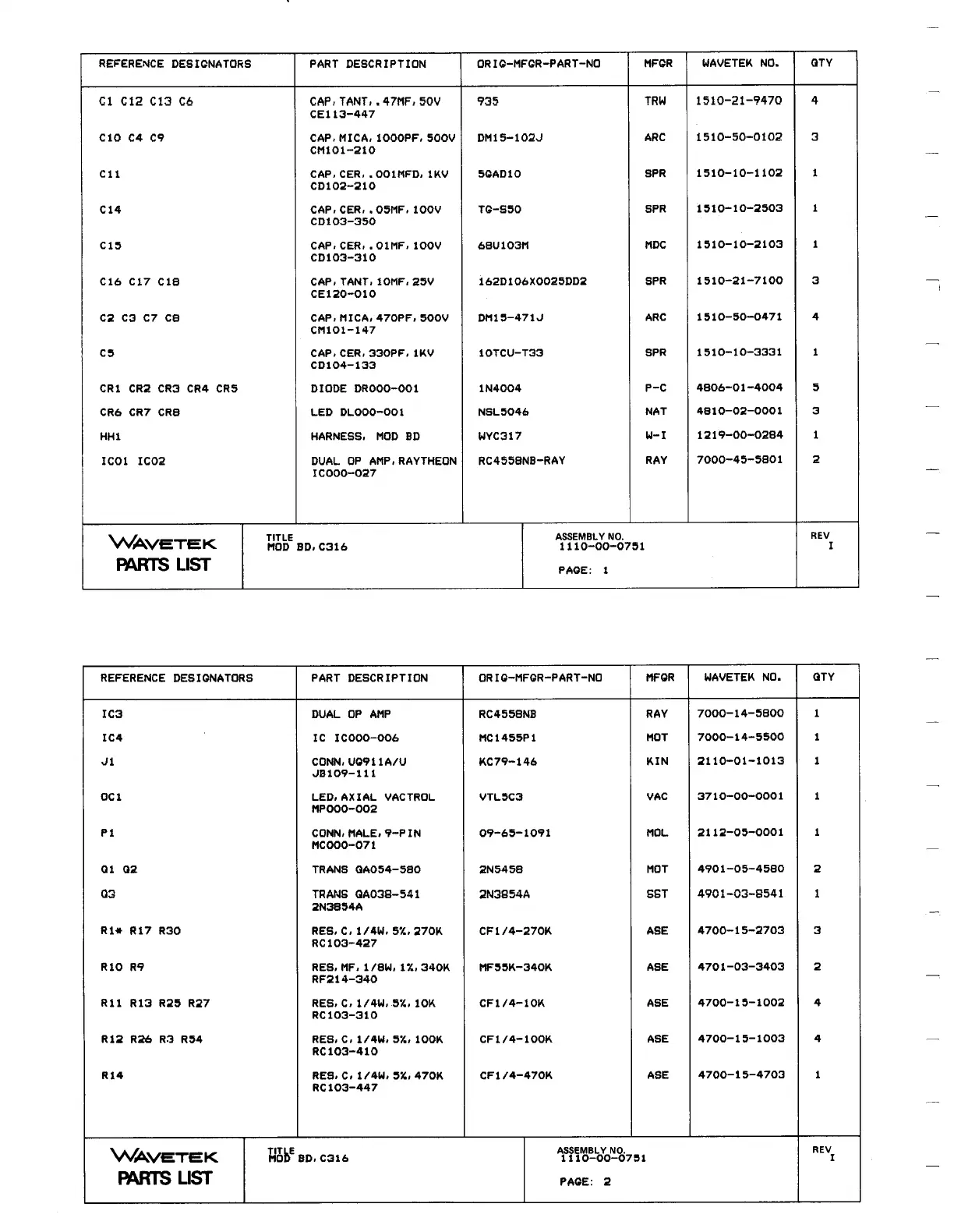

REFERENCE
DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
C1 C12 C13 C6 CAP)TANTo .47MF,50V 935 TRW
1510-21-9470 4
CE113-447
CIO C4 C9 CAP,MICA,1000PF,500V DM15-102J ARC 1510-50-0102
3
CMIOI-210
C11 CAP .CER . .OOIMFD .1KV 5GAD10 SPR 1510-10-1102
1
CD102-210
C14 CAP .CER, .05MF,100V TG-S50 SPR
1510-10-2503 1
C0103-350
C13 CAP .CER, .OIMF,IOOV 6BU103M MDC
1510-10-2103 1
CD103-310
C16 C17 CIS CAP .TANT,IOMF,25V 162Di06XO025DD2 SPR 1510-21-7100
3
CE120-010
C2 C3
C7
CS CAP
.MICA .470PF .SOOV DM15-471J ARC 1510-50-0471 4
CMIO1-147
C5 CAP,CER,330PF,IKV IOTCU-T33 SPR
1510-10-3331 1
CD104-133
CR1 CR2 CR3 CR4 CR5 DIODE DR000-001 1N4004
P-C 4806-01-4004 5
CR6 CR7 CRS LED DLOOO-001 NSL5046
NAT 4810-02-0001 3
HHI HARNESS . MOD
BD
WYC317 W-I 1219-00-0284 1
ICO1 IC02 DUAL OP AMP,RAYTHEON RC4558NB-RAY RAY
7000-45-5801 2
I0000-027
TITLE
ASSEMBLY NO . REV
WAVETEK
MOD
HD
.C316 1110-00-0751
I
PARTS LIST
PAGE : 1
REFERENCE
DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
IC3 DUAL OP AMP RC4558NB
RAY 7000-14-5800 1
IC4 IC ICOOO-006 MC1455P1
MOT 7000-14-5500 1
J1 CONN .UG911A/U KC79-146 KIN 2110-01-1013
1
J3109-111
OC1 LED .AXIAL VACTROL VTL5C3
VAC 3710-00-0001 1
MPOOO-002
Pi CONN .MALE .9-PIN 09-65-1091 MOL
2112-05-0001 1
MCOOO-071
01 02 TRANS GA054-580 2N5458 MOT 4901-05-4580 2
03 TRANS GA038-541 2N3854A SST 4901-03-8541 1
2N3854A
R1+
R17 R30 RES .C,1/4W,5% .270K CF1/4-270K ASE
4700-15-2703 3
RC103-427
RIO R9 RES .MF .1/BW,I%,340 K MF55K-340K ASE 4701-03-3403
2
RF214-340
R11 R13 R25 R27 RES .C .1/4W, .S%,IOK CFI/4-IOK ASE 4700-15-1002
4
RC103-310
R12 R26 R3 R54 RES .C,1/4W .57G .1OOK CFI/4-LOOK ASE 4700-15-1003
4
RC103-410
R14 RES .C .1/4W .57G .470
K
CFI/4-470K ASE 4700-15-4703 1
RC103-447
TITLE ASSEMBLY NO .
REV
WAVETEK
MOD BD .C316 1110-00-0751 I
PAM LIST PAGE : 2
