REFERENCE DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR WAVETEK NO . (ITY
R15*
RES,C,1/4W,5%,390KCF1/4-390K ASE 4700-15-3903 1
RC103-439
R16 R2 R37 R5
RES,C,1/4W,10%,10M CB1061 A-B 4700-16-1005 4
RC104-610
RIB* R4*
RES,C,1/4W,10%,5 .6M CB5651 A-B 4700-16-5604 2
RC104-556
R19 R20* R53
RES,C,1/4W,10%,22M CB2261 A-B 4700-16-22053
RC104-622
R21* R6*
RES,C,1/4W,10%,4 .7M CB4751 A-B 4700-16-47042
RC104-547
R22
RES,MF,1/8W,I%,464K MF55K-464K ASE 4701-03-4643
1
RF214-464
R23 R24
RES,MF,1/SW,I%,845K MF55K-845K ASE 4701-03-8453 2
RF214-845
R28 RES,C,1/4W,5%,560K
CFI/4-560K ASE 4700-15-5603 1
RC103-456
R29
RES, C, 1/4W, 5X, 7 . 5K CFI/4-7 .5K ASE 4700-15-7501 1
RC103-275
R31
RES,MF,1/SW,1%,4 .87K MF55K-4 .87K ASE 4701-03-4871
1
RF212-487
R32 R42R47
POT,IK,RP129-210 360SI02B CTS 4610-00-1102
3
R33 RES,MF,1/BW,1%,12
.1K MF55K-12 .IK ASE 4701-03-1212 1
RF213-121
WAVETEK
TITLE ASSEMBLYNO . REV
MOD BD,C316 1110-00-0751
I

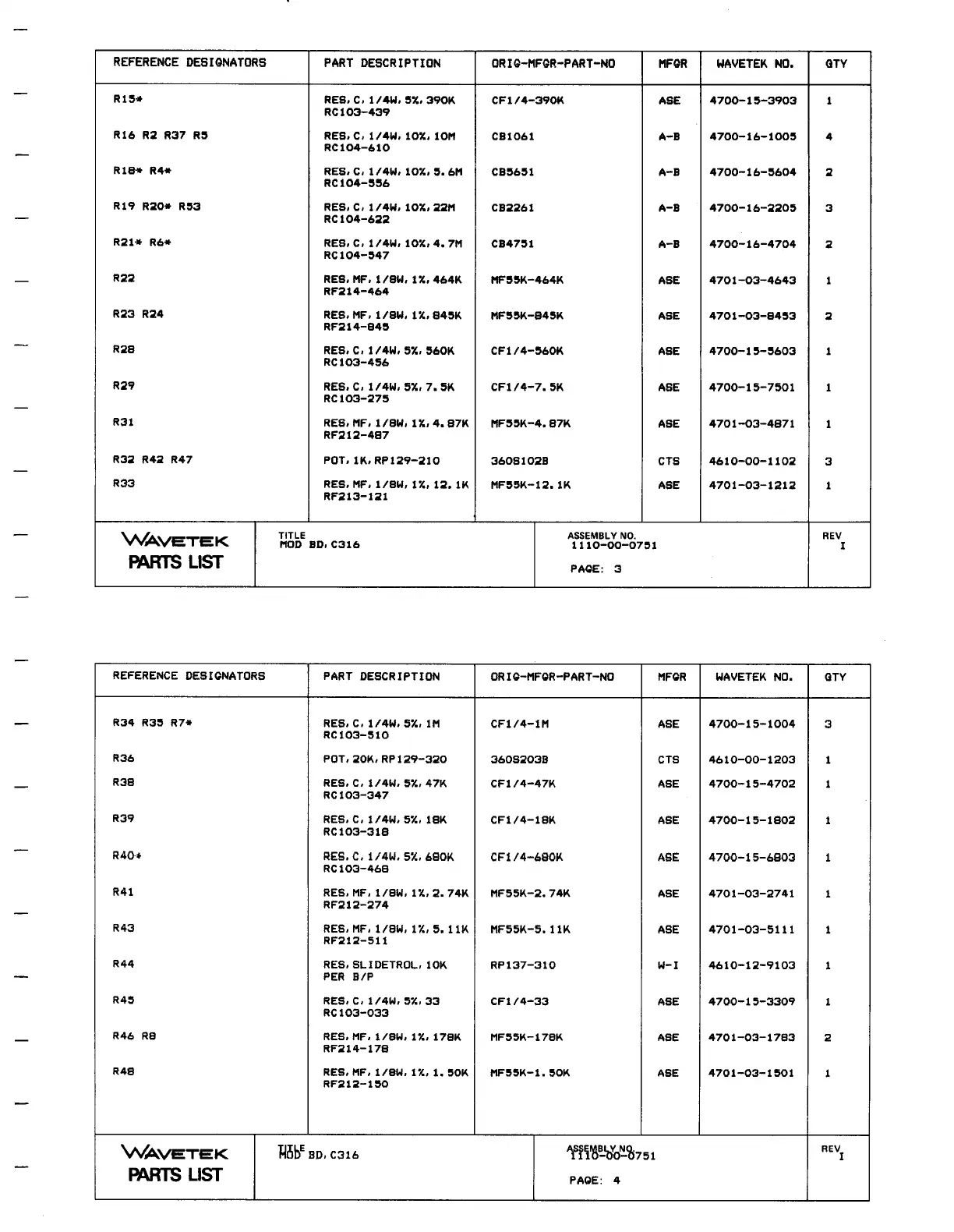

PARTS LIST
PAGE : 3
REFERENCE DESIGNATORS PART DESCRIPTION
ORIG-MFGR-PART-NO MFGR WAVETEK NO . OTY
R34R35 R7*
RES,C .1/4W,5%,IM CF1/4-iM ASE 4700-15-1004 3
RC103-510
R36 POT,20K,RP129-320
36OS203B CTS 4610-00-1203 1
R38
RES,C,1/4W,5%,47K CF1/4-47K ASE 4700-15-4702 1
RC103-347
R39 RES,C,1/4W,5%,ISK CFI/4-18K
ASE 4700-15-1802 1
RC103-318
R40s
RES .C,1/4W,5%,680K CF1/4-680K ASE
4700-15-6803 1
RC103-468
R41 RES,MF,1/BW,1%,2
.74K MF55K-2 .74K ASE 4701-03-2741 1
RF212-274
R43 RES,MF,1/BW,1%,5
.11K MF55K-5 .11K ABE 4701-03-5111 1
RF212-511
R44 RES,SLIDETROL,IOK RP137-310
W-I 4610-12-9103 1
PERB/P
R45 RES,C,1/4W .5%,33
CF1/4-33 ASE 4700-15-3309 1
RC103-033
R46 RS RES .MF,1/BW,I%,178K
MF55K-178K ASE 4701-03-1783 2
RF214-178
R48 RES,MF,1/8W .I%,1 .50K MF55K-1 .50K
ASE 4701-03-1501 1
RF212-150
WAVETEK
W
BD,
C316
l 310 8 OY ON 0751
REV,
PARTS LIST
PAGE :
4
