Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
18
Audi A1
1.6 TDI

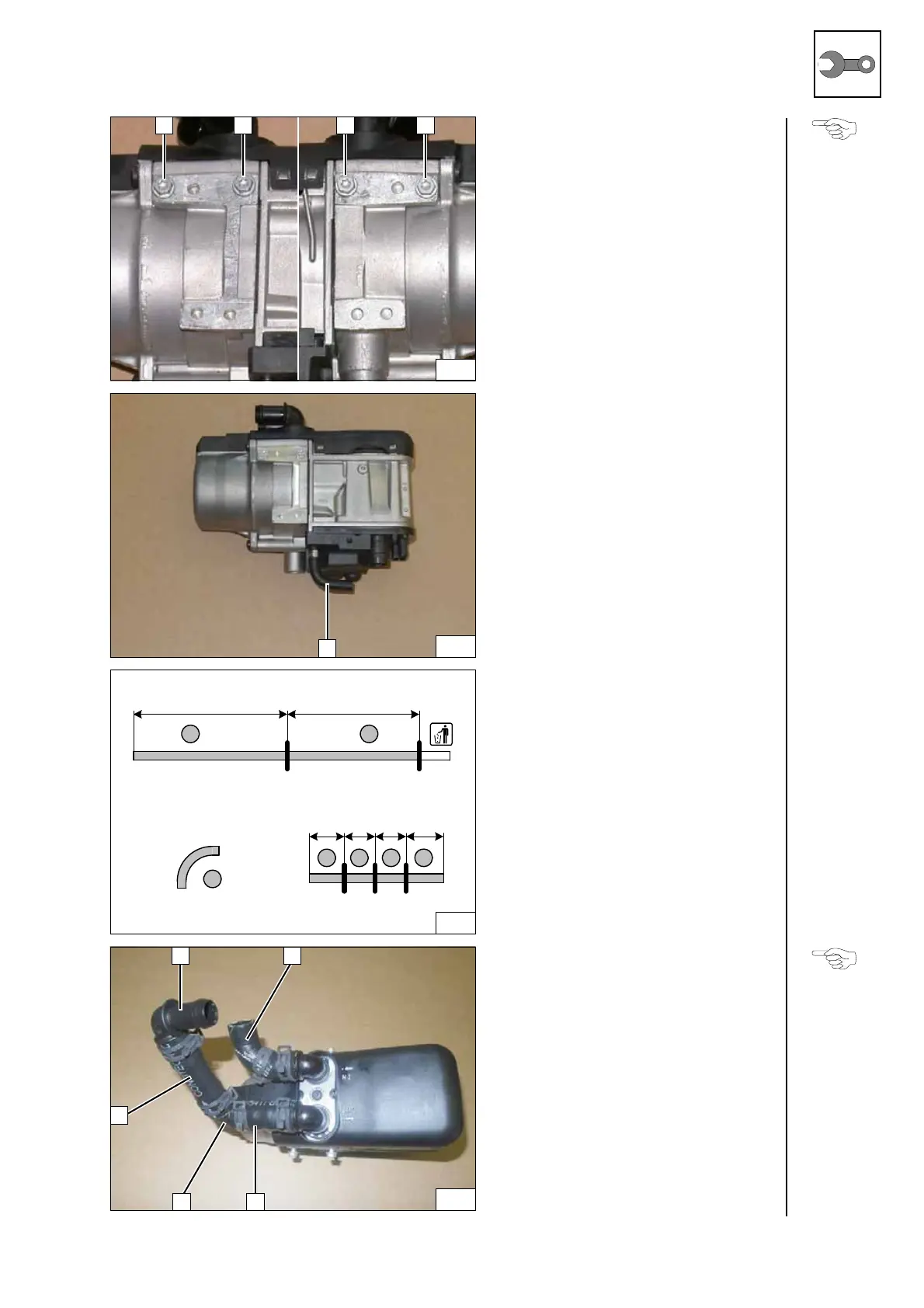

Screw 5x13 self-tapping bolts 2 [4x] into
existing holes by a maximum of 3 thread
turns.
Premount-
ing bolts
loosely
1 90° moulded hose, 10mm dia. clamp
Premounting
moulded
hose
A =800
B =60
C = 90°, 18mm dia.
D =60
E =60
F =90
G =840
Cutting
hoses to
length
All spring clips = 25mm dia.
1 90°, 18x18mm dia. connecting pipe
[2x]
Premount-
ing hoses
11
44
1 1
45
1
C
A G
B D
E F
46
1
47
1 C
D
E
