Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
22
Audi A1
Fuel

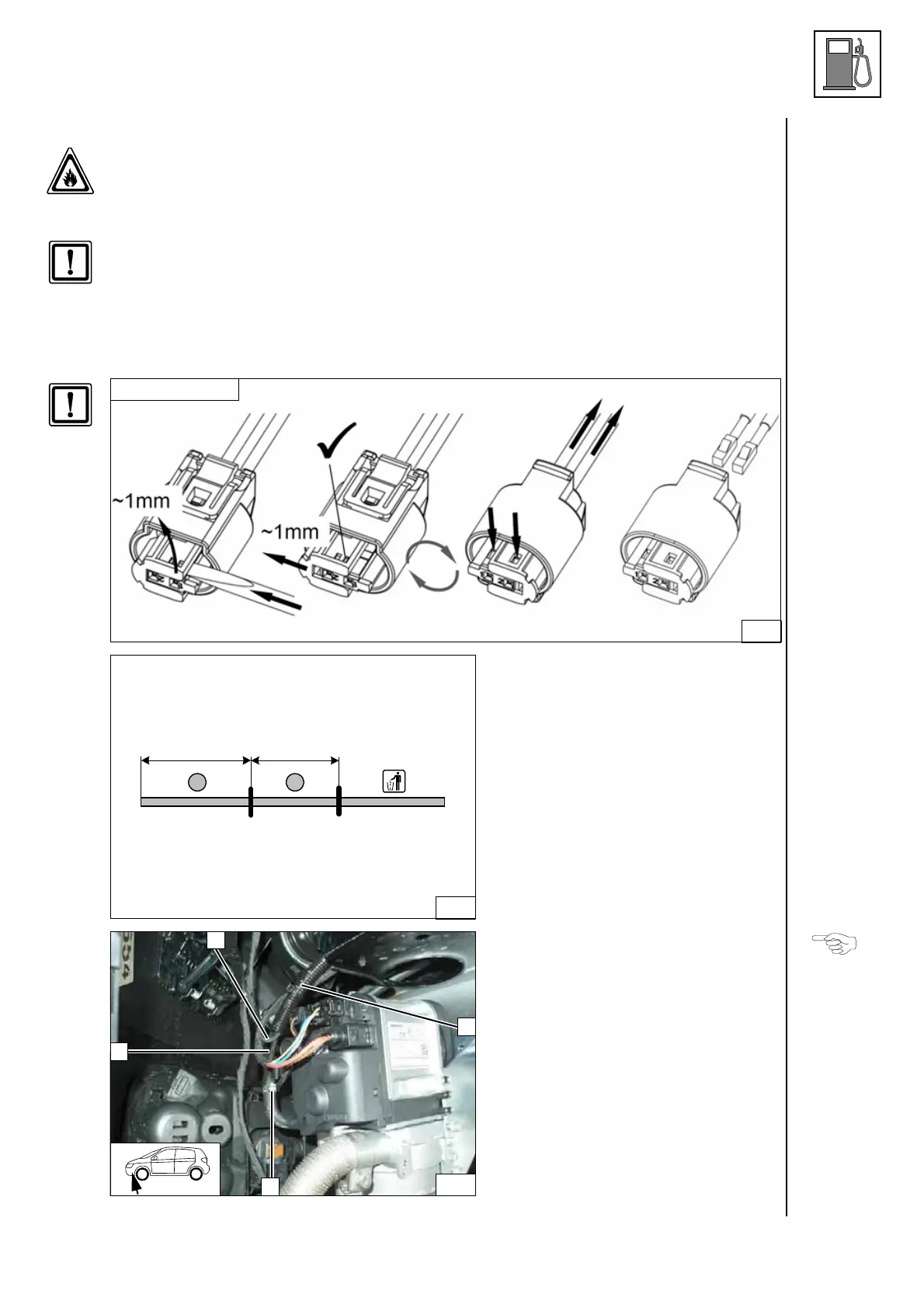

Open the vehicle's fuel tank cap, ventilate the tank and then re-close the tank lock.
Catch any fuel running off in an appropriate container.
Route fuel line and metering pump wiring harness so that they are protected against stone impact.
Unless specified otherwise, always fasten using cable ties.
Provide rub protection for fuel line and wiring harness in areas where there are sharp edges.
The fuel line and wiring harness are routed to the metering pump as shown in the wiring harness
routing diagram.
Dismantling
metering pump
connector
S =800
T =600
Cutting cor-
rugated
tube to
length
Pull wiring harness of metering pump 1
and fuel line
3 into corrugated tube S and
route in the engine compartment.
2 10 mm dia. clamp
Connect-
ing heater
