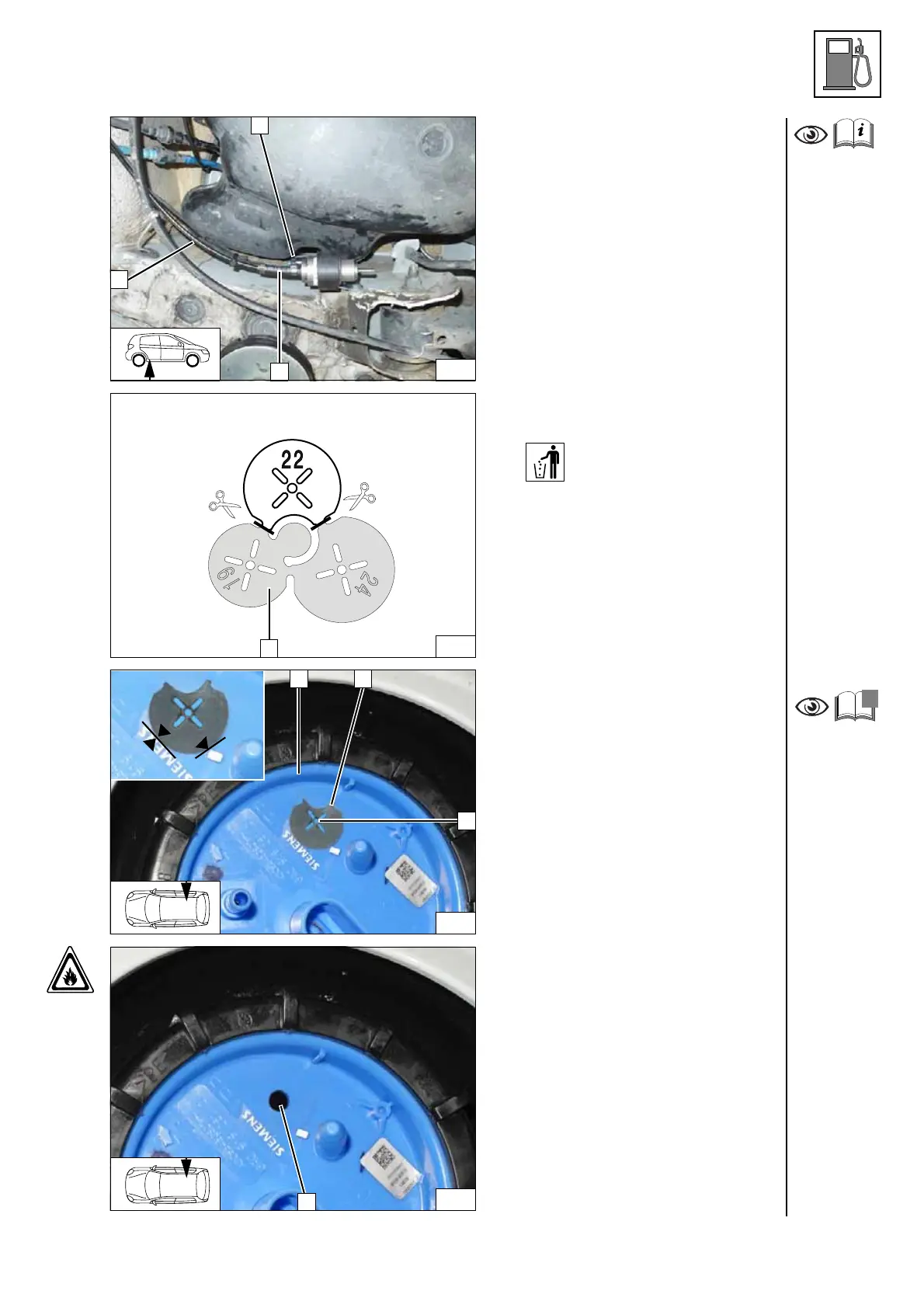

Audi A1
1 Metering pump wiring harness, con-
nector X7 mounted
2 Hose section, 10mm dia. clamp [2x]
3 Fuel line of heater
Connect-
ing meter-
ing pump
Installing FuelFix for Petrol
Vehicles
X =
Drilling tem-
plate
Version 1
Work steps F1 and F2.
1 Fuel tank sending unit
2 Position 22mm template at raised part
and lettering
3 Hole pattern
F
Copying
hole pattern
Work step F3.
1 Hole made with provided drill
Hole for
FuelFix
72
1
2
3
73
X
74
1
3
2
22
22
75
1
