Webasto thermo top evo Installation Documentation

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
57
Audi A1
Exhaust Part 2

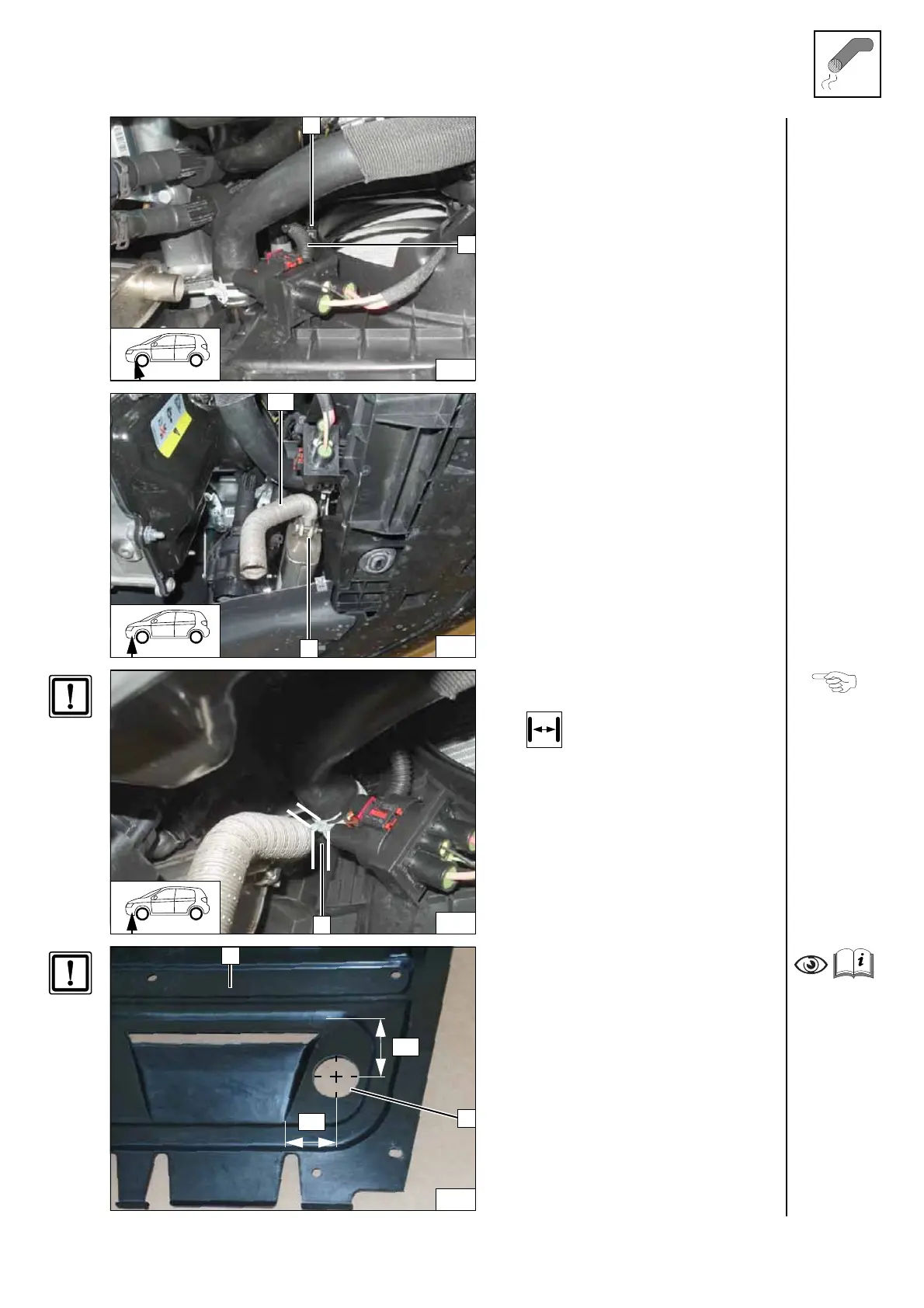

Route original vehicle wiring harness 2 as
shown and secure using clip-type cable tie
1 .
Routing
wiring har-
ness
1 Hose clamp
Installing
exhaust
pipe a2
Ensure sufficient distance from neighbour-
ing components, correct if necessary.
1 ≥ 15 mm
Aligning ex-
haust pipe
a2
Petrol
1
Underride protection
2 Hole (as per work step 1 of the instal-
lation instructions)
Hole in un-
derride pro-
tection
2
1
178
a2
1
179
180
1
181
1
2
40
60
