Webasto thermo top evo Installation Documentation

Audi A1
Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
12

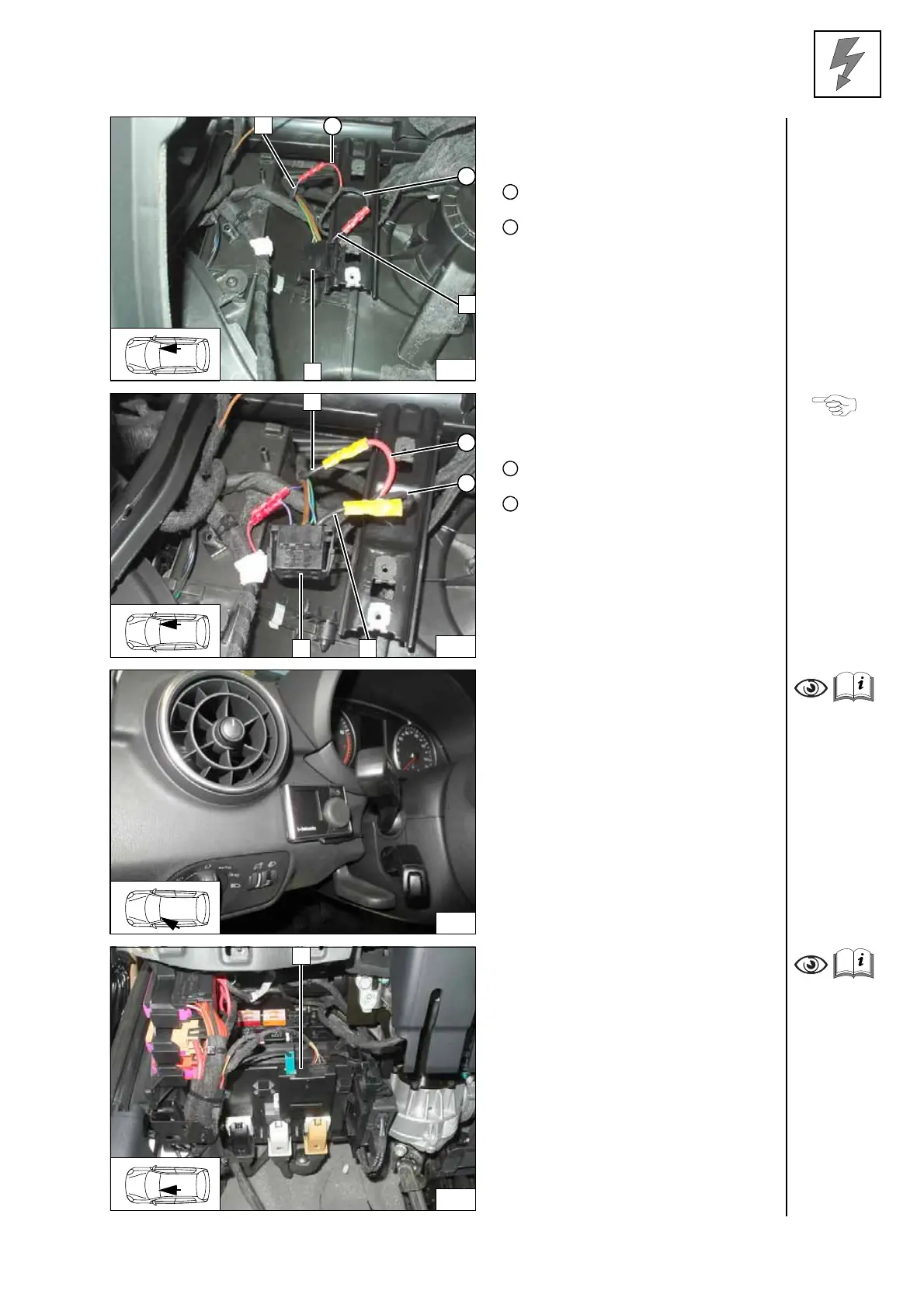

1 Violet/blue (vi/bl) wire from J255
2 Violet/blue (vi/bl) wire of connector
T6y, pin 6
3 6-pin connector T6y
Red (rt) wire of PWM control system
wiring harness
Black (sw) wire of PWM control sys-
tem wiring harness
Connect-
ing fan unit
/ PWM con-
trol
1 Black (sw) wire of fan relay
2 Black (sw) wire of connector T6y,
pin 2
3 6-pin connector T6y
Red (rt) wire of K1/87a, fan wiring har-
ness
Black (sw) wire of K1/30, fan wiring
harness
Connecting
fan unit/ fan
wiring har-
ness
MultiControl CAR Option
Installing
MultiControl
CAR
Remote Option (Telestart)
Fasten receiver 1 with double-sided adhe-
sive tape.
Installing
receiver
20
3
2
4
3
1
3
4
21
1
3
1
2
2
1
2
22
1
23
