Webasto thermo top evo Installation Documentation

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
14
Audi A1

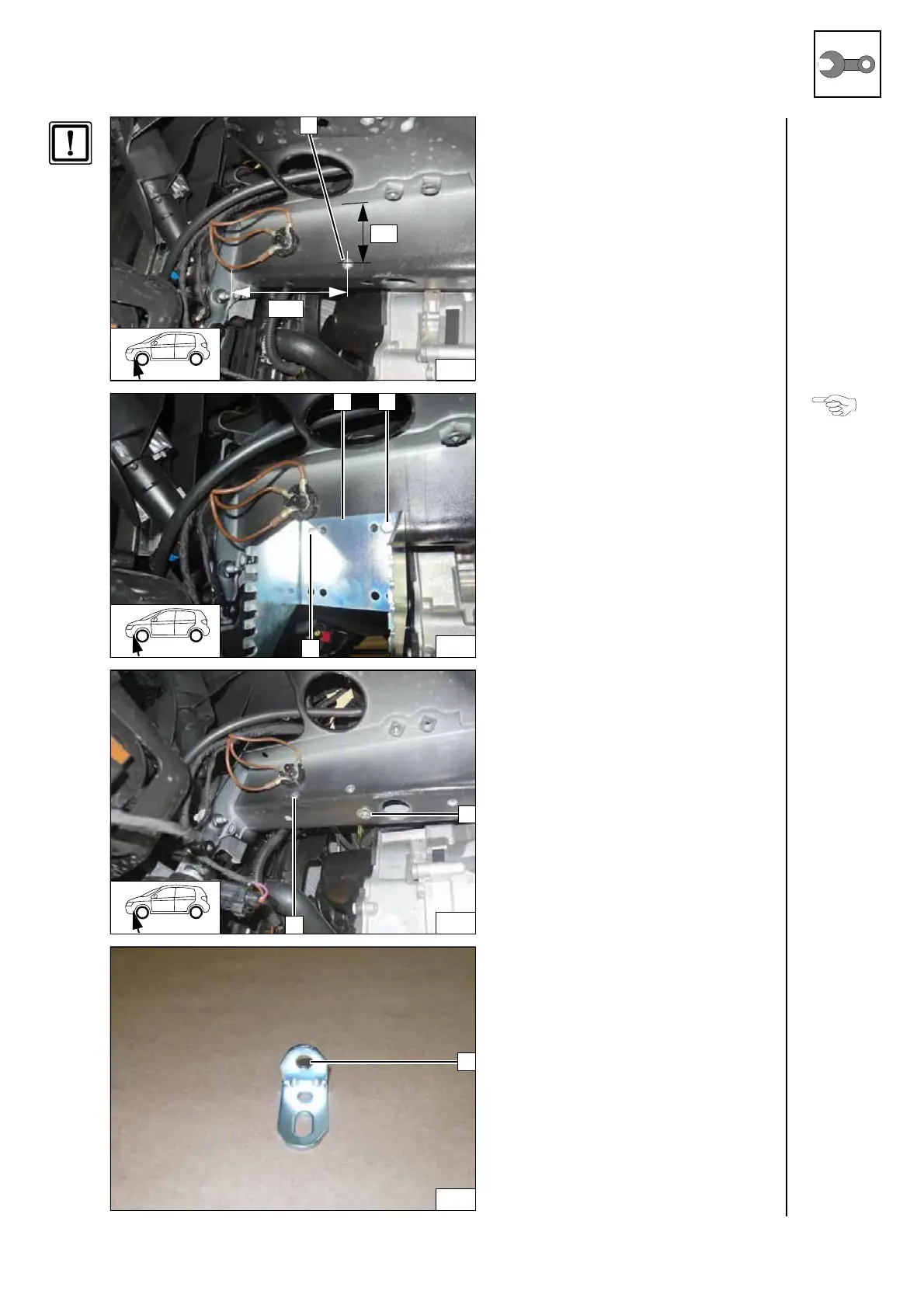

Preparing Installation Location
1 Copy hole pattern, 9.1mm dia. hole;
rivet nut
Installing rivet
nut
Install bracket 1.
2 M6x20 bolt
3 Copy hole pattern, hole
Copying
hole pattern
1 M10 rivet nut, original vehicle hole
2 9.1mm dia. hole; M6 rivet nut
Installing
rivet nuts
1
Drill out hole to 8.5 mm dia.
Drilling an-
gle bracket
28
1
65
175
29
1 2
3
30
1
2
31
1
