Webasto thermo top evo

Ident. No.: 1324052C_EN Status: 06.10.2016 © Webasto Thermo & Comfort SE
35
Audi A1

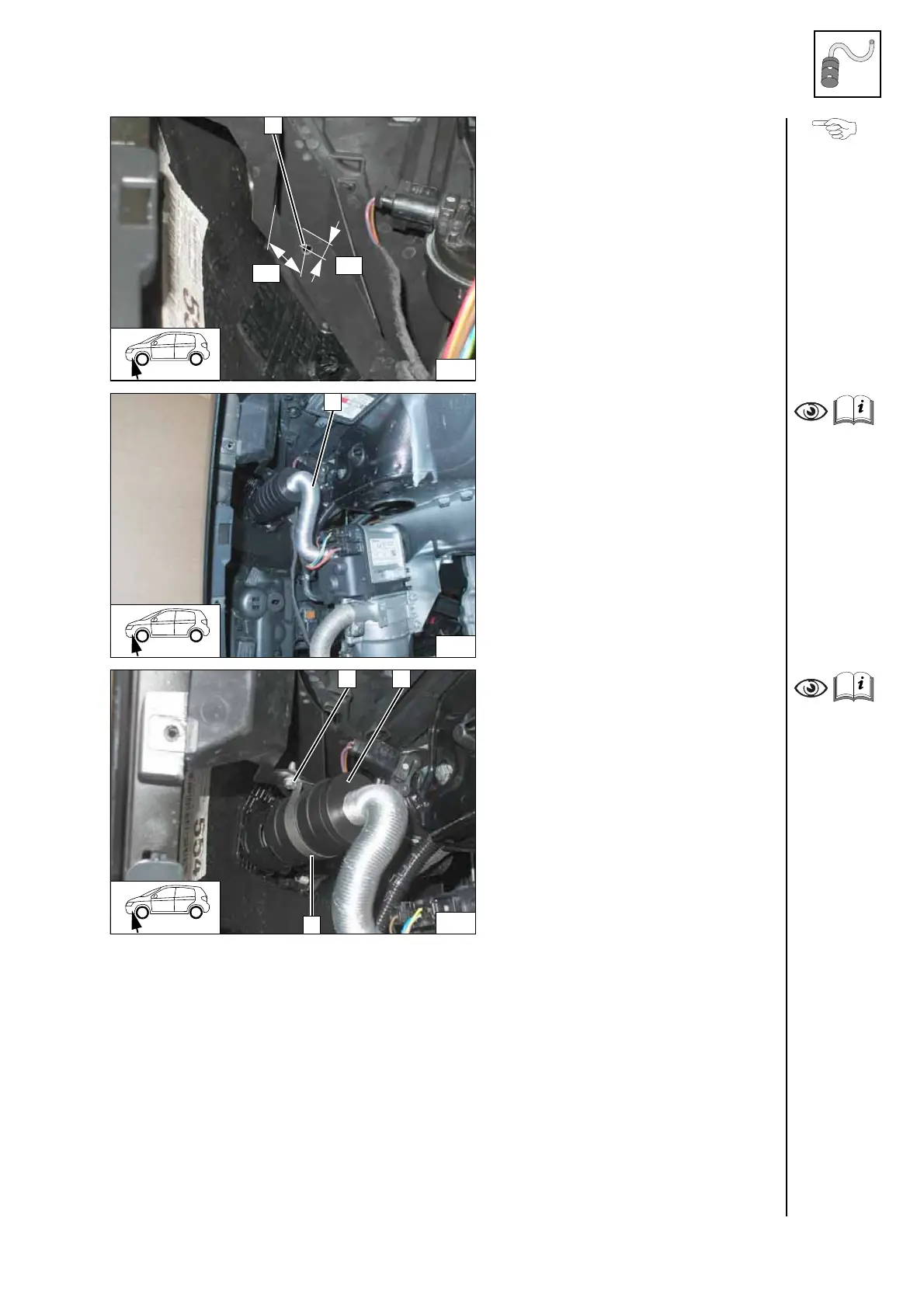

Combustion Air
1 Copy hole pattern, drill 7mm dia. hole
Copying
hole pattern
1 Combustion air pipe
Installing
combus-
tion air pipe
1 M5x16 bolt, flanged nut
2 Silencer
3 51mm dia. clamp
Installing
silencer
108
30
10
1
109
1
110
3
1 2
